Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHENHUA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1700*4500*1250MM
-
Weight:
-
1200KGS
-
Marketing Type:
-
New Product
-
PLC Brand:
-
without
-
Product name:
-
MQJ Flat bed Carton Box Die Cutter Label Flatbed Die cutting Machines
-
Model:
-
MQJ -1200 1400 1600 1800
-
Machine speed:
-
15 sheet/min
-
Die cutting type:
-
Platform or flat bed type
-
Popular size:
-
1200/1400/1600/1800 mm
-
Work table:
-
2 work table
-
Machine type:
-
Manual design
-
Application:
-
All kinds of carton box forming
-
Capacity:
-
small capacity industrial
-
Cutting materials:
-
Paper cardboard plastic leather pp sheet
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Germany, Peru, Indonesia, Mexico, Morocco, Romania
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
800 sheets/hour
-
Max. workable width:
-
1600mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHENHUA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1700*4500*1250MM
-
Weight:
-
1200KGS
-
Marketing Type:
-
New Product
-
PLC Brand:
-
without
-
Product name:
-
MQJ Flat bed Carton Box Die Cutter Label Flatbed Die cutting Machines
-
Model:
-
MQJ -1200 1400 1600 1800
-
Machine speed:
-
15 sheet/min
-
Die cutting type:
-
Platform or flat bed type
-
Popular size:
-
1200/1400/1600/1800 mm
-
Work table:
-
2 work table
-
Machine type:
-
Manual design
-
Application:
-
All kinds of carton box forming
-
Capacity:
-
small capacity industrial
-
Cutting materials:
-
Paper cardboard plastic leather pp sheet
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Germany, Peru, Indonesia, Mexico, Morocco, Romania
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE

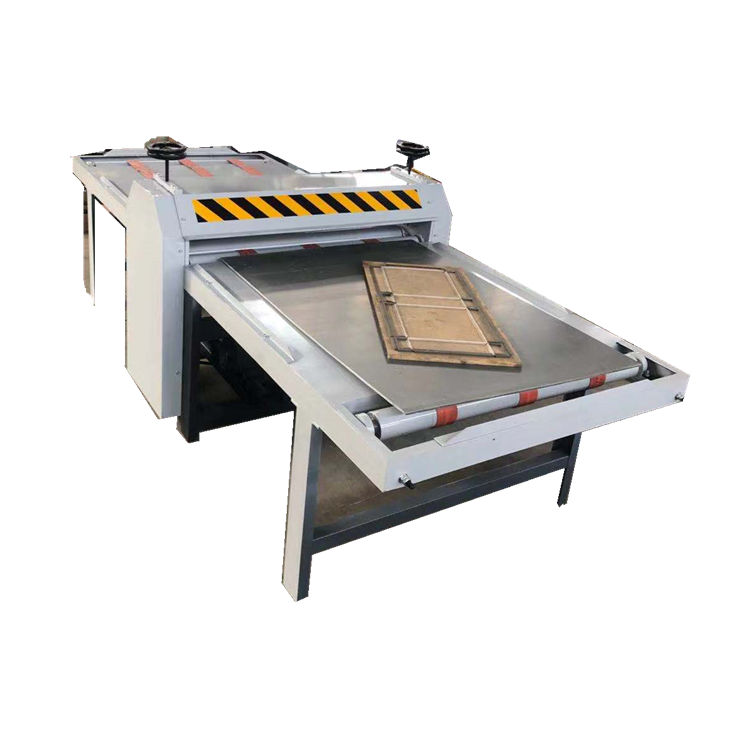

ZH-MQJ Large Semi-Automatic Die Cutting Machine Platen Die Cutter For Cardboard Boxes
Product Description
ZHENHUA-platform die cutting machine is the renew equipment to make the special upscale carton, which can slice the side, slice the corner, hurtle the bore, open the slot, press the trace and other processes. It can make all the above-mentioned processes into one integral whole process and merge once mould cutting into the type. The quality of slicing the mould is stable, the size is accurate, the side is hairless, It is clean and tidy and can be operated safely and conveniently.
Assembled design die cutting machine for corrugated carton boxes
Specification
|
Model No.
|
Speed
|
Work Size（mm）
|
Power
|
Weight
|
Overall Dimensions(mm)（WXLXH）
|
|
MQJ-1200
|
0-15m/min
|
1000x1200
|
1.5kw
|
600kg
|
1500×3000×1250
|
|
MQJ-1400
|
0-15m/min
|
1200x1400
|
1.5kw
|
650kg
|
1700×4500×1250
|
|
MQJ-1600
|
0-15m/min
|
1300x1500
|
2.2kw
|
700kg
|
1900×4500×1250
|
|
MQJ-1800
|
0-15m/min
|
1600x2000
|
2.2kw
|
750kg
|
2100×5000×1250
|
|
MQJ-2000
|
0-15m/min
|
1800*2000
|
2.2kw
|
1000kg
|
2300x5000x1300
|
|
MQJ-2500
|
0-15m/min
|
2000*2500
|
3.0kw
|
1300kg
|
2800x6000x1350
|
Packing & Delivery
To better ensure the safety of corrugaed carton box die cutting and creasing machine, professional, environmentally friendly, convenient and efficient packaging services will be provided.
For Full container loading with Plastic Film. And Mixed loading container with Wooden Case.
