Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Product name:
-
split core transformer
-
Color:
-
Black
-
Standard:
-
GB1094-1996
-
Certification:
-
ISO
-
Type:
-
Dry-type
-
Frequency:
-
50Hz/60Hz
-
insulation Rating:
-
: Class B
Quick Details
-
Use:
-
Power
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Product name:
-
split core transformer
-
Color:
-
Black
-
Standard:
-
GB1094-1996
-
Certification:
-
ISO
-
Type:
-
Dry-type
-
Frequency:
-
50Hz/60Hz
-
insulation Rating:
-
: Class B

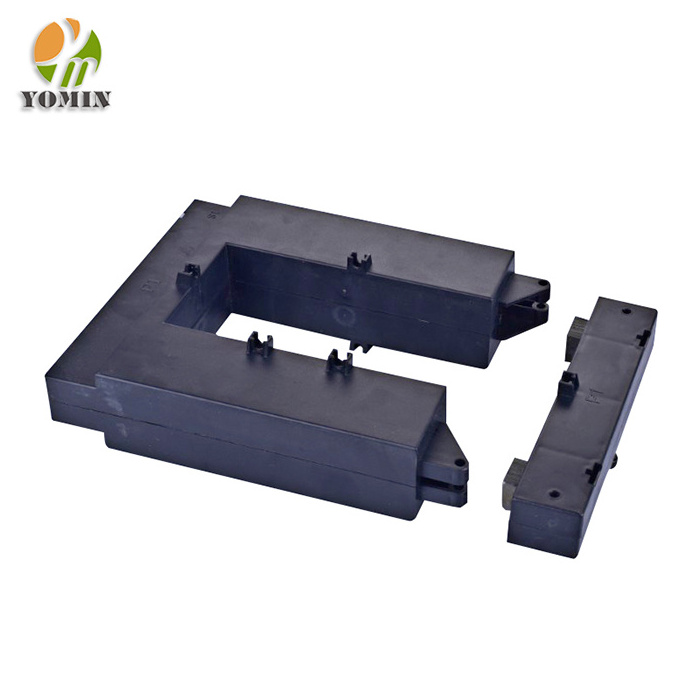

DP high quality split core current transformer class 0.1
|
The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs. |
|
|
The main features of DP transformers are:
|
Split core current transformers DP series:
|
Primary current:
Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: |
100A-5000A
5A, 1A IEC44-1, BS7626 0.72/3kV 50/60Hz 1VA-30VA 0.5, 1.0, 3.0 Ith=100×In FS<5 |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
Weight(kg)
|
|
|
DP-23
|
20
|
30
|
51
|
89
|
111
|
34
|
47
|
40
|
32
|
0.75
|
|
|
DP-58
|
50
|
80
|
78
|
114
|
145
|
32
|
32
|
32
|
33
|
0.90
|
|
|
DP-88
|
80
|
80
|
108
|
144
|
145
|
32
|
32
|
32
|
33
|
1.05
|
|
|
DP-812
|
80
|
120
|
108
|
144
|
185
|
32
|
32
|
32
|
33
|
1.25
|
|
|
DP-816
|
80
|
160
|
120
|
184
|
245
|
52
|
52
|
52
|
38
|
4.3
|
|
