Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TONGOU
-
Model Number:
-
TO-Q-SY2-163JWT
-
Rated Frequency (Hz):
-
50/60Hz
-
APP Name:
-
Tuya
-
Warranty:
-
One Year
-
Certificaton:
-
CE
-
Over-under protection:
-
220-265V
-
Temperature protection:
-
40-100C
-
Current:
-
1-63A adjustable
-
Power protection:
-
1-26KW
Quick Details
-
Breaking Capacity:
-
6kA
-
Rated Voltage:
-
220V
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TONGOU
-
Model Number:
-
TO-Q-SY2-163JWT
-
Rated Frequency (Hz):
-
50/60Hz
-
APP Name:
-
Tuya
-
Warranty:
-
One Year
-
Certificaton:
-
CE
-
Over-under protection:
-
220-265V
-
Temperature protection:
-
40-100C
-
Current:
-
1-63A adjustable
-
Power protection:
-
1-26KW
Description:
We can provide API service for our products.
The cost is USD 2/ 5 years/ pc.
| Component Type | TO-Q-SY2 | High Temperature Protection Range | 40℃-100℃ |
| Protocol | WiFi | High Power Protection Range | 1KW-26KW |
| Control type | Remote Control Manual | Over-current Protection Range | 1A-63A |
| Customization | Lora,SigMesh,rs485,RJ45 | Under-voltage Protection Range | 76V-240V |
| Rated Operating Protection Range | 76V-265V | Over-voltage Protection Range |
220V~265V |
Feature:

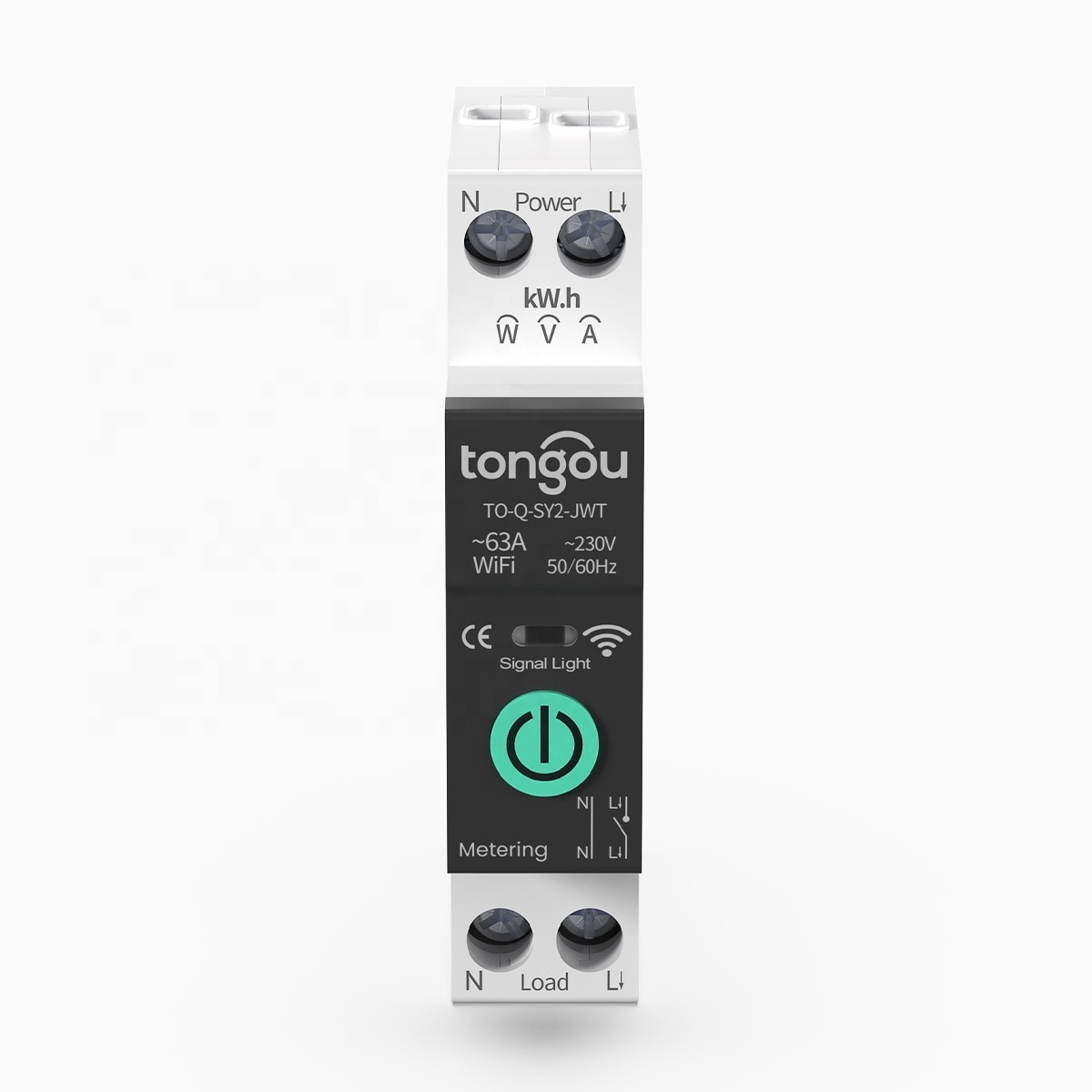

This item is a WiFi MCB Circuit Breaker.With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection, The rated current is adjustable in APP, 1-63A
Remote control at anytime from anywhere by TUYA APP / Smart Life APP
Smart Life app on mobile ,no distance limit
Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google assistant
Parameter:
Working voltage : AC90-280V, 50 / 60Hz
Wireless type : Wi-Fi 2.4GHz
Support system : Android \ iOS
Rate Current : (1-63A)adjustable
Over-voltage protection : 220-265V
Unde-voltage protection : 76-240V
Temperature protection : 40-100℃
Over-Power protection : 1-26KW
Specification:
Rated operating voltage range: 145V-295V,Over-undervoltage protection function is not available for 110V
