Quick Details
-
Product name:
-
Earthing switch
-
central distance between poles:
-
280, 300, 350
-
Standards:
-
GB1985-2004, IEC62271-102:2002
-
Application:
-
High voltage switchgear
-
Type:
-
Motor
Quick Details
-
Brand Name:
-
Liyond
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
JN15-24-D31.5-210
-
Product name:
-
Earthing switch
-
central distance between poles:
-
280, 300, 350
-
Standards:
-
GB1985-2004, IEC62271-102:2002
-
Application:
-
High voltage switchgear
-
Type:
-
Motor

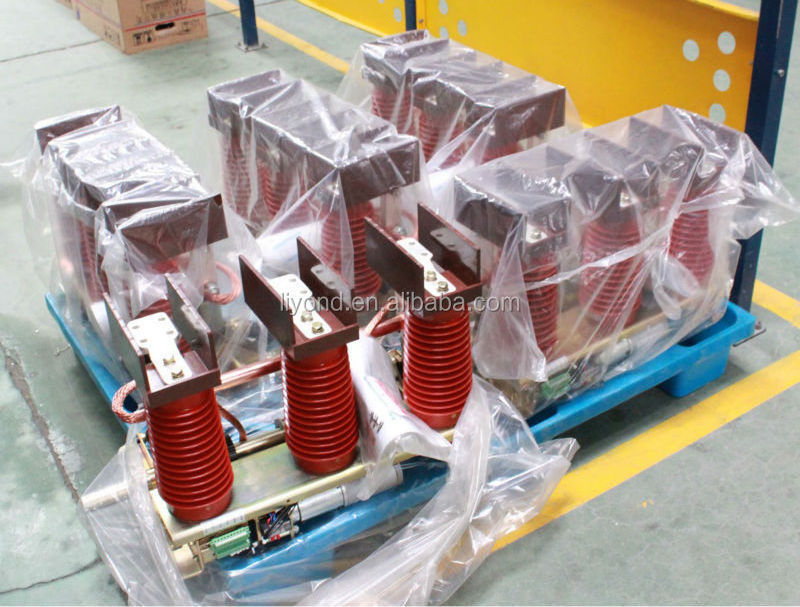

CE certified earth knife 210mm pitch electric power ground switch for indoor switchgear 24kV
Specification:
JN15-24/D31.5 electric motor-operated earth switch is a new product that independently developed by our company following the JN15-12/D31.5 electric motor-operated earth. It could carry out the closing capacity test in motor-operated drive with reliable “fail-safe interlock”.
1.Product name: JN15-24-D31.5-210 Electrical earthing switch
2.Standards: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC62271-102: 2002.
3.Application: KYN61-40.5 HV switchgear and various types HV switchgear
4.Main function: used for earthing protection
5.Altitude: ≤1000m
6.Ambient temperature: -10°C~+40°C
7.Earthquake intensity: ≤8 degree
8.Applicable occasion should free from inflammables, explosives, corrosives and severe vibration
Features
1.Simple installation, together with earthing switch body as a whole, does not change the original earthing switch install structure.
2.It can be switched freely from manual operation and electric motor-driving operation.
3 Safe and reliable, having anti-blocking function, which could realize the control and protectionto the motor.
Drawing
|
Earthing switch production line
