operating load:1800kg
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5300x1900x2830
-
Machine Weight:
-
1800 kg
-
Product name:
-
1.8ton loader front end loader price wheel loader Rated Load 1.8t
-
Operate weight(kg):
-
3800
-
Driving Modem):
-
Four-wheel drive
-
Max. Breakout Force(KN):
-
32
-
Rated load:
-
1800
-
Working Pump Type:
-
Gear pump
-
Drive mode:
-
Hydrostatic four-wheel drive
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
60 KW
-
Brand Name:
-
YF
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5300x1900x2830
-
Machine Weight:
-
1800 kg
-
Product name:
-
1.8ton loader front end loader price wheel loader Rated Load 1.8t
-
Operate weight(kg):
-
3800
-
Driving Modem):
-
Four-wheel drive
-
Max. Breakout Force(KN):
-
32
-
Rated load:
-
1800
-
Working Pump Type:
-
Gear pump
-
Drive mode:
-
Hydrostatic four-wheel drive
1.8ton loader front end loader price wheel loader 1.2ton,1.5ton,2.0ton....More types!
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6.Hydraulic mechanical transmission, can make full use of engine power
7.Using four wheel drive, low wide-based off-road tires
8.A single pipeline hydraulic brake system up for wheel brake shoe

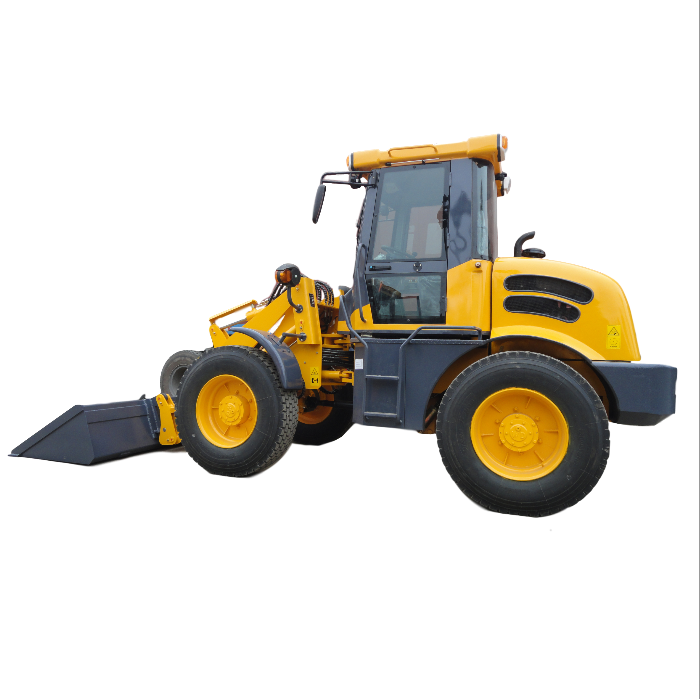

YFL18 mini loader 1.8ton wheel loader
Product Description
|
THE TECHNICAL PARAMETERS OF YFL18 CE CERTIFICATE MINI WHEEL LOADER |
||
|
Bucket Capacity(m³) |
0.8 |
|
|
Operating Weight(kg) |
3800 |
|
|
Bucket Width(mm) |
1900 |
|
|
Rated Load(kg) |
1800 |
|
|
Driving Mode |
Four-wheel drive |
|
|
Overall Dimensions (mm)(L*W*H) |
5300x1900x2830 |
|
|
Max. Breakout Force(KN) |
32 |
|
|
Forward Speed 1st(km/h) |
0-12 |
|
|
Forward Speed 2nd(km/h) |
0-25 |
|
|
Reverse Speed (km/h) |
0-25 |
|
|
Max. Dumping Height(mm) |
2650 |
|
|
Optional Max. Dumping Height(mm) |
2900 or 3100 |
|
|
Max. Dumping Reach (mm) |
850 |
|
|
Min. Turning Radius(mm) |
3890 |
|
|
Full Bucket Lifting Time (s) |
4.5 |
|
|
Total Hydraulic Cycle Time (s) |
9 |
|
|
Tread Width (mm) |
220 |
|
|
Wheel Base (mm) |
1580 |
|
|
Min. Clearance Over Ground (mm) |
230 |
|
|
MAX. Tilt Angel(°) |
30 |
|
|
Diesel Engine |
Brand |
YUNNEI Engine |
|
Optional brand |
Euro3 and EPA XINCHAI 36.8kw A498BT1Engine or Tier 3/4 engine |
|
|
Type |
In-line arrangement,Four-stroke,Water cooled, 4-cylinder diesel engine |
|
|
Rated Output(KW) |
50 |
|
|
Engine starting mode |
Electric |
|
|
Transmission |
Type |
Fixed-spindle power shift with converter |
|
Drive axle |
Type |
Wheel reduction drive axle |
|
Rear Axle Oscillation |
Single stage planetary reduction |
|
|
Oscillating Angle Of Rear Axle |
13° |
|
|
Tire |
Model |
23.5-16 or 23.5/70-16 Wide Tyre |
|
Optional model |
14-17.5 Wide Tyre or 23.5/70-16 Agriculture Tyre 295/80R22.5 or 315/80R22.5 Truck Tyre |
|
|
Steering System |
Working Pressure (MPa) |
10 |
|
Max. Steering Angle (°) |
35 |
|
|
Hydraulic System |
Pressure Of Tire (MPa) |
2.5-3.5 |
|
Working Pump Type |
Gear pump |
|
|
Working Pressure (MPa) |
16 |
|
|
Brake System |
Service Brake |
Disc brakes on 4 wheels |
|
Parking Brake |
Hand operated disc brake |
|
|
Package |
1 unit with cab packed into 20GP,3 units with cab packed into 40HQ. |
|
|
Warranty |
12 months after delivery or 1500 work hours(whichever comes first) |
|
|
Delivery time |
15-25 days after 30% down payment. |
|
Performance Paramete
lowest price best quality china mini loader 1.8ton wheel loader
A loader has Multifunction , with a quick hitch system,the mini wheel loader can change various attachments quickly and eaily.
Attachments : backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower,leveler,mixer, lawn aerator,trench filler, trencher,grapple,,auger,stonr bucket, auger levers,standard bucket,trailer system, and so on.
Our Services
1. Original / OEM / After Market quality and competitive price .
2.Flexible payment terms.
3.Quick delivery time.
4.Exclusive agent accepted.
5.One-stop purchasing service.
6.Have cooperated with many importers in us for many years.
Payment
T/T WESTERN UNION L/C Trade Assurance
Trade Assurance which granted by Aliababa.com.
Protect your payment to make sure that we deliver on time and manufacture quality products as
required.
Packaging & Shipping
Packing: The excavator are in, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
