Quick Details
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
430*430*470mm
-
Weight:
-
55 KG
-
Product name:
-
Test Sieve Shaker
-
Certificate:
-
ISO 9001
-
The regular time:
-
999s
-
Outside dimension:
-
360*300*(360+56*N)mm
-
Vibrating frequency:
-
1440n/min
-
Power supply:
-
220V 50Hz
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Particle Size Analysis
-
Material:
-
SUS 304 Stainless Steel
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
430*430*470mm
-
Weight:
-
55 KG
-
Product name:
-
Test Sieve Shaker
-
Certificate:
-
ISO 9001
-
The regular time:
-
999s
-
Outside dimension:
-
360*300*(360+56*N)mm
-
Vibrating frequency:
-
1440n/min
-
Power supply:
-
220V 50Hz
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Particle Size Analysis
-
Material:
-
SUS 304 Stainless Steel
Product Description

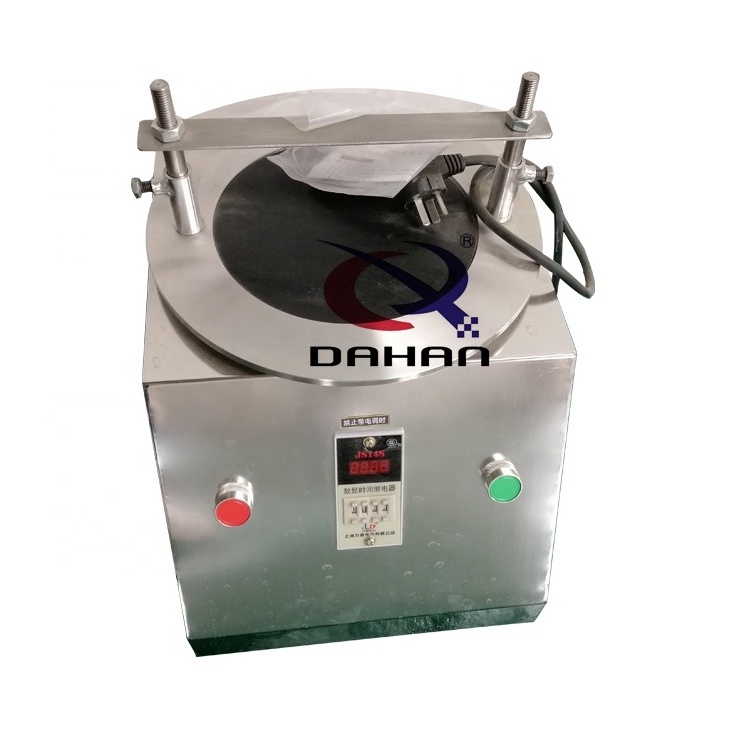

DH-400T
DH-400T test sieve shaker developed by Xinxiang Dahan Vibrating Machinery Co.LTD, is a regular automatic shutdoen, guarantee the test repeatability and fully functional operation simple mechanical analysis apparatus.Can be a kind of granular material precision at the same time to separate2~8period of particles. Can be used for slurry fineness and content of impurities of the analysis,the noise is small, light weight, the platform operation without fixed.
Specification
|
No
|
Name
|
|
Unit
|
Parameter
|
|
|
1
|
Sieve diameter
|
|
mm
|
Φ300
|
|
|
2
|
The quantity of layer
|
|
s
|
1-8
|
|
|
3
|
Vibrating frequency
|
|
n/min
|
1440
|
|
|
4
|
Vibrating amplitude
|
|
mm
|
1-4
|
|
|
5
|
Exciting force
|
|
KN
|
3
|
|
|
6
|
Chassis level
|
|
mm
|
≤0.6
|
|
|
7 |
Motor |
Power
|
kw
|
0.15
|
|
|
|
|
Power supply
|
V/Hz
|
220/50
|
|
|
8
|
Outside dimension
|
|
mm
|
460*400*（460+N*56）
|
|
|
9
|
Timing
|
|
s
|
999
|
|
Application
It is widely used in food, medicine, chemical industry, abrasive, pigment, mining, metallurgy, geology, ceramics, national defense and other industries, scientific research institutions, laboratories, laboratories, production control and so on. Used for testing
of solids, powders, pastes, etc. Screening, classification, particle size analysis, impurity content analysis, etc.
of solids, powders, pastes, etc. Screening, classification, particle size analysis, impurity content analysis, etc.
Certification
Packing & Delivery
We use standard wooden cases and wrap the inside with foam paper. If you have any special needs, please let us know in advance.
