Quick Details
-
Dimension(L*W*H):
-
2300*1200*1900mm
-
Weight:
-
2600 KG
-
Drill Mast:
-
2m
-
Chassis:
-
Rubber track
-
Drilling dia.:
-
138-203mm
-
Drilling depth:
-
160m
-
One-time push length:
-
2m
-
Climbing ability:
-
30°
-
Drill rod dia.:
-
76mm/89mm
-
Drill rod length:
-
1m/1.5m/2m
-
Lifting force:
-
12T
-
Rotary speed:
-
50-110rpm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2300*1200*1900mm
-
Weight:
-
2600 KG
-
Drill Mast:
-
2m
-
Chassis:
-
Rubber track
-
Drilling dia.:
-
138-203mm
-
Drilling depth:
-
160m
-
One-time push length:
-
2m
-
Climbing ability:
-
30°
-
Drill rod dia.:
-
76mm/89mm
-
Drill rod length:
-
1m/1.5m/2m
-
Lifting force:
-
12T
-
Rotary speed:
-
50-110rpm
Note
The listing price just deposit without freight fee and drill tool,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list

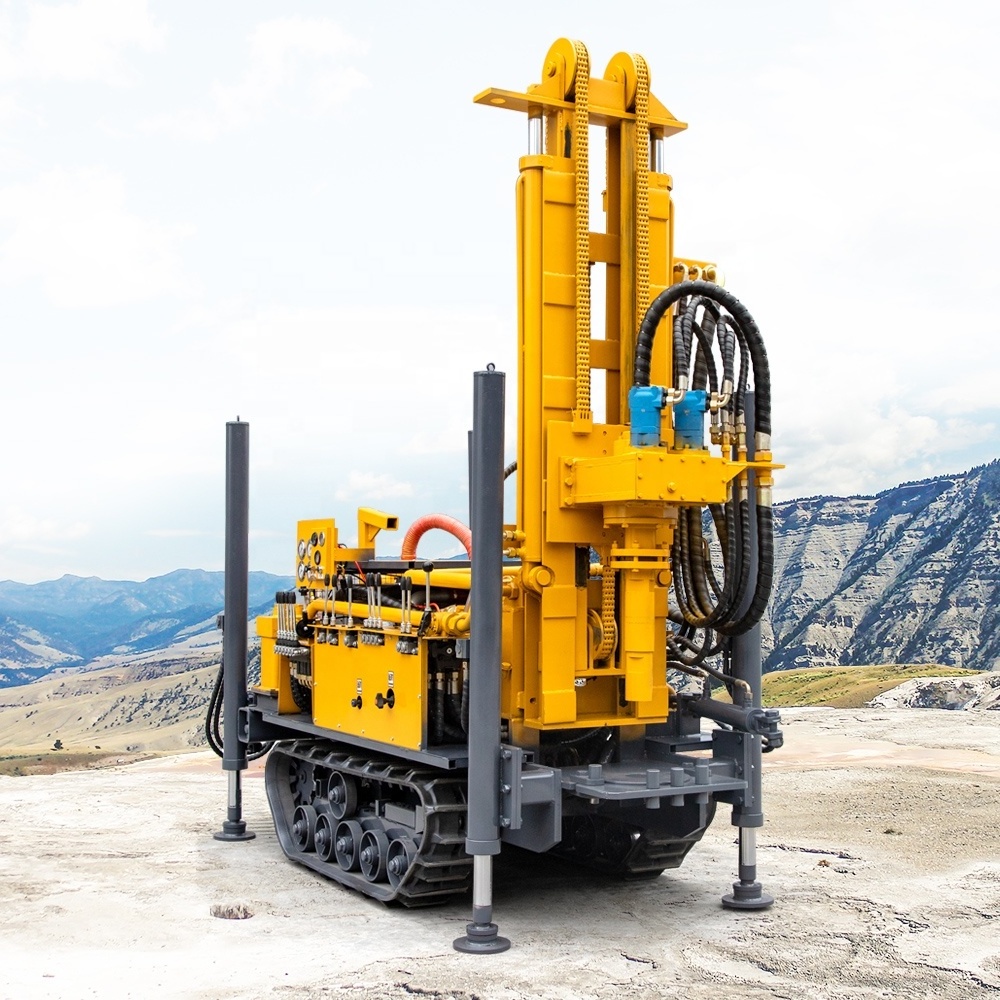

Easy operation hydraulic crawler mounted borehole well drilling water drilling machine water well drilling rig machine
Products Description
Pneumatic water well borehole drilling rig machine
pneumatic dth drilling rig
mainly drilling rock must connect with air compressor
. it has fast drilling speed . pneumatic dth drilling rig
can drill 20-40m per hour
. high drilling effective .
the engine it is 73kw
,more powerful .
pneumatic water borehole drilling rig
it has 4 high hydraulic leg
which
can lifting 1.6m height can easy loading on the truck .
air water well drilling rig machine is
rubber crawler
.
hydraulic pump and valve both use import brand .
Pneumatic water well borehole drilling rig tower height is 2m .
18ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch .
Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements .It can add mud pump and foam pump .
We have enough experience for South America ,Southeast Asia,North America ,Africa etc .
Product Paramenters
|
Main technical parameters
|
|
|
|
|||
|
Model
|
HQZ160L
|
HQZ180L
|
HQZ220L
|
|||
|
Drilling dia.（mm）
|
138-203
|
130-254
|
130-254
|
|||
|
Drilling depth（m）
|
160
|
180
|
220
|
|||
|
One-time push length（m）
|
2
|
3.6
|
3.6
|
|||
|
Climbing ability(°)
|
30
|
30
|
30
|
|||
|
Engine power
|
73kw
|
42kw
|
60kw
|
|||
|
Drill rod dia.（mm）
|
76/89
|
76/89
|
76/89
|
|||
|
Drill rod length（m）
|
1.0/1.5/2.0
|
1.5/2.0/3.0
|
1.5/2.0/3.0
|
|||
|
Rotary speed（rpm）
|
50-110
|
40-65
|
45-65
|
|||
|
Rotary torque（N.m)
|
7800
|
3500-3800
|
4000-4600
|
|||
|
Dimension（mm）
|
2300*1200*1900
|
3500*1700*2250
|
3800*1700*2250
|
|||
|
Overall weight（T）
|
2.6
|
4.5
|
4.5
|
|||
Details Images
Easy operation hydraulic drilling machine small rotary table crawler mounted water well drilling rig machine
Wide range of use
Easy operation hydraulic drilling machine small rotary table crawler mounted water well drilling rig machine
