Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NH
-
Model Number:
-
NHD-8101.8000
-
Warranty:
-
12 Months
-
Product Name:
-
Factory Direct Sale Low Price Automatic Car Auto Headlight Beam Tester
-
Function:
-
Auto test machine
-
Measurement range:
-
Luminous intensity: 0~120,000cd
-
Application:
-
Car Inspection
-
Special Features:
-
High quality
-
Central Height of Headlight:
-
50cm~130cm
-
Resolution:
-
Light Intensity of High Beam: ±100cd
-
Indication Error:
-
Light Intensity of High Beam:±12%
-
Keywords:
-
Headlight test
-
Certification:
-
CE
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
220V
-
Applicable Models:
-
Support 110+ cars brands
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NH
-
Model Number:
-
NHD-8101.8000
-
Warranty:
-
12 Months
-
Product Name:
-
Factory Direct Sale Low Price Automatic Car Auto Headlight Beam Tester
-
Function:
-
Auto test machine
-
Measurement range:
-
Luminous intensity: 0~120,000cd
-
Application:
-
Car Inspection
-
Special Features:
-
High quality
-
Central Height of Headlight:
-
50cm~130cm
-
Resolution:
-
Light Intensity of High Beam: ±100cd
-
Indication Error:
-
Light Intensity of High Beam:±12%
-
Keywords:
-
Headlight test
-
Certification:
-
CE

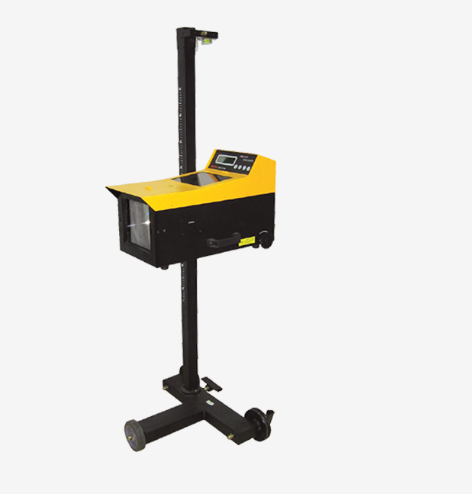

Name: Factory Direct Sale Low Price Automatic Car Auto Headlight Beam Tester
The main function:
It is used to detect and adjust the luminous intensity, lamp height and optical axis offset of headlights of automobiles, motorcycles and other motor vehicles.
Equipped with Chinese LCD display interface, equipped with standard RS232 communication interface and analog data output interface, laser positioning, low power consumption and can work with battery power (some functions of NHD-8000 are optional).
It is suitable for manual detection and adjustment of the beam irradiation position of motor vehicle headlights on simple inspection lines of auto repair shops, auto repair and maintenance units, and 3S/4S shops.
Parameter
|
Central Height of Headlight: |
50cm~130cm |
|
|
Light Intensity: |
0~60,000cd (standard) |
|
|
0~120,000cd (maximum) |
||
|
Resolution: |
Light Intensity of High Beam: ±100cd |
|
|
Indication Error: |
Light Intensity of High Beam:±12% |
|
|
Measuring Distance: |
30~50cm |
|
|
Power Consumption: |
<0.5W(for complete machine) |
|
|
Dimension: |
590mm(W) × 1810mm(H) × 590mm(D) |
|
|
Net Weight: |
30kg |
|
|
Environmental Temperature: |
5~40°C |
|
| Relative Humidity: | Less than 95% | |
| Atmosphere Pressure: | 70.0~106.0KPa | |
| Power Supply: |
1unit of DC9V(Cigar Lighter or Storage Battery can be used ) If AC power is used ,an inverter should be applied |
|
| Ground: | The Headlight Aimer and the car should be on the same ground . the horizontal error of the ground should not be more than1% | |
Packaging: wooden case
Delivery time: 7 days
1 year warranty after container arrive at port of destination
OEM & ODM service
Spare parts will be replaced within one week, buyer bear the shipping cost
