Quick Details
-
Application:
-
Villa
-
Type:
-
Swing Gate Opener
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
PKM-C02-2
-
Motor's Power:
-
24VDC 60W
-
Max Motor Running Time:
-
5min
-
Rotational Speed:
-
100RPM
-
Actuator Running Speed:
-
2.4cm/s
-
Max Actuator Stroke:
-
400mm
-
Max single-leaf Length:
-
3m
-
Max single-leaf Weight:
-
300KG
-
Protection Class:
-
IP55
-
Gross Weight:
-
18KG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Type:
-
Swing Gate Opener
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
PKM-C02-2
-
Motor's Power:
-
24VDC 60W
-
Max Motor Running Time:
-
5min
-
Rotational Speed:
-
100RPM
-
Actuator Running Speed:
-
2.4cm/s
-
Max Actuator Stroke:
-
400mm
-
Max single-leaf Length:
-
3m
-
Max single-leaf Weight:
-
300KG
-
Protection Class:
-
IP55
-
Gross Weight:
-
18KG
Product description of heavy duty electric swing gate opener PKM-C02:
This double gate opening system is a robust, tuff, long lasting and a quiet opening and closing system for double swing gates up to 4m in length.
The motor can handle light and heavy gates. The PKM-C02-2 is a sleek design telescopic linear screw type actuator that is made of stainless steel with a cast alloy motor housing.
The two motors make up a durable and powerful 24V unit and the gear box is heavy duty and all gears are constructed of metal (no plastic, fibre or nylon).
The PKM-C02-2 is fitted with an emergency manual override on each actuator to allow the user to open the gates manually in case of an emergency such as a power failure situation.

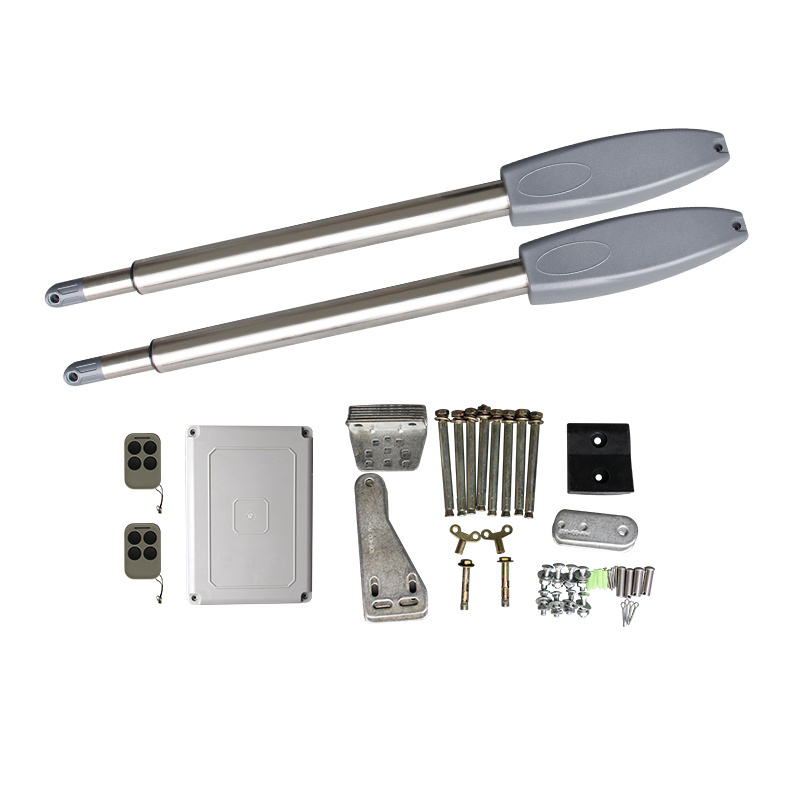

Electric Heavy Duty Swing gate opener kit includes:
2 x Heavy duty DC motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Controller
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
1 x photocell
1 x flashing light
Features of electric arms swing gate openers kit:
1.Easy to install and operate,and easy to connect wired.
2.Time promotation function.when open gate ,speed is slow,then a little quick,and when close the door,speed is slow again.
3.Full set use stainless steel alloy material.and have water-proof function.
4.Use worm gear and worm design inside
5.Working life about 8 years.
6.In case of power failure,release the clutch easily,and can operate the gate manually.
7.Stop working when gate meets with obstacle.
8.Rod's max travel is 400mm.
9.Motor's Poweer : 24VDC 60W
10.Running Speed :2.4cm/s
Advantages of double arms swing gate openers controller:
1.Control panel can connect flashing light,and photocell,and back up battery,solar system,and keypad and so on.
2.Controlling single or dluble-leaf motor is optional.
3.Can adjust open and close door time.
4.24VDC back-up battery can be input.(this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily.
Warranty time of electronic swing gate openers :
All the gate openers supplied are pre tested and of good quality long lasting and have a 12 Months back to base warranty on the complete system.
Other info of heavy duty swing gate openers:
Port of export: Xiamen or other place.
Guarantee time: 1 year.
The delivery deadline:1 days delivery after receive your payment for sample.
The package:One set in a one carton,37 set in a cubic.
Minium Order Quantity: 10sets(the price will be more lower).
Payment terms:T/T , PAYPAL , Western Union and Chinese bank.
