- Product Details
- {{item.text}}
Quick Details
-
Name:
-
car parking lot loop detector
-
Voltage:
-
85-240VAC/12-24VADC
-
Size:
-
76 (L)* 42(W)* 74mm( H )
-
Color:
-
Green/Yellow
-
Power consumption:
-
<6VA
-
Frequency Rang:
-
20~80KHz
-
Response Time:
-
2~4 mA
-
IP Rate:
-
IP 65
-
Warranty:
-
2 years
-
Certificate:
-
CE&RoHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOBLE car parking lot loop detector
-
Model Number:
-
NBLD-100/LD-102 car parking lot loop detector
-
Name:
-
car parking lot loop detector
-
Voltage:
-
85-240VAC/12-24VADC
-
Size:
-
76 (L)* 42(W)* 74mm( H )
-
Color:
-
Green/Yellow
-
Power consumption:
-
<6VA
-
Frequency Rang:
-
20~80KHz
-
Response Time:
-
2~4 mA
-
IP Rate:
-
IP 65
-
Warranty:
-
2 years
-
Certificate:
-
CE&RoHS
Smart parking lot counting system with car loop detector
General Introduction of Vehicle Loop Detector:
A)
Double Loop Vehicle Detector of General description
The LD-100 NOBLE vehicle loop detector is designed to accommodate numerours applications, can be adjusted intelligently to any environments and virtually liminating false detection.
Four selectable loop frequencies(20~80KHz) can completely eliminate any crosstalk.
Two-color LED status indicator for Detect,Power,and Loop Fault indication.
Two separate output relays
B)Traffic Detectors of Technical Parameters :
| Working power | Power Consumption Max | Working temperature | Loop Inductance | Frequency Rang | Response Time |
| 85-240VAC/12-24VADC | <6VA | -10℃~+50℃ | 20~2000μH | 20~80KHz | 2~4 mA |
C)Main function of Vehicle Loop Detector for Automatic Gate
- To arm card readers and ticket dispensers.
- As a barrier/gate/door closing detector.
- As a barrier/gate/door opening detector (Free exit).
- To generate pulses for counting vehicles.
-
vehicles in parking and vehicle access control applications.

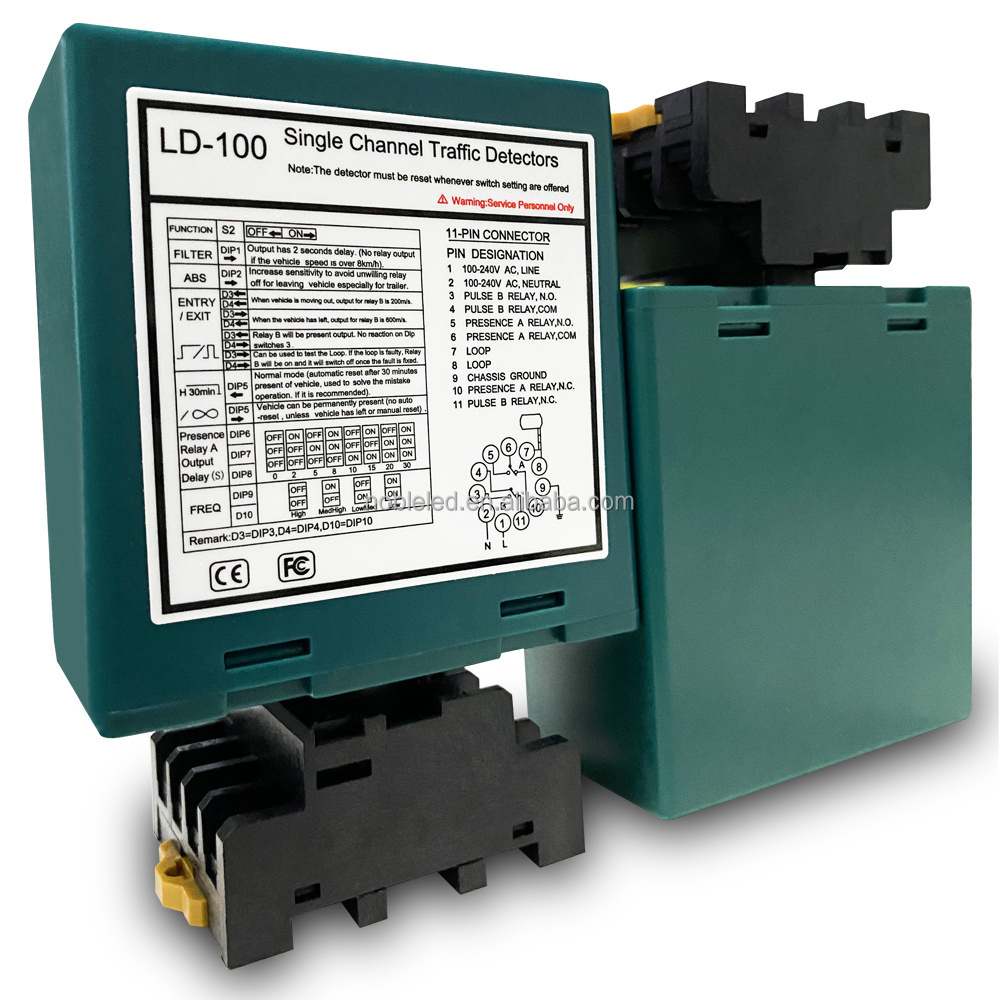

Pictures of Vehicle Loop Detector:
Two Colors of Vehicle Loop Detector:
Application of Vehicle Loop Detector:
