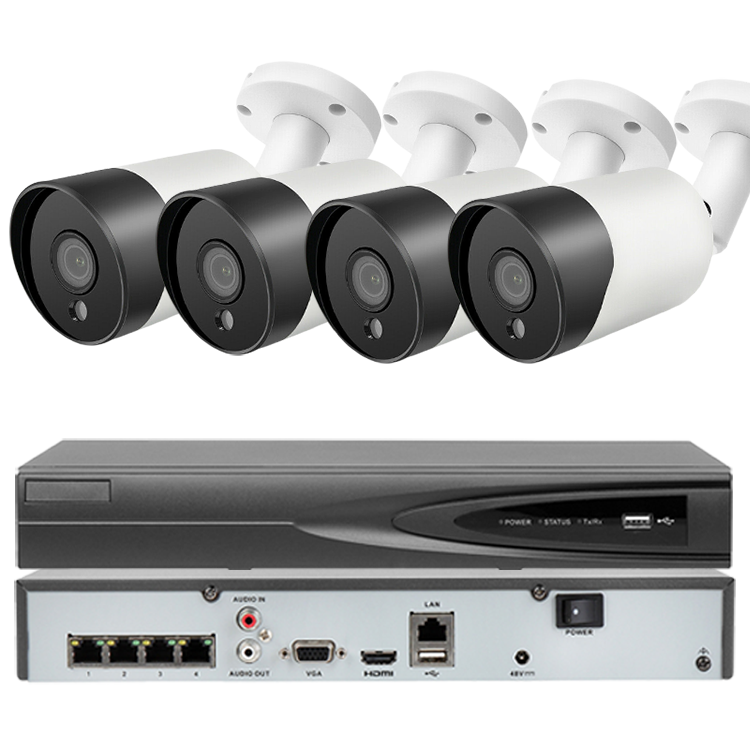

Outdoor DH 4MP 5MP 4K Full Color Night Vision NVR Kit 4K 8 POE Smart IP Security Camera System

FOB Reference Price: Get Latest Price

≥1 Sets

US $1631

≥50 Sets

US $1239

≥100 Sets

US $919

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Data Storage Options:: MORE

Place of Origin:: Guangdong, China

Brand Name:: DH

Model Number:: IPC-HFW3849T1-AS-PV+DHI-NVR2208-8P-I

Video Compression Format:: H.265+

Resolution:: 4MP/5MP/8MP

Product name:: 8MP Wiz sense Sound And Light Alarm Full-color Network Camera

Image Sensor:: 1/2.8" 8Megapixel progressive CMOS

max. illumination distance:: 30 m

Waterproof:: IP67 protection

power supply:: 12V DC/PoE

Video Compression:: H.264+/H.265+

Intelligent detection:: Intrusion, tripwire

Lens Type:: Fixed-focal

Management Software:: Smart PSS; DSS; DMSS

Support:: the classification and accurate detection of vehicle and human

Quick Details

Network:: Ip

Customized support:: Online technical support, Customized logo, OEM, ODM

Special Features:: NIGHT VISION, Two-way Audio, Face Recognition, Motion Detection, Face detection

Data Storage Options:: MORE

Place of Origin:: Guangdong, China

Brand Name:: DH

Model Number:: IPC-HFW3849T1-AS-PV+DHI-NVR2208-8P-I

Video Compression Format:: H.265+

Resolution:: 4MP/5MP/8MP

Product name:: 8MP Wiz sense Sound And Light Alarm Full-color Network Camera

Image Sensor:: 1/2.8" 8Megapixel progressive CMOS

max. illumination distance:: 30 m

Waterproof:: IP67 protection

power supply:: 12V DC/PoE

Video Compression:: H.264+/H.265+

Intelligent detection:: Intrusion, tripwire

Lens Type:: Fixed-focal

Management Software:: Smart PSS; DSS; DMSS

Support:: the classification and accurate detection of vehicle and human

OEM All Hikvsion, Da hua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!

Main Functions

Specification

Camera
Image Sensor	1/2.8" 8Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.007 Lux@F1.4
S/N Ratio	> 56 dB
Illumination Distance	30 m (98.4 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–360°Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Field of View	2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°3.6 mm: Horizontal 89° × Vertical 46° × Diagonal 102°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 1.5 m (4.9 ft)3.6 mm: 2.2 m (7.2 ft)
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/Smart H.264+
Video Frame Rate	Main stream:3840 × 2160 @(1–20 fps by default) 3840 × 2160 @(1–25/30 fps with AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)\ third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 ×1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280× 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	PCM, G.711a, G.711Mu, G726
Alarm
Alarm Event	No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD;safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA ;PPPoE; SNMP
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot;trusted execution; trusted upgrade
Interoperability	O N V I F (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host	20 (Total bandwidth: 72 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE8; IE9; IE11Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 3.2W (12V DC); 4.2W (PoE)Max. power consumption (WDR + H.265 + red and blue lights intensity + warm light + max. sound alarm): 8.2W (12V DC); 9.7W (PoE)
Environment
Operating Conditions	–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67
Structure
Casing	Metal + plastic
Dimensions	288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3")(L × W × H)
Net Weight	1.0 kg (2.2 lb)
Gross Weight	1.23 kg (2.7 lb)
