Quick Details
-
Dimension(L*W*H):
-
2480x830x1200mm
-
Year:
-
2023
-
Power (kW):
-
16 kW
-
Weight (KG):
-
650 KG
-
Heating Board Size:
-
830x2220mm
-
Belt Width:
-
2000mm
-
Fast Cooling Time:
-
5 minutes (from 145 degrees down to 70 degrees or less)
-
Max Working Pressure:
-
1.8MPa
-
Vulcanizing Temperature:
-
Adjustable
-
Heating Plates Material:
-
High quality aluminum alloys
-
Weight:
-
1400kgs
-
Application:
-
Splicing and repairing conveyor belts
-
Certification:
-
CE, ISO
-
Power:
-
27kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EVERFINE
-
Voltage:
-
220V~480V
-
Dimension(L*W*H):
-
2480x830x1200mm
-
Year:
-
2023
-
Power (kW):
-
16 kW
-
Weight (KG):
-
650 KG
-
Heating Board Size:
-
830x2220mm
-
Belt Width:
-
2000mm
-
Fast Cooling Time:
-
5 minutes (from 145 degrees down to 70 degrees or less)
-
Max Working Pressure:
-
1.8MPa
-
Vulcanizing Temperature:
-
Adjustable
-
Heating Plates Material:
-
High quality aluminum alloys
-
Weight:
-
1400kgs
-
Application:
-
Splicing and repairing conveyor belts
-
Certification:
-
CE, ISO
-
Power:
-
27kw

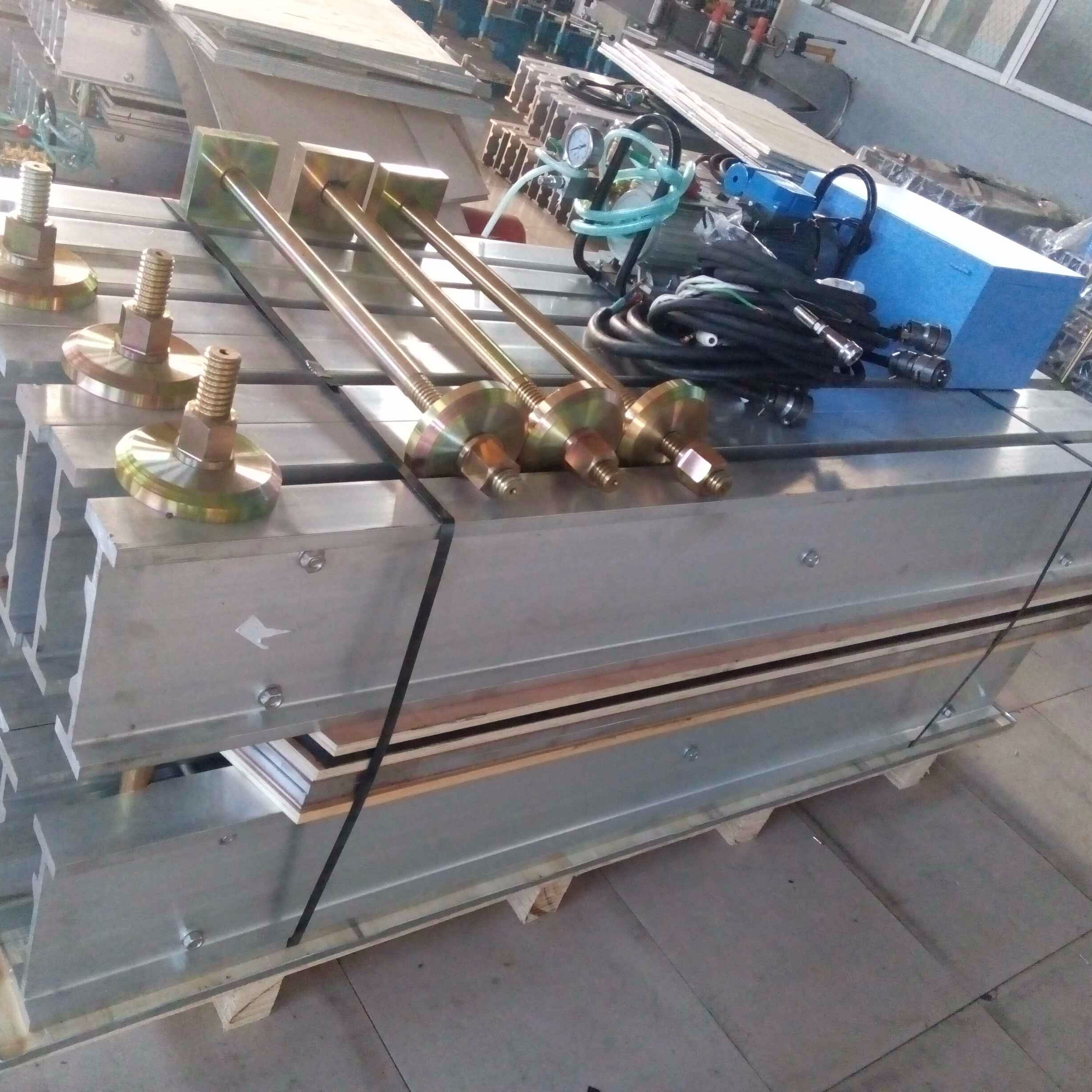

Conveyor belt vulcanizing press / hot splicing machine
P ortable type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Technical Parameters:
1.
Machine
m
aximum size:
f
rom 650MM-
24
00MM;
2.
Voltage: 380V 660V 480V 440V 415V 400V or 220V;
3.
Fast
c
ooling time: 5 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 50 minutes;
5.
Vulcanizing pressure:1.8MPa (details refer to users’ specifications and factory markings);
6.
Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
7. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
8. Make clear for model and specification of product and indicate width and tensile strength of rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
9. Users could order spare electric pumps additionally according to requirements.
|
Item |
Heating Board Size |
Belt Width |
Power |
Overall Dimension |
Weight |
|
CBSP-650 |
830x810mm |
650mm |
9.2kw |
1130x830x750mm |
450kgs |
|
CBSP-800 |
830x1020mm |
800mm |
11.2kw |
1220x830x750mm |
550kgs |
|
CBSP-1000 |
830x1220mm |
1000mm |
16.5kw |
1480x830x750mm |
650kgs |
|
CBSP-1200 |
830x1420mm |
1200mm |
18.6kw |
1680x830x800mm |
800kgs |
|
CBSP-1400 |
830x1620mm |
1400mm |
20.8kw |
1880x830x900mm |
950kgs |
|
CBSP-1600 |
830x1820mm |
1600mm |
22.2kw |
2080x830x900mm |
1150kgs |
|
CBSP-1800 |
830x2020mm |
1800mm |
24.8kw |
2280x830x900mm |
1250kgs |
|
CBSP-2000 |
830x2220mm |
2000mm |
27kw |
2480x830x1200mm |
1400kgs |
|
CBSP-2200 |
830x2420mm |
2200mm |
28.8kw |
2680x830x1200mm |
1500kgs |
|
CBSP-2400 |
830x2620mm |
2400mm |
30.2kw |
2880x830x1200mm |
1700kgs |
