Quick Details
-
Rated Loading Capacity:
-
8 Ton
-
Max. Lifting Height:
-
17.8M
-
Span:
-
17.8M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Top Brand
-
Product name:
-
Spider Crane
-
Key words:
-
Mini Hydraulic Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
Quick Details
-
Weight (KG):
-
6500
-
Marketing Type:
-
New Product 2023
-
Application:
-
Any Construction
-
Rated Loading Capacity:
-
8 Ton
-
Max. Lifting Height:
-
17.8M
-
Span:
-
17.8M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Top Brand
-
Product name:
-
Spider Crane
-
Key words:
-
Mini Hydraulic Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
Products Description

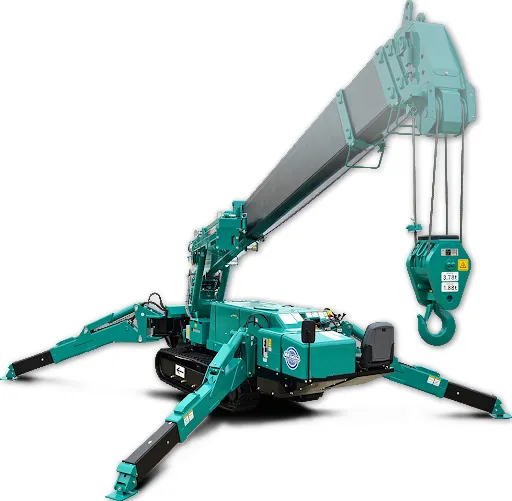

KB8.0 Mini Crawler Spider Crane Characteristic
KB-8.0 mini crawler spider cranes are widely used in the maintenance and installation of electrical equipment in substations, the maintenance and installation of mechanical and chemical workshop equipment, glass curtain walls and other occasions where space is narrow.
At present, it has been widely selected by the State Grid and the Southern Power Grid, and the products have been exported to the United States, Australia, Canada, the United Kingdom, Brazil, Vietnam, the United Arab Emirates and other countries.
There is a certain amount of surplus in addition to the rated load of the crane, which can be operated for a long time. It is durable and can be easily operated even in harsh environments. The safety design prevents incorrect operation and makes it easy for the operator to complete the lifting operation.
The compact body is only 600mm wide, enabling smooth access to narrow sites. The fully automatic telescopic boom provides a large working radius for a wide range of lifting operations.
At present, it has been widely selected by the State Grid and the Southern Power Grid, and the products have been exported to the United States, Australia, Canada, the United Kingdom, Brazil, Vietnam, the United Arab Emirates and other countries.
There is a certain amount of surplus in addition to the rated load of the crane, which can be operated for a long time. It is durable and can be easily operated even in harsh environments. The safety design prevents incorrect operation and makes it easy for the operator to complete the lifting operation.
The compact body is only 600mm wide, enabling smooth access to narrow sites. The fully automatic telescopic boom provides a large working radius for a wide range of lifting operations.
※ Pentagonal telescopic boom.
※ Energy-saving and durable torque limiter with remote control prevents overloading.
Contact
sales Manager ：
Marco Jiang
Whatsapp/wechat/mobile:
+86 13868117431
E-mail:
marco@liebty.com
Company :
liebty Machinery Technology(Hangzhou) Co.,Ltd
Address:
Room 208,Building 3, No.1866, Binxing Road, Changhe street,Bingjiang District,Hangzhou,Zhejiang,China
Specifications
|
model
|
|
KB8.0 Mini crawler crane
|
||
|
specification
|
|
8.00t × 2.5m
|
||
|
Working radius
|
|
17.8m
|
||
|
Maximum ground lift
|
|
17.8m
|
||
|
Winch
|
Lifting speed of hook:
|
10m / min 4 rope
|
||
|
|
Wire rope
|
Φ2mm × 125m
|
||
|
Telescopic device
|
Boom form
|
U-type fully automatic 5 sections
|
||
|
|
Boom length
|
4.65m ~ 16.4m
|
||
|
|
Boom telescopic length / time
|
34sec (extended)
|
||
|
Undulating device
|
Boom angle / time
|
0 ~ 80 ° / 24.5sec
|
||
|
Rotary device
|
Swing angle / speed
|
360 ° continuous / 2.1rpm
|
||
|
Outrigger
|
Outrigger action
|
Manual rotation, hydraulic extension, hydraulic ground
|
||
|
|
Maximum reach
|
(Left and right) 5670mm × (front) 5510mm × (rear) 5030mm
|
||
|
Walking device
|
Way of walking
|
Hydraulic motor drive
|
||
|
|
Walking speed
|
Forward and backward: 0 ~ 1.5km / h
|
||
|
|
Gradeability
|
20 °
|
||
|
|
Crane grounding length * width * 2
|
1720mm × 320 mm
|
||
|
|
Ground specific pressure
|
49.0kpa (0.50 kgf / cm²)
|
||
|
engine
|
model
|
4TNV88
|
||
|
|
Displacement
|
22.19L
|
||
|
|
Rated output power
|
25.2kw / 2200 min-1
|
||
|
|
Start way
|
Motor start
|
||
|
|
Used fuel / volume
|
Diesel / 45L
|
||
|
Motor
|
model
|
YYB160M-4 (three-phase AC asynchronous motor)
|
||
|
|
Working voltage (frequency)
|
380V (Hz50)
|
||
|
|
power
|
11Kw
|
||
|
Vehicle size
|
Length x width x height
|
5033mm × 1560mm × 2278mm
|
||
|
Weight
|
Vehicle weight
|
6500kg
|
||
|
Hydraulic oil tank volume
|
|
100L
|
||
|
safety devices
|
|
Torque limiter, tri-color light, alarm, emergency stop button, anti-tip overturning, interlocking, car body leveling with one
click. |
||
|
System voltage
|
DC12V
|
|
||
|
The vehicle size
|
Length * width * height
|
4950mm*1560mm*2235mm
|
||
|
The weight of the
|
The vehicle weight
|
6000Kg
|
||
