Quick Details
-
Model Number:
-
FM-30
-
Type:
-
Waste Treatment
-
Power:
-
220V/380V
-
Weight (KG):
-
800 kg
-
Name:
-
Animal Incinerator
-
Application:
-
Solid Waste
-
Size:
-
1050X850x1350mm
-
Voltage:
-
220V/380V/Customized
-
Raw material:
-
Carbon Steel
-
Usage:
-
Waste Treating
-
Color:
-
Customized Color
-
Keywords:
-
Animal Cremation
-
After-sales Service Provided:
-
Video Technical Support
-
Capacity:
-
20-500kgs/batch
Quick Details
-
Production Capacity:
-
20kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Feimiao
-
Model Number:
-
FM-30
-
Type:
-
Waste Treatment
-
Power:
-
220V/380V
-
Weight (KG):
-
800 kg
-
Name:
-
Animal Incinerator
-
Application:
-
Solid Waste
-
Size:
-
1050X850x1350mm
-
Voltage:
-
220V/380V/Customized
-
Raw material:
-
Carbon Steel
-
Usage:
-
Waste Treating
-
Color:
-
Customized Color
-
Keywords:
-
Animal Cremation
-
After-sales Service Provided:
-
Video Technical Support
-
Capacity:
-
20-500kgs/batch
Product Overview

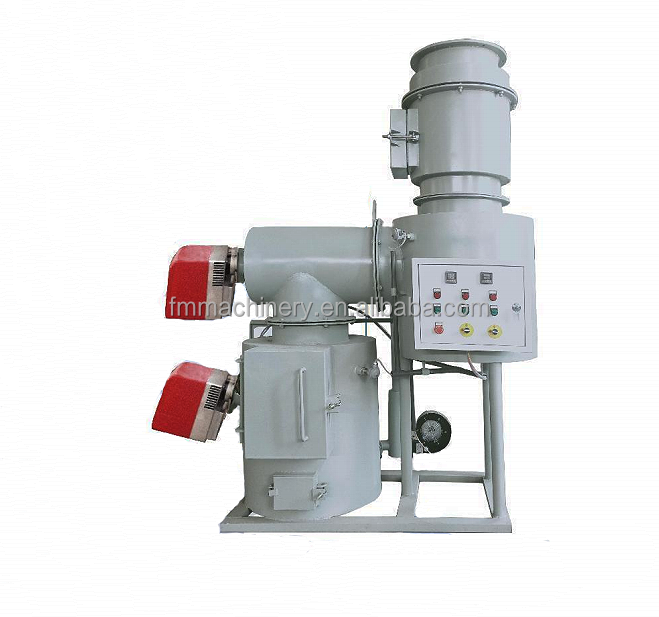

2024 year hot sale waste incinerators medical Incinerator animal Incinerator for Garbage station farm and hospital
Application:
PRODUCT SPECIFICATIONS
Model FM-30
Animal incinerator
(suitable for size 600) × Below 350mm)
Appearance size： 1050 × eight hundred and fifty × 1350mm
Unfolded size： 1450 × eight hundred and fifty × 1350mm
Installation area ：2000 × 1000mm
Furnace bed size ：N/A
Total weight： 0.8t
Adopting technology ：3T+vortex combustion+secondary combustion system
Smoke retention time： ≥ 2S
Reduction ratio ：≥ 97%
Heat reduction rate ：≥ 5%
Furnace surface temperature： ≤ 50 ℃
Ignition method：Automatic ignition mode
Auxiliary fuel ：diesel (low calorific value 10495Kcal/Kg)
The pressure inside the furnace： adopts a negative pressure design, without backfire, with a H2O column of -3-10mm
Air supply fan ：0.15kw
Chimney ：φ219 × 2000mm
Temperature detector： temperature measurement range: 0-1300 ℃
Fuel tank：30L
Control box ： Delixi electrical accessories
Main combustion chamber
Main material and main structure： Q235-A high-quality steel plate;
Refractory material：fire-resistant first grade clay formed bricks, and fire-resistant cement stacked and formed; Top
fire-resistant first-class clay vertical 10 shaped bricks;
Operating temperature: 850-1300 ℃.
Secondary combustion chamber
Size ：φ 350 × 400mm;
Main material ：main structure Q235-A high-quality steel plate;
Refractory materials：Casting and molding of refractory materials;Pouring and forming
Operating temperature: 850-1300 ℃.
Combustion burner
Burner output 54-120 kW 4.5-10 kg/h
Fuel light oil, maximum viscosity 6 mm2/s at 20 ° C
Power supply ：single-phase, 230V ± 10%~50Hz
Motor： operating current 0.8A – 2850 rpm – 298 rad/s
Motor starting capacitor： 4 μ F
Ignition transformer： Secondary 8 kV -16 mA
Oil pump pressure： 7-15 bar
Electric power consumption： 0.170 kW
Appearance size： 1050 × eight hundred and fifty × 1350mm
Unfolded size： 1450 × eight hundred and fifty × 1350mm
Installation area ：2000 × 1000mm
Furnace bed size ：N/A
Total weight： 0.8t
Adopting technology ：3T+vortex combustion+secondary combustion system
Smoke retention time： ≥ 2S
Reduction ratio ：≥ 97%
Heat reduction rate ：≥ 5%
Furnace surface temperature： ≤ 50 ℃
Ignition method：Automatic ignition mode
Auxiliary fuel ：diesel (low calorific value 10495Kcal/Kg)
The pressure inside the furnace： adopts a negative pressure design, without backfire, with a H2O column of -3-10mm
Air supply fan ：0.15kw
Chimney ：φ219 × 2000mm
Temperature detector： temperature measurement range: 0-1300 ℃
Fuel tank：30L
Control box ： Delixi electrical accessories
Main combustion chamber
Main material and main structure： Q235-A high-quality steel plate;
Refractory material：fire-resistant first grade clay formed bricks, and fire-resistant cement stacked and formed; Top
fire-resistant first-class clay vertical 10 shaped bricks;
Operating temperature: 850-1300 ℃.
Secondary combustion chamber
Size ：φ 350 × 400mm;
Main material ：main structure Q235-A high-quality steel plate;
Refractory materials：Casting and molding of refractory materials;Pouring and forming
Operating temperature: 850-1300 ℃.
Combustion burner
Burner output 54-120 kW 4.5-10 kg/h
Fuel light oil, maximum viscosity 6 mm2/s at 20 ° C
Power supply ：single-phase, 230V ± 10%~50Hz
Motor： operating current 0.8A – 2850 rpm – 298 rad/s
Motor starting capacitor： 4 μ F
Ignition transformer： Secondary 8 kV -16 mA
Oil pump pressure： 7-15 bar
Electric power consumption： 0.170 kW
