Quick Details
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ25F-11E/J/S/12V/R/T2
-
IP level:
-
IP65
-
Product name:
-

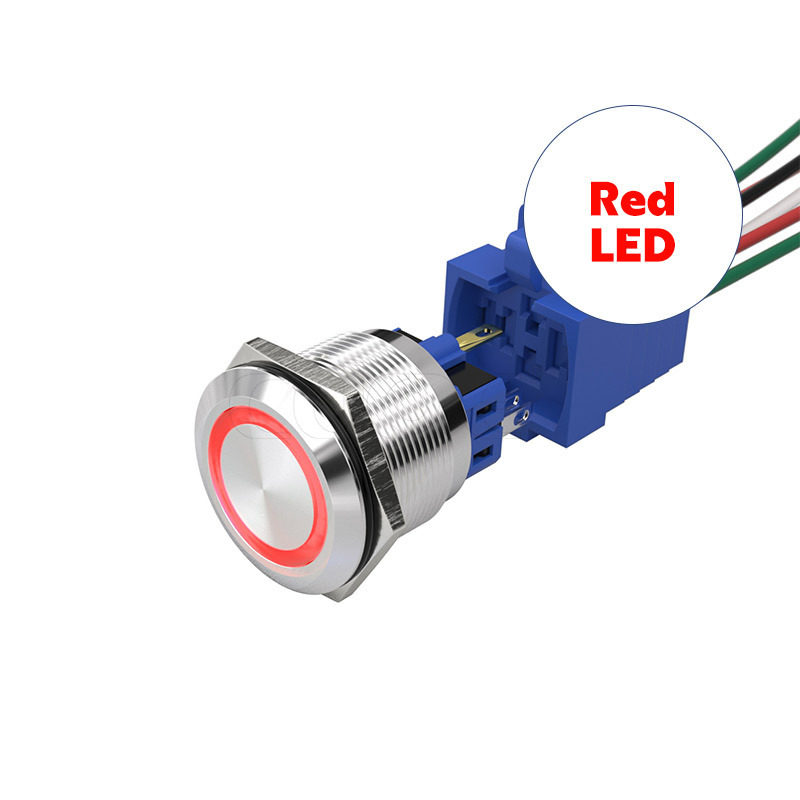

25mm Flat round Stainless Steel pushbutton switch with led
-
head type:
-
Flat round ring illumianted
-
Switch value:
-
5A/250V
-
Operation Type:
-
Momentary
-
Contact configuration:
-
1NO1NC
-
Crust material:
-
Stainless Steel
-
Terminal type:
-
Pin terminal
-
Protection grade:
-
IP65
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
1,000,000 times
Quick Details
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ25F-11E/J/S/12V/R/T2
-
IP level:
-
IP65
-
Product name:
-
25mm Flat round Stainless Steel pushbutton switch with led
-
head type:
-
Flat round ring illumianted
-
Switch value:
-
5A/250V
-
Operation Type:
-
Momentary
-
Contact configuration:
-
1NO1NC
-
Crust material:
-
Stainless Steel
-
Terminal type:
-
Pin terminal
-
Protection grade:
-
IP65
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
1,000,000 times
Parameter
|
lamp push button switch
|
|
|
|
|
||||
|
Mounting hole size :
|
|
|
25mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
5A/250V AC
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO1NC
|
|
||||
|
Crust material:
|
|
|
Stainless Steel
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Protection grade :
|
|
|
IP65
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Mechanical life:
|
|
|
≥1，000,000 times
|
|
||||
|
Illumination type:
|
|
|
Ring illumination
|
|
||||
|
Led color:
|
|
|
Red
|
|
||||
|
Led voltage:
|
|
|
12V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
Products Description
Product packaging
Product packing method.
We pack
20 pieces
diameter
25 mm metal push button
into 1 foam box to protect them.
We supply 20 pieces rubber rings
.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Shipping:Title goes here.
1. DHL,TNT, FEDEX, UPS and other international express.
2. By air or by sea.
2. By air or by sea.
