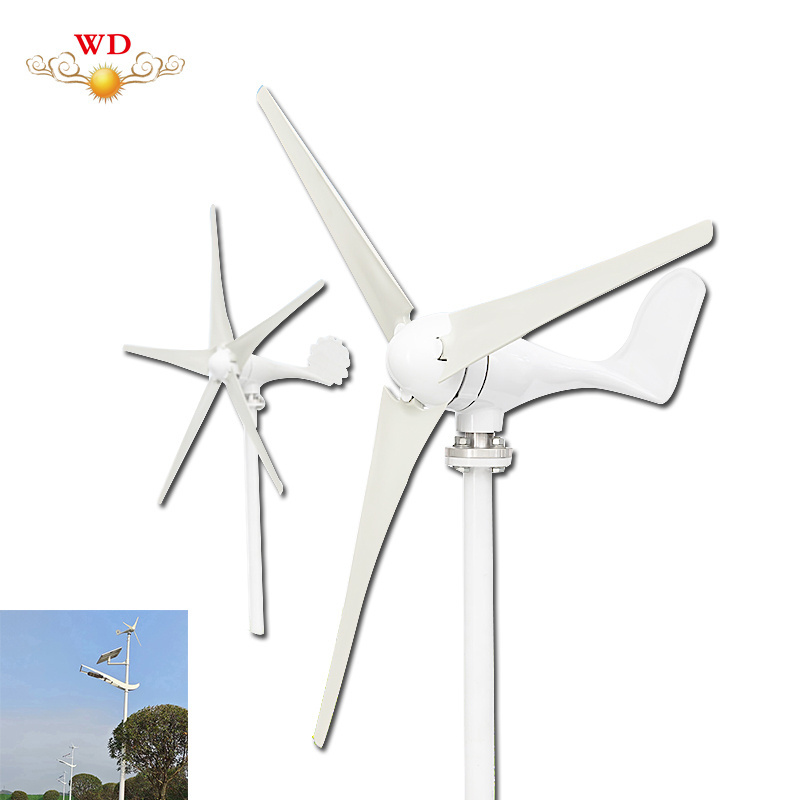

Best Quality Wind Turbine for sale 100W 200W 300W 500W Horizontal Axis small Wind Turbine For home

Best Quality Wind Turbine for sale 100W 200W 300W 500W Horizontal Axis small Wind Turbine For home

FOB Reference Price: Get Latest Price

≥1 Sets

US $95

≥100 Sets

US $85

≥1000 Sets

US $75

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: WD-A-100W-500W

Certification:: CE

Output Voltage:: 12V 24V

rotor diameter:: 1.1m-1.3m

Application:: Wind Power Generation

Product name:: Horizontal Wind Power

Generator type:: 3 Phase AC Permanent-magnet

Rated Voltage:: 12v/24V

Rated wind speed:: 13m/s

Blade Material:: Nylon Fiber

Start-up wind speed:: 2.0m/s

Keywords:: Wind Electricity Generator

Controller:: Electromagnetic Brakes

Quick Details

Rated Power:: 100W -500W

Place of Origin:: Jiangsu, China

Brand Name:: Wind

Model Number:: WD-A-100W-500W

Certification:: CE

Output Voltage:: 12V 24V

rotor diameter:: 1.1m-1.3m

Application:: Wind Power Generation

Product name:: Horizontal Wind Power

Generator type:: 3 Phase AC Permanent-magnet

Rated Voltage:: 12v/24V

Rated wind speed:: 13m/s

Blade Material:: Nylon Fiber

Start-up wind speed:: 2.0m/s

Keywords:: Wind Electricity Generator

Controller:: Electromagnetic Brakes

Product Description

Product Paramenters & Datasheet

Model	WD-A-100-500W
Rated power	100W, 200W, 300W, 400W, 500W
Max Power	110W, 220W,330W,440W,550W
Rated Voltage	12/24V
Start-up Wind Speed	2m/s
Rated Wind Speed	13m/s
Survival wind speed	35m/s
Wind wheel diameter	1.1m-1.3m
3Number of blades	5 pieces
Blades material	Nylon fiber
Generator	Three phase ac permanent magnet generator/Maglev generators
Control System	electric eddy brake
Yaw Mode	The wind Angle automatically
Lubrication mode	self-lubricating
Tower form	Tower
Working temperature	-40℃～80℃

Installation Instructions

Details Images

Components

1.Host

2. Flange Base

3. Pole

4. Shaft

5.Wheel.

6.Blades

7. Anti-loose Nut

8. Cowl

9.Bolts

10.Gasket

11.Spring Washers

12. Nuts

13.Bolts

14.Nuts

15.Rubber G asket

Manufacturing Technique

Generator

Three phase ac permanent magnet generator/Maglev generators

Permanent magnet synchronous generator, wind energy to electric energy higher efficiency, lower loss, self-adjust the direction with the wind. The aluminum alloy shell is light in weight and has strong stability.

Working Temperature.

Nylon fiber, Normal operation at -40--80 degrees, Don't worry about the blade freezing crack caused by too low temperature or the deformation of the blade due to too high temperature

Low running vibration and ultra-low silence

Low starting wind speed, small size, beautiful appearance, low running vibration, ultra-low silence, intelligent microprocessor control, effective regulation of current and voltage.

316 stainless steel Anti-loose Bolts

316 stainless steel Anti-loose Bolts Corrosion resistant and longer service life. .

Flange

It adopts beautiful and user-friendly flange connection installation design, which is more firm and safe. .

Upgrade double bearings

Double bearings make the fan run more smoothly, avoid jitter, and greatly improve the power generation efficiency of the fan.

Three phase ac permanent magnet generator/Maglev generators

1. The rotor has no losses and has higher efficiency 2. The motor is small and lightweight

3. The air gap magnetic density is generated by the rotor magnet, and the power factor is higher.

4. Wide speed regulation range.

5. The moment of inertia is small, the allowable pulse torque is large, high acceleration can be obtained, and the dynamic performance is good.

6. Low noise and large overload capacity. At the same time, due to the large power density and torque density of the permanent magnet, the maximum torque can reach 3 times the rated speed.

Our Products

Many Types wind generator for your choose. New design vertical and Horizontal Types.

FAQ

Q: Can I get some samples?
A: Yes, sample orders welcomed.

Q: How long about the delivery time after I place an order?
A: It's depends on your quantity of the goods and normally in 35 days.

Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available, but we need authorization.

Q: Can I choose the colors?
A: Yes, we have several colors optional for each item and OEM color is available on mass production.

Q: What is delivery item?
A: Prompt delivery normally for sample orders and 35 days for mass production.

Q: What is payment?
A: T/T, Western Union, L/C , etc.

Q: Why do I trust you?
A: We are " Alibaba " verified supplier and servicing professionally for food factories & restaurants with our high quality goods

Q3:What is your payment terms?
A:30% TT in advance
