Quick Details
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGLIAN
-
Product name:
-
airport security dual x ray baggage luggage scanner

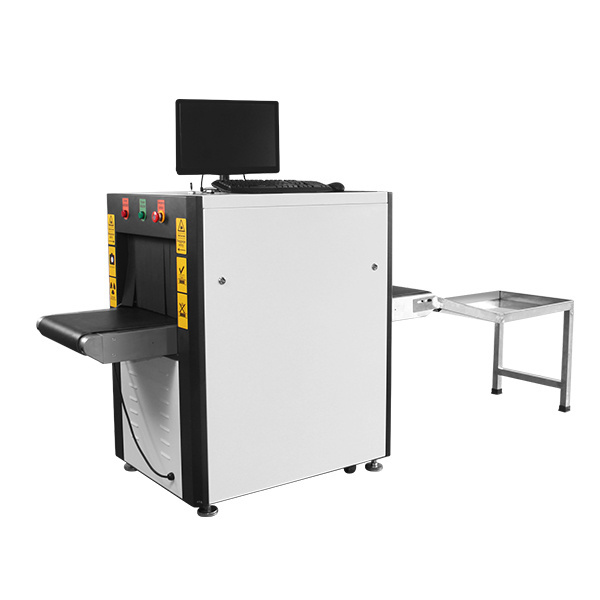

Automatic 100100 airport security dual x ray baggage luggage scanner
X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards
| Physical Specifications | |
| Unit weight (kgs) | 284 |
| Unit size (mm) | 1660(L)*746(W)*1165(H) |
| after packed in wooden pallet - | |
| Gross weight (kgs) | 400 |
| Packing size | 180*88*138cm |
| General Specifications | |
| Tunnel size(mm) | 505(L)*305(W) |
| Conveyor Speed(m/s) 0.2 | 0.2 |
| Conveyor height(mm) 663 | 663 |
| Conveyor Max Load(kgs) 100 | 100 |
| X ray dose per each inspection | 3.0 μGy |
| X ray leakage | <1.0 μGy / h |
| Penetration | 14mm steel |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | max. 1KW |
| Noise | 56.3 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
