Quick Details
-
Model Number:
-
RS-WS-*-2-1
-
Name:
-

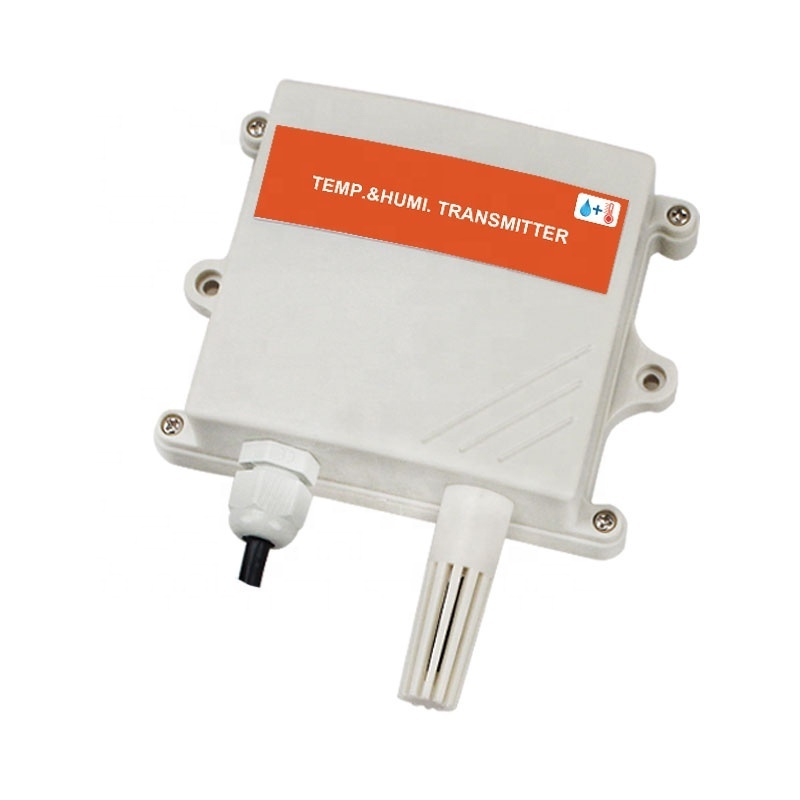

Greenhouse Analog Modbus Digital Air Temperature and Humidity Sensor
-
Keywords:
-
Temperature and Humidity Sensor
-
Certificate:
-
CE ISO
-
Output:
-
4-20mA/0-5V/0-10V/RS485
-
Power supply:
-
10-30VDC
-
Accuracy:
-
Tem. ±0.4℃, Hum, ±2%RH
-
Respond time:
-
Tem. ≤25s Hum.≤8s
-
Humi. Measuring Range:
-
0%RH-100%RH
-
Temp. Measuring Range:
-
-40℃--+80℃
Quick Details
-
Warranty:
-
2 years, 2 Years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RENKE
-
Model Number:
-
RS-WS-*-2-1
-
Name:
-
Greenhouse Analog Modbus Digital Air Temperature and Humidity Sensor
-
Keywords:
-
Temperature and Humidity Sensor
-
Certificate:
-
CE ISO
-
Output:
-
4-20mA/0-5V/0-10V/RS485
-
Power supply:
-
10-30VDC
-
Accuracy:
-
Tem. ±0.4℃, Hum, ±2%RH
-
Respond time:
-
Tem. ≤25s Hum.≤8s
-
Humi. Measuring Range:
-
0%RH-100%RH
-
Temp. Measuring Range:
-
-40℃--+80℃
Greenhouse Analog Modbus Digital Air Temperature and Humidity Sensor
Product Description
|
RS485 OUTPUT
|
|
|
ANALOG OUTPUT
|
|
Tomato & Pomato
|
||||
|
Power supply
|
10~30VDC
|
|
Power supply
|
10~30VDC
|
Fashion&Casual
|
||||
|
Power consumption
|
0.4W
|
|
Power consumption
|
Temperature
|
1.2W
|
||||
|
|
Temperature
|
±0.5℃
|
|
Humidity
|
1.2W
|
||||
|
|
Humidity
|
±3%RH
|
Accuracy
|
Temperature
|
±0.5℃
|
||||
|
Signal output
|
Standard Modbus-RTU
|
|
|
Humidity
|
±3%RH
|
||||
|
Temperature range
|
-40℃~+80℃
|
|
Temperature range
|
-40℃~+80℃
|
|
||||
|
Humidity range
|
0%RH-100%RH
|
|
Humidity range
|
0%RH-100%RH
|
|
||||
|
Operating temperature
|
-20℃~+60℃，0%RH~80%RH
|
|
Operating temperature
|
-20℃~+60℃，0%RH~80%RH
|
|
||||
|
Long-term stability
|
Temperature
|
≤0.1℃/y
|
Long-term stability
|
Temperature
|
≤0.1℃/y
|
||||
|
|
Humidity
|
≤1%RH/y
|
|
Humidity
|
≤1%RH/y
|
||||
|
Response time
|
Temperature
|
≤25s
|
Signal output
|
Current output
|
4~20mA
|
||||
|
|
Humidity
|
≤8s
|
|
Voltage output
|
0~5V/0~10V
|
||||
Detailed Images
Applying Swiss inward measure unite, measurement accuracy, and using professional 485 electric circuit makes the communication stable. Powered by 10V-30V wide voltage, Complete specifications and convenient to install.
Electrical Wiring
|
RS485 OUTPUT
|
|
|
|
Line color
|
Description
|
|
|
brown
|
A positive power supply (10 ~ 30 V DC)
|
|
|
black
|
Negative power supply
|
|
|
yellow
|
485 -A
|
|
|
blue
|
485 -B
|
|
|
ANALOG OUTPUT
|
|
|
||
|
|
Line color
|
Description
|
||
|
Power
|
brown
|
Power supply
|
||
|
|
black
|
Power supply negative
|
||
|
Output
|
blue
|
The temperature signal is positive
|
||
|
|
green
|
The temperature signal is negative
|
||
|
|
yellow
|
Humidity signal positive
|
||
|
|
white
|
Humidity signal negative
|
||
|
NOTES: Two wiring method
1. Four - wire connection method
2. Three - wire connection method
|
|
|
||
Application
Our temperature humidity sensor is widely applied in communication engine room、automation、automatic control where needs the temperature and humidity monitor .The three parts about input power supply, temperature measurement unit and signal output of sensor are completely isolated. Safe and reliable, beautiful appearance, easy installation.
