Glear and bright spots,
high precision in long distance
Shell Mini size , saving mounting space
Industrial grade laser module, long service life
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MZLASER
-
Weight (KG):
-
0.02 KG
-
Product name:
-
9mm 650mw 5mw dot laser module
-
Shell Material:
-
Aluminum
-
Model:
-
CW
-
Output power:
-
<5mw(2-3.5MW)
-
SIze:
-
8x20mm
-
Operating Voltage(DC):
-
2.8-3.5V
-
Lens:
-
PMMA lens
-
Operating Temperature:
-
-10℃~ +40℃
-
Drive Type:
-
APC
-
Service Life:
-
>8000H
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
PMMA lens, Aluminum alloy shell
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
MZLASER
-
Weight (KG):
-
0.02 KG
-
Product name:
-
9mm 650mw 5mw dot laser module
-
Shell Material:
-
Aluminum
-
Model:
-
CW
-
Output power:
-
<5mw(2-3.5MW)
-
SIze:
-
8x20mm
-
Operating Voltage(DC):
-
2.8-3.5V
-
Lens:
-
PMMA lens
-
Operating Temperature:
-
-10℃~ +40℃
-
Drive Type:
-
APC
-
Service Life:
-
>8000H
Products Description

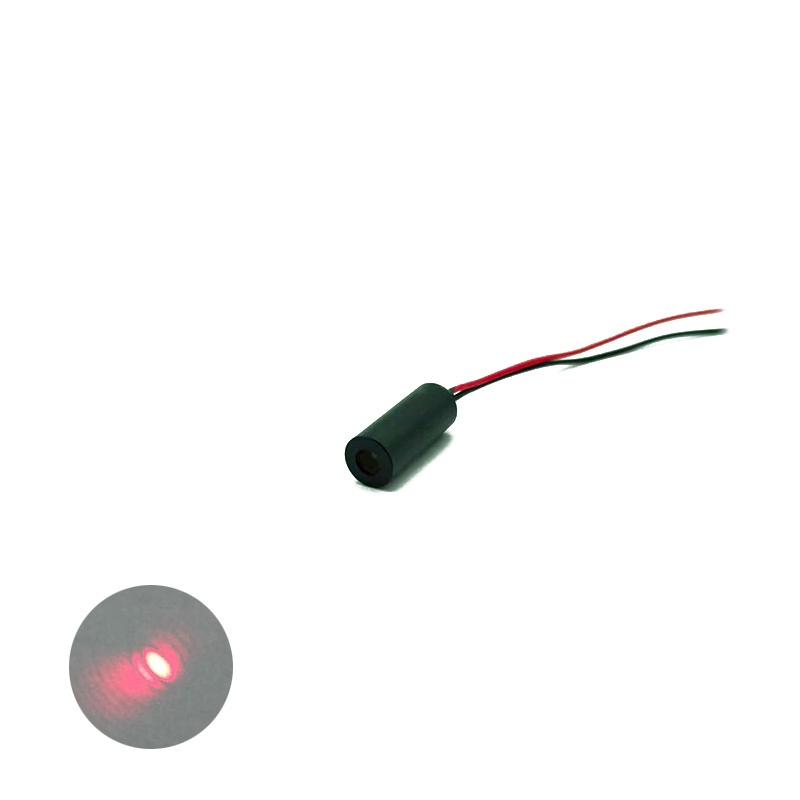

9mm 650mw 5mw dot laser module
Product Presentation
|
Laser Module
|
|
|
|
|
||||
|
Specifications(T=25℃)
|
|
|
|
|
||||
|
Model
|
|
MZS936505D
|
|
|
||||
|
Shape Parameter
|
|
|
|
|
||||
|
Shell Material
|
|
Aluminum
|
|
|
||||
|
Overall Dimensions
|
|
φ9×21mm
|
|
|
||||
|
Lead Length
|
|
150mm
|
|
|
||||
|
Optical Parameters
|
|
|
|
|
||||
|
Wavelength
|
|
650nm
|
|
|
||||
|
Spot Size
|
|
﹤10x14mm at 10m
|
|
|
||||
|
Divergence Angle
|
|
﹤1.2mard
|
|
|
||||
|
Lens material
|
|
PMMA lens
|
|
|
||||
|
Output Power
|
|
﹤5mw(2.0-3.5mw)
|
|
|
||||
|
Laser Safety
|
|
Class Ⅲa
|
|
|
||||
|
Environmental parameters
|
|
|
|
|
||||
|
Operating Temperature
|
|
-10℃~ +40℃
|
|
|
||||
|
Storage Temperature
|
|
-40℃~ +80℃
|
|
|
||||
|
Power Stability
|
|
﹤5%
|
|
|
||||
|
Wavelength Drift(nm/ºC）
|
|
0.25nm
|
|
|
||||
|
Electronic parameters
|
|
|
|
|
||||
|
Circuit Model
|
|
CW
|
|
|
||||
|
Operating Voltage
|
|
2.8-3.5V
|
|
|
||||
|
Operating Current
|
|
﹤50MA
|
|
|
||||
|
Drive Type
|
|
APC
|
|
|
||||
|
Service Life
|
|
﹥8000H
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Mechanical Dimension
Spot size Define
Details Images
Applications
Laser Welding
Biological Engineering
Laser Show
Multi-point interaction
Robot
Medical Treatment
Our Services
Customized lasers
Small customization
Our company has many products with different shell sizes. If our standard products cannot meet your exact requirements, you can contact us, and we will arrange the shell and specifications you want
Big customization
If our laser shell can't meet your needs, we can customize the new shell for you
At the same time, our engineering and design team has more than 10 years experience in low power laser module design.
Order process
:
Shipping & Delivery
Feeback
Dear friend,
Thanks for shopping from us, we will arrange shipment within 3 days after we got your payment and then inform you tracking number.
You can track it on:
http://www.17track.net/en/
we will reship if you still can not receive it within 45 days. If you have any problem, please feel free to contact us first before open a dispute. We will do our best to solve any problems and provide you with the best after-sale service. Your satisfaction and positive feedback is very important to us.
enjoy your shopping in our store ^_^
FAQ
Q: Are you trading company or manufacturer ?
● We are
manufacturer
.
Q: What is different between APC and ACC driving ?
● APC(Auto Power Control): automatically adjust the input current in order to output a constant value of optical power
● ACC(Auto Current Control):a way have a constant value of input current, while the output power may vary. Of course, what drives depends on your application needs.
Q:What is the CW mode or PWM mode ?
● CW (continuous wave mode): A conventional control method, continued to light up the work
● PWM(Pulse Width Modulation):Direct Drive PWM laser is available with a TTL driver board that allows the unit to be gated on and off;
Q: What is the Operating Voltage
● 3V/5V DC are standard laser operating voltage,we also can suply such as 12V DC or 24V DC if needed,
● MZLASER can be supplied with a mains adaptor which runs on 110-240V AC input and has one output to power the laser,If you require a custom lead length please contact us;
