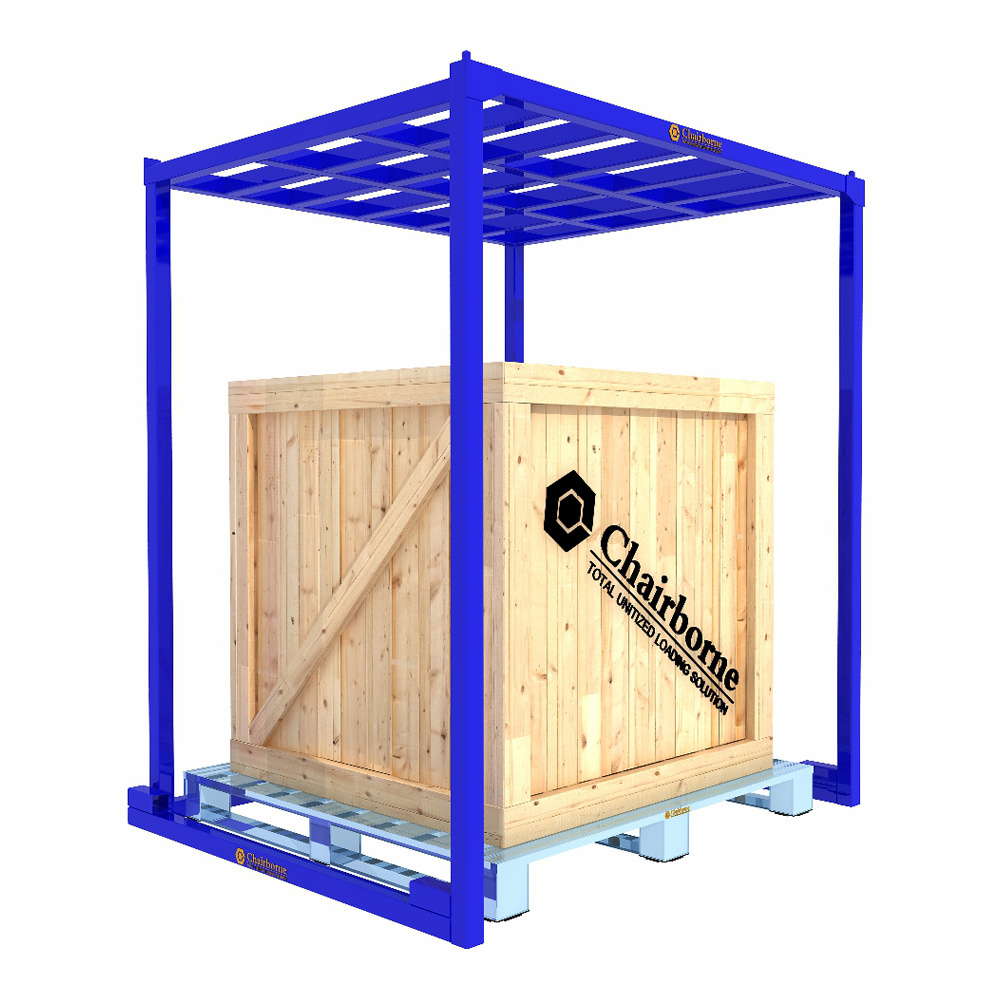

This product needs to be used together with pallet, which is suitable for rapid establishment and removal of three-dimensional storage space.
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
chairborne-stack rack
-
Model Number:
-
CDRERACK-01
-
Depth:
-
1000-3000mm
-
Weight Capacity:
-
1.5T
-
Width:
-
1000-3000mm
-
Height:
-
1000-3000mm
-
Certification:
-
GS
-
Rack Company Type:
-
Factories,Professional Manufacturer
-
Rack Certifications:
-
ISO9001 ,ISO14001
-
Rack Product warranty Lifetime:
-
2 Year More than 5 Years for normal use
-
Rack Product type:
-
Assemble Corrosion Protection, Esd Protection
-
Rack surface treatment:
-
Powder Coated, Cold Galvanized
-
Rack color:
-
Blue,Orange,Grey,as Your Requirement
-
Rack Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Rack texture:
-
Steel Q235,stainless steel,aluminum,
-
Rack The delivery port:
-
Dalian,as your reqirement
-
Rack Product Name:
-
Customized Portable Nestainer Stacking Pallet Frames
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Esd Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
chairborne-stack rack
-
Model Number:
-
CDRERACK-01
-
Depth:
-
1000-3000mm
-
Weight Capacity:
-
1.5T
-
Width:
-
1000-3000mm
-
Height:
-
1000-3000mm
-
Certification:
-
GS
-
Rack Company Type:
-
Factories,Professional Manufacturer
-
Rack Certifications:
-
ISO9001 ,ISO14001
-
Rack Product warranty Lifetime:
-
2 Year More than 5 Years for normal use
-
Rack Product type:
-
Assemble Corrosion Protection, Esd Protection
-
Rack surface treatment:
-
Powder Coated, Cold Galvanized
-
Rack color:
-
Blue,Orange,Grey,as Your Requirement
-
Rack Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Rack texture:
-
Steel Q235,stainless steel,aluminum,
-
Rack The delivery port:
-
Dalian,as your reqirement
-
Rack Product Name:
-
Customized Portable Nestainer Stacking Pallet Frames
Product Description
Customized Manufacture Portable Nestainer Rack Storage Stacking Pallet Frames Rack Factory Sell Cargo Storage Nestainer Rack
This kind of rack is composed of bottom beam, pillars, top support and several parts. Materials used are of high quality carbon structural steel, usually the specifications of the pipes is 40*40 square tube. Bottom beam, pillar and top support are all full penetration structure, stable structure, large carrying capacity. The embedded landing design makes it convenient for transportation.
This kind of rack is composed of bottom beam, pillars, top support and several parts. Materials used are of high quality carbon structural steel, usually the specifications of the pipes is 40*40 square tube. Bottom beam, pillar and top support are all full penetration structure, stable structure, large carrying capacity. The embedded landing design makes it convenient for transportation.
SAVE SPACE USED WITH PALLET STACKABLE HIGH CAPACITY
PRODUCT DIMENSIONS
① Bottom beam
② Pillar
③ Top support
Detailed Images
Stack Rack Characteristic I
Stack Rack Characteristic II
The rack can be arranged in different positions and combinations according to the situation of storage space to maximize space utilization.
Stack Rack Characteristic III
The rack can be stacked and placed when no load, which is convenient for storage and transportation.
Stack Rack Characteristic IV
The specifications of this rack can be customized according to user requirements.
Stack Rack Characteristic V
When stacking this product, the lowest storage space is not limited by strength, and goods of any weight can be placed.
Stack Rack Characteristic VI
The rack is equipped with positioning pin to improve positioning accuracy and stability during stacking.
Stack Rack Characteristic VII
The number of transverse bracing can be increased or decreased according to the actual loading specifications.
Related product link
Tire storage rack Collapsible box Wire mesh roll cage Plastic flat trolley
Our Laboratory
Theoretical experiment conclusion: the maximum stress of this pallet rack in the simulated ground under 1.5 tons of uniform load reached 147Mpa, mostly concentrated at the welding seam, which belongs to the stress concentration point. The majority of the stress was between 65Mpa and 82Mpa, which was less than the yield strength of the material 235Mpa.
CERTIFICATIONS
Why choose us
Contact Us
|
Email:
|
gav(@)steel-pallet.com
|
|
Phone:
|
+86 182 4232 2900
|
|
WhatsApp:
|
+86 182 4232 2900
|
|
WeChat:
|
+86 182 4232 2900
|
|
FaceBook:
|
https://www.facebook.com/www.chairborne.cn/
|
|
YouTube:
|
https://www.youtube.com/channel/UCEw52rEnsIkypRFOLxsg-JQ
|
|
Website:
|
http://www.steel-pallet.com
|
|
Address:
|
No.28-2, Block 1, Pacific Industrial Zone, Fushun 113000 China
|
FAQ
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Fushun City, Liaoning Province, China, close to Shenyang City. You can fly to Shenyang airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time?
A: It depends on the order quantity and product types. As general, within 25 working days, for ordinary order quantity..
5. Q: Which port will be used as loading port?
A: Dalian port
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order.
7. Q: Are sample order available?
A: Yes, sure!
8. Q: Is Galvanized Finish available?
A: Yes.
9. Q: How can I get your quick quotation?
A: As different clients and projects have different needs of product dimensions and specification, as general, for quick quotation, we need to know following info:
10.Q:What are the main products that your company produce?
A:Steel Pallet, Stillage, Racking Pallet, Roll Container, Selective Rack, Cantilever Rack, Mould Rack and so on.
Required Pallet Racking Dimension: Height*Depth*Length?
Number of Levels?
Loading Capacity of each level?
Racking Quantity?
If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
