Quick Details
-
Model Number:
-
Coreless Generator
-
Certification:
-
CE
-
Output Voltage:
-
24-380VAC
-
Product name:
-
Coreless Permanent Magnetism Generators
-
Application:
-
Wind Hybrid System
-
Magenent Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B
-
Rated rotor speed:
-
100-500RRM
-
Portection grade:
-
IP 54
-
Bearing brand:
-
NSK
-
Start torque:
-
<1N/M
-
Efficiency:
-
>85%
Quick Details
-
Rated Power:
-
Depend
-
Place of Origin:
-
Chanzghou
-
Brand Name:
-
Midfine
-
Model Number:
-
Coreless Generator
-
Certification:
-
CE
-
Output Voltage:
-
24-380VAC
-
Product name:
-
Coreless Permanent Magnetism Generators
-
Application:
-
Wind Hybrid System
-
Magenent Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B
-
Rated rotor speed:
-
100-500RRM
-
Portection grade:
-
IP 54
-
Bearing brand:
-
NSK
-
Start torque:
-
<1N/M
-
Efficiency:
-
>85%
Product Description

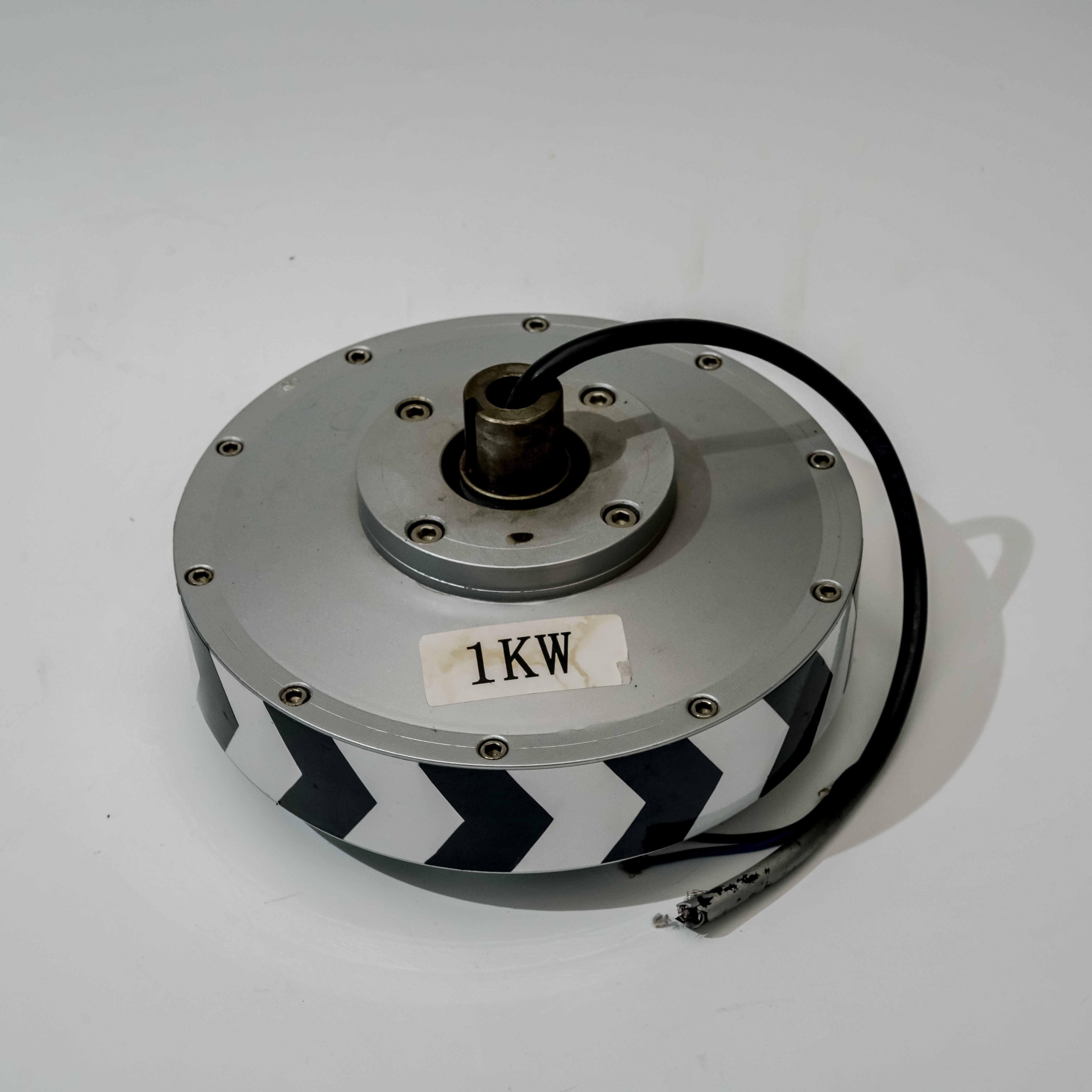

The coreless generator
is a power generation device based on magnetic levitation technology.
It utilizes magnetic force to suspend the generator rotor in mid-air, eliminating the friction and wear of conventional mechanical bearings. This design offers higher efficiency and reliability.
It is commonly used in
vertical axis wind turbines
and other generator systems that require low startup torque, low rated speed, low startup wind speed, lightweight, and small size.
Product advantages
|
1
|
Utilizes the latest "precision coil" technology, resulting in an extremely low startup torque of <0.3N.M.
|
|
|
|
|||
|
2
|
Utilizes disc coreless motor, offering a smaller size and lighter weight.
|
|
|
|
|||
|
3
|
Lifespan is 8 times longer than traditional motors.
|
|
|
|
|||
|
4
|
Gearless, direct drive, low-speed operation.
|
|
|
|
|||
|
5
|
Uses high-standard, high-quality components suitable for harsh and extreme environments.
|
|
|
|
|||
|
6
|
High efficiency with low mechanical resistance energy loss.
|
|
|
|
|||
|
7
|
Aluminum alloy outer frame and special internal structure provide excellent heat dissipation performance.
|
|
|
|
|||
Off grid generator system
Grid tied generator system
Product Paramenters
|
Model
|
CXF-0.5KW
|
CXF-1KW
|
CXF-1KW
|
CXF-2KW
|
CXF-2KW
|
||||
|
Rated Power
|
0.5KW
|
1KW
|
1KW
|
2KW
|
2KW
|
||||
|
Rated Rotate Speed
|
200 RPM
|
180RPM
|
200RPM
|
120RPM
|
180RPM
|
||||
|
Rated Voltage
|
56Vac
|
56Vac
|
56Vac
|
115Vac
|
115Vac
|
||||
|
Rated Current
|
9A
|
12A
|
17.9A
|
10A
|
17.4A
|
||||
|
Efficiency
|
>85%
|
|
|
|
|
||||
|
Insulating Resistance
|
100Mohm Min(500V DC)
|
|
|
|
|
||||
|
Leakage Level
|
<5 ma
|
|
|
|
|
||||
|
Start Torque
|
<0.1N/M
|
<0.3 N/M
|
|
<0.5 N/M
|
<0.3 N/M
|
||||
|
Phase Type
|
3 Phase
|
|
|
|
|
||||
|
Structure
|
Out rotor
|
|
|
|
|
||||
|
Stator
|
Coreless wire coil
|
|
|
|
|
||||
|
Rotor
|
Rare Earth Permanent Magnet
|
|
|
|
|
||||
|
Generator Shell Diameter
|
320
|
380
|
|
550
|
450
|
||||
|
Generator Shell Length
|
232
|
241
|
241
|
330
|
258
|
||||
|
Weight
|
20
|
32
|
32
|
75
|
51
|
||||
|
Shaft drameter
|
45
|
50
|
50
|
78
|
59
|
||||
|
Generator shell material
|
Aluminum alloy
|
|
|
|
|
||||
|
Shaft material
|
Carbon steel
|
|
|
|
|
||||
|
Bearing
|
Deep groove ball bearing
|
|
|
|
|
||||
|
Model
|
CXF-3KW
|
CXF-3KW
|
CXF-5KW
|
CXF-5KW
|
CXF-10KW
|
||||
|
Rated Power
|
3KW
|
3KW
|
5KW
|
6KW
|
10KW
|
||||
|
Rated Rotate Speed
|
100RPM
|
180RPM
|
100RPM
|
150RPM
|
100RPM
|
||||
|
Rated Voltage
|
380VAC
|
380VAC
|
380VAC
|
380VAC
|
400VAC
|
||||
|
Rated Current
|
4.6A
|
4.7A
|
7.6A
|
15.2A
|
14.5A
|
||||
|
Efficiency
|
>85%
|
|
|
|
|
||||
|
Insulating Resistance
|
100Mohm Min(500V DC)
|
|
|
|
|
||||
|
Leakage Level
|
<5 ma
|
|
|
|
|
||||
|
Start Torque
|
<1 N/M
|
<0.5 N/M
|
|
<1 N/M
|
|
||||
|
Phase Type
|
3 Phase
|
|
|
|
|
||||
|
Structure
|
Out rotor
|
|
|
|
|
||||
|
Stator
|
Coreless wire coil
|
|
|
|
|
||||
|
Rotor
|
Rare Earth Permanent Magnet
|
|
|
|
|
||||
|
Generator Shell Diameter
|
620
|
550
|
700
|
620
|
770
|
||||
|
Generator Shell Length
|
410
|
330
|
400
|
410
|
590
|
||||
|
Weight
|
110
|
65
|
125
|
110
|
245
|
||||
|
Shaft drameter
|
80
|
78
|
98
|
80
|
85
|
||||
|
Generator shell material
|
Aluminum alloy
|
|
|
|
|
||||
|
Shaft material
|
Carbon steel
|
|
|
|
|
||||
|
Bearing
|
Deep groove ball bearing
|
|
|
|
|
||||
Why Choose Us
Midfine Technology
is a globally trusted strategic partner in clean energy, committed to promoting energy transformation and ensuring affordable, reliable, and sustainable energy for all, thus building a "sustainable and better" future.
Our company is committed to the production and research of permanent magnet generators, wind turbines, and solar energy systems.etc.We hold multiple patents for inventions and designs in these fields. With our excellent international trade team, we are dedicated to providing professional consulting services for you.
Rated Power Testing
Assessing the performance and reliability of the generator under rated load.
