Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3312x3312x3862
-
Weight (T):
-
82.8 T
-
Model Number:
-
QMYG850
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Customized
-
After sales Service Provided:
-
Online Support,Field maintenance and repair service
-
After Warranty Service:
-
Online Support,Field maintenance and repair service
-
Local Service Location:
-
Overseas
Quick Details
-
Machine Type:
-
cubic press
-
Slide Stroke (mm):
-
95
-
Return Force (kN):
-
68000 kN
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
3312x3312x3862
-
Weight (T):
-
82.8 T
-
Model Number:
-
QMYG850
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Customized
-
After sales Service Provided:
-
Online Support,Field maintenance and repair service
-
After Warranty Service:
-
Online Support,Field maintenance and repair service
-
Local Service Location:
-
Overseas
Products Description

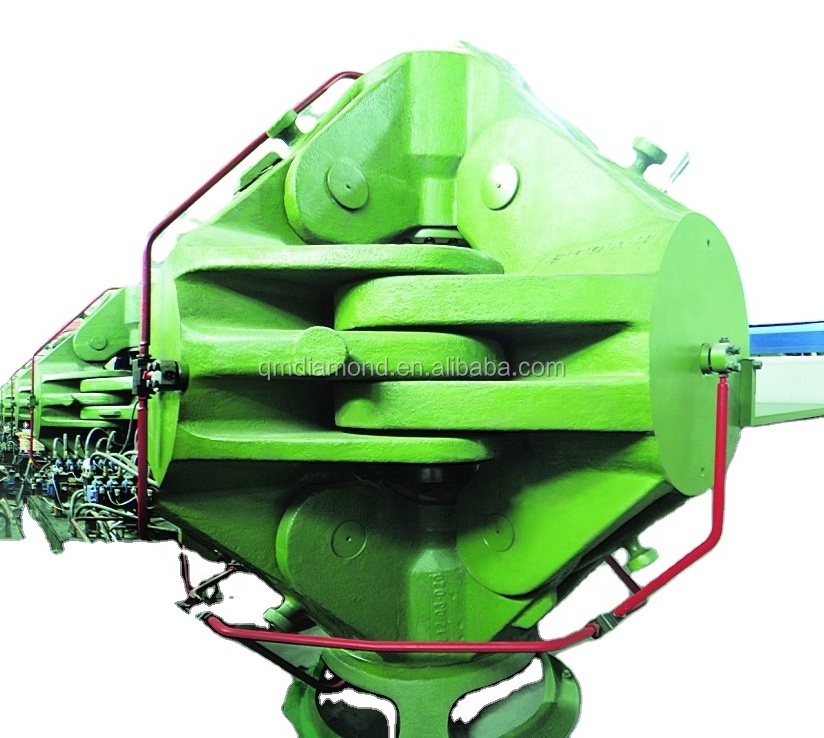

HPHT hydraulic cubic press machine
QMYG850 HPHT synthetic diamond equipment uses a cube-shaped volume. Cubic press is this machine's official name.It uses multiple anvils to put pressure on the volume. Originally only four anvils were used, however, cubicpresses now use six anvils because it maximizes the pressure available. They are smaller than belt presses. It is the most commonly used system for producing synthetic diamonds, diamond micro-powder, PDC and so on. It has been used at home and abroad
mainly because of its low cost and high production efficiency.
mainly because of its low cost and high production efficiency.
Product Paramenters
|
Model
|
|
QMYG850
|
|
|
|||
|
Diameter of Cylinder
|
|
850(mm)
|
|
|
|||
|
Working Pressure
|
|
95(MPa)
|
|
|
|||
|
Distance of Travel
|
|
91(mm)
|
|
|
|||
|
Opening Height
|
|
1080(mm)
|
|
|
|||
|
Overall Dimension
|
|
3312x3312x3862
|
|
|
|||
|
Weight
|
|
82.8T
|
|
|
|||
Product Display
Production Range
PCBN cutter
PCD
LAB GROWN DIAMOND
The full name of PDC is "Polycrystalline diamond composite", which apply to the head of drill and superhard cutting tool.
The full name of PCBN is "Polycrastalline Cubic Boron Nitride". Normally it is apply to superhard cutting tool and punching hole
drill etc.
There are more and more jewerly level synthetic diamonds produced now. With the synthetic technique progress the quality of
diamond is getting better and better.
diamond is getting better and better.
Product packaging
Packaging Detail: Export wooden box seperately and load in 2*20GP and 1*40'HQ for shipping.
