Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lansen
-
Marking Head Brand:
-
Lansen
-
Weight (KG):
-
58 KG
-
Marking Area:
-
110*110mm
-
Warranty of core components:
-
2 years
-
Laser power:
-
30w
-
Minimum Line Width:
-
0.02mm
-
Minimum Character:
-
0.15mm
-
Laser Wavelength:
-
1064nm
-
Divergence:
-
0.3mard
-
Q-frequency:
-
20KHz~30KHz
-
Marking Range:
-
112*112
-
Beam Quality:
-
M2:1.2~1.8
-
Laser source:
-
IPG Raycus Max
-
warranty:
-
2 years
Quick Details
-
Working Accuracy:
-
±0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT, LAS, JPG GIF TIF Etc
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lansen
-
Marking Head Brand:
-
Lansen
-
Weight (KG):
-
58 KG
-
Marking Area:
-
110*110mm
-
Warranty of core components:
-
2 years
-
Laser power:
-
30w
-
Minimum Line Width:
-
0.02mm
-
Minimum Character:
-
0.15mm
-
Laser Wavelength:
-
1064nm
-
Divergence:
-
0.3mard
-
Q-frequency:
-
20KHz~30KHz
-
Marking Range:
-
112*112
-
Beam Quality:
-
M2:1.2~1.8
-
Laser source:
-
IPG Raycus Max
-
warranty:
-
2 years
The Fiber laser marking machine is the best choice for the customers who have special requirements to the smallest & finest laserbeam and character .

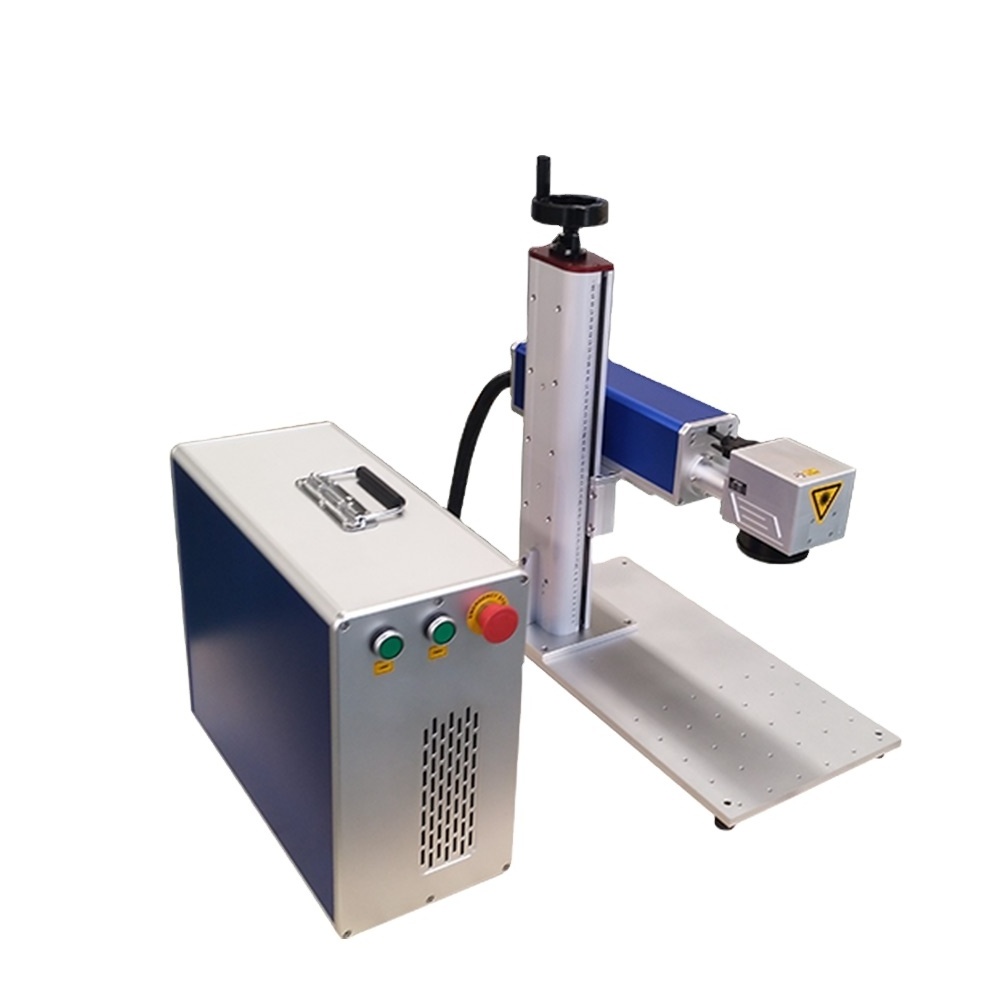

Mini Fiber Laser Marking machine has the advantages of small size, easy to moce, and operation functions is sufficient. Also thismachine can adds various optional parts to assist the special work requirements.
|
Model
|
Mini fiber laser marking machine
|
|
|
|
|||
|
Laser Power
|
30W
|
20w
|
50w
|
100w
|
|||
|
Laser Wavelength
|
1064nm
|
|
|
|
|||
|
Q-frequency
|
20KHz~30KHz
|
|
|
|
|||
|
Divergence
|
0.3mard
|
|
|
|
|||
|
Marking Range
|
110*110mm
|
|
|
|
|||
|
Minimum Line Width
|
0.02mm
|
|
|
|
|||
|
Minimum Character
|
0.15mm
|
|
|
|
|||
|
Marking Depth
|
0 ~0.5mm
|
|
|
|
|||
|
Engraving Line Speed
|
≤7000mm/s
|
|
|
|
|||
|
Repeatability Accuracy
|
±0.001mm
|
|
|
|
|||
|
Beam Quality
|
M2:1.2~1.8
|
|
|
|
|||
|
Marking Format
|
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
|
|
|
|
|||
|
Graphic Format Supported
|
BMP,IPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,etc
|
|
|
|
|||
|
Working Voltage
|
220V±10%/50Hz/4A
|
|
|
|
|||
|
Unit Power
|
<0.5kw
|
|
|
|
|||
|
Use of the Environment
|
Clean and Dust Free or Dust less
|
|
|
|
|||
|
Working Condition:Humidity
|
5%-75%,Free of Condensed Water
|
|
|
|
|||
|
Laser Module Life
|
>100000 hours
|
|
|
|
|||
Application materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
20 watt Portable Mini Bird Ring human face marking Laser machine price samples
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
