Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PROUD EAGLE
-
Model Number:
-
LM253/40-R12AD
-
Torque:
-
150N.m
-
Product Name:
-
High Speed 96V 5000W Electric Car Brushless Dc Wheel Hub Motor
-
Design:
-
Single shaft
-
Color:
-
Black
-
Size:
-
12 inch
-
Packing:
-
1pcs/carton
-
Custom Order:
-
YES
-
OEM:
-
YES
-
Material:
-
Aluminum,iron,magnets,copper
-
Rated Power:
-
3000W
Quick Details
-
Speed(RPM):
-
580rpm~900rpm
-
Continuous Current(A):
-
65A
-
Efficiency:
-
88%
-
Warranty:
-
18 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PROUD EAGLE
-
Model Number:
-
LM253/40-R12AD
-
Torque:
-
150N.m
-
Product Name:
-
High Speed 96V 5000W Electric Car Brushless Dc Wheel Hub Motor
-
Design:
-
Single shaft
-
Color:
-
Black
-
Size:
-
12 inch
-
Packing:
-
1pcs/carton
-
Custom Order:
-
YES
-
OEM:
-
YES
-
Material:
-
Aluminum,iron,magnets,copper
-
Rated Power:
-
3000W

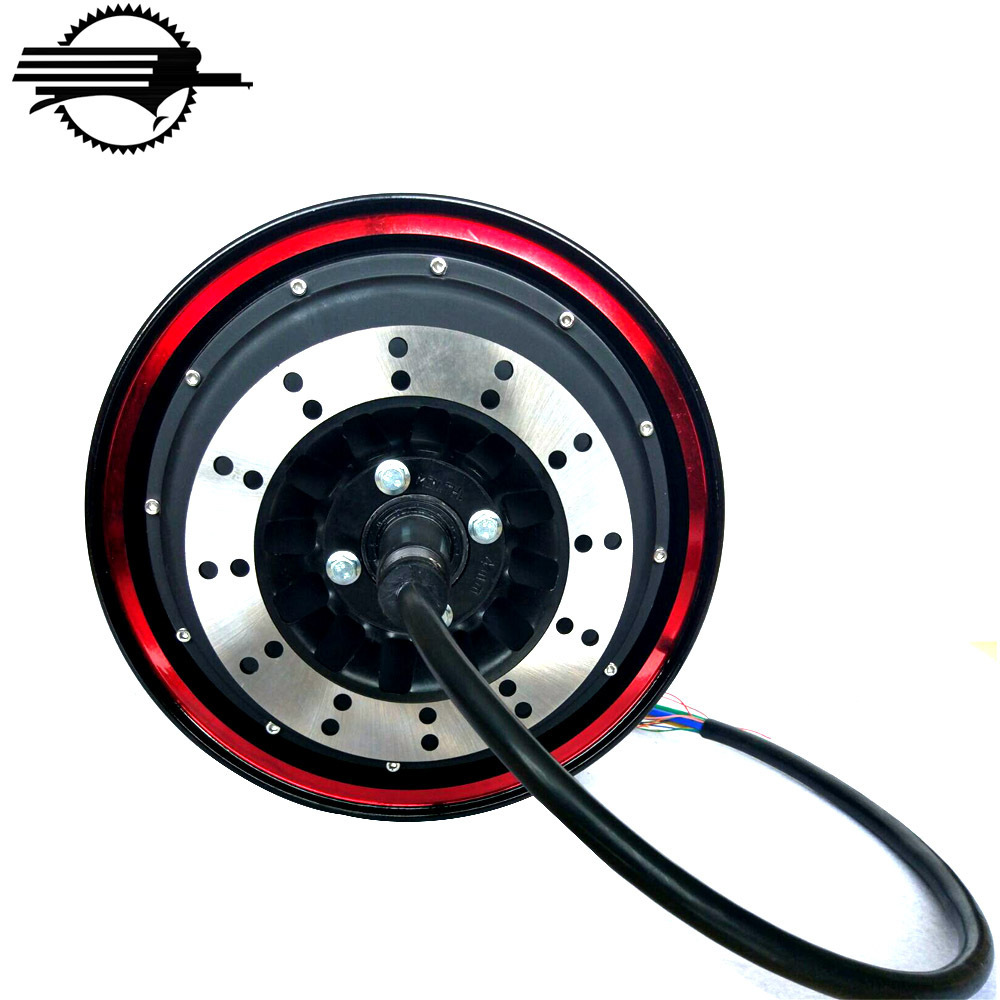

High Speed 96V 5000W Electric Car Brushless Dc Wheel Hub Motor
|
Motor power |
Rated voltage |
72v 96v |
|
|
Maximum power |
5 000W |
|
|
Rated power |
3000W |
|
|
Maximum battery current |
80A |
|
|
C ontinuous current |
65 A |
|
|
RPM without load |
580rpm~900rpm |
|
|
Speed with load |
45~50km/h ( Depends on weight of vehicle ) |
|
|
Maximum torque |
150N.m |
|
Motor specs |
Hall sensor voltage |
5v |
|
|
P hase current max |
220~280A |
|
|
Motor winding temp. res. |
130 ° |
|
|
M agnets temp.res |
150 ° |
|
|
Number of pole pairs |
28 |
|
|
Hall sensor angle |
120 ° |
|
Motor assembly specs |
C able length |
1000mm |
|
|
Shaft length |
270mm |
|
|
Tire recommended |
130/70-12 120/70-12 |
|
|
D rum brake type diameter |
110mm 130mm |
|
|
Disc brake diameter |
180mm~220mm |
|
|
Wheel diameter |
321mm |
|
|
W heel material |
Aluminum |
|
|
Wheel width |
72mm |
|
P acking info |
N et weight |
12kg |
|
|
C arton size |
carton 45*45*57 1pcs/ carton weight 12kg |
|
|
|
