Quick Details
-
Tilting degree:
-
0-85°
-
Max.Working Dimensions:
-
3200*2000*180(mm)
-
Workbench rotating degree:
-
0°-90°/45°-90°
-
Main motor power:
-
18.5KW
-
Diameter of blade:
-
600 mm
-
Water consumption:
-
3.6 m3/h
-
Overall dimensions:
-
6000*4800*3200(mm)
-
The total weight:
-
6600KG
-
Name:
-
Infrared Guide Post Stone Bridge Cutting Machine
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
18.5KW
-
Blade Diameter:
-
350-600mm
-
Tilting degree:
-
0-85°
-
Max.Working Dimensions:
-
3200*2000*180(mm)
-
Workbench rotating degree:
-
0°-90°/45°-90°
-
Main motor power:
-
18.5KW
-
Diameter of blade:
-
600 mm
-
Water consumption:
-
3.6 m3/h
-
Overall dimensions:
-
6000*4800*3200(mm)
-
The total weight:
-
6600KG
-
Name:
-
Infrared Guide Post Stone Bridge Cutting Machine

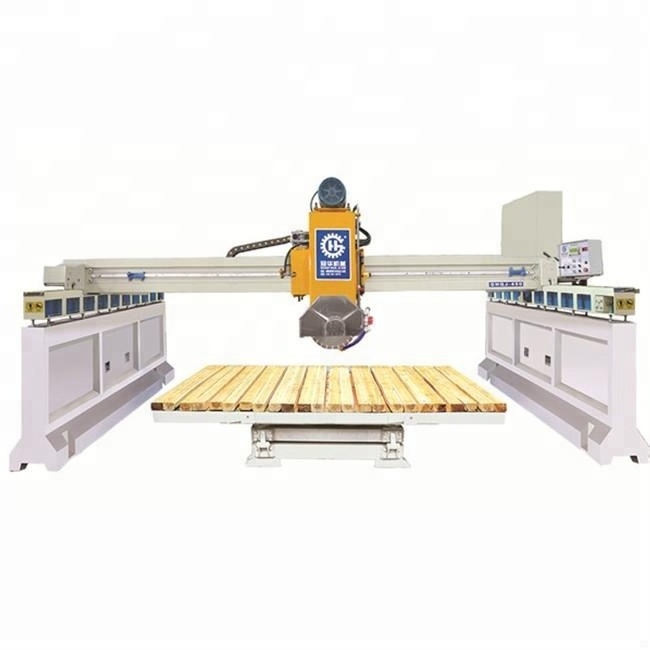

Infrared Guide Post Stone Bridge Cutting Machine
Product Application
This machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.
|
Model
|
GH-600 Infrared Guide Post Stone Bridge Cutting Machine
|
|
Blade Diameter
|
350-600mm
|
|
Max Working Dimensions(L*W*H)
|
3200*2000*180MM
|
|
Workbench tilting degree
|
0°-85°
|
|
Workbench roating degree
|
0°-90°+45°/0°-45°-90°-360°
|
|
Main motor power
|
18.5kw
|
|
Water consumption
|
3.6m^3/h
|
|
Machine Weight
|
6600kg
|
|
Trolley Dimension
|
6000*4800*3200mm
|
Lifting arm to help customers to transport the slab
Cutting Blade for marble or granite for customer's different requirements
|
Packaging
|
|
|
|
Size
|
6000*4800*3200mm
|
|
|
Weight
|
6600KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly,
please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
