Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Longwell
-
Model Number:
-
AC-65mm
-
Voltage:
-
115/230V
-
Fan casing material:
-
galvanized steel
-
Bearing:
-
Ball Bearing
-
motor type:
-
AC Shaded pole motor
-
Fan Diameter:
-
100mm
-
fan length:
-
customization available up to 1300mm
-
Application:
-
Over , heater , air purifier , home appliances , floor heating ,
-
Speed control:
-
1-2-3 speeds
-
lead time:
-
15-25days
-
Feature:
-
Low Noise Energy Saving
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
Other
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Longwell
-
Model Number:
-
AC-65mm
-
Voltage:
-
115/230V
-
Fan casing material:
-
galvanized steel
-
Bearing:
-
Ball Bearing
-
motor type:
-
AC Shaded pole motor
-
Fan Diameter:
-
100mm
-
fan length:
-
customization available up to 1300mm
-
Application:
-
Over , heater , air purifier , home appliances , floor heating ,
-
Speed control:
-
1-2-3 speeds
-
lead time:
-
15-25days
-
Feature:
-
Low Noise Energy Saving
|
Types :
|

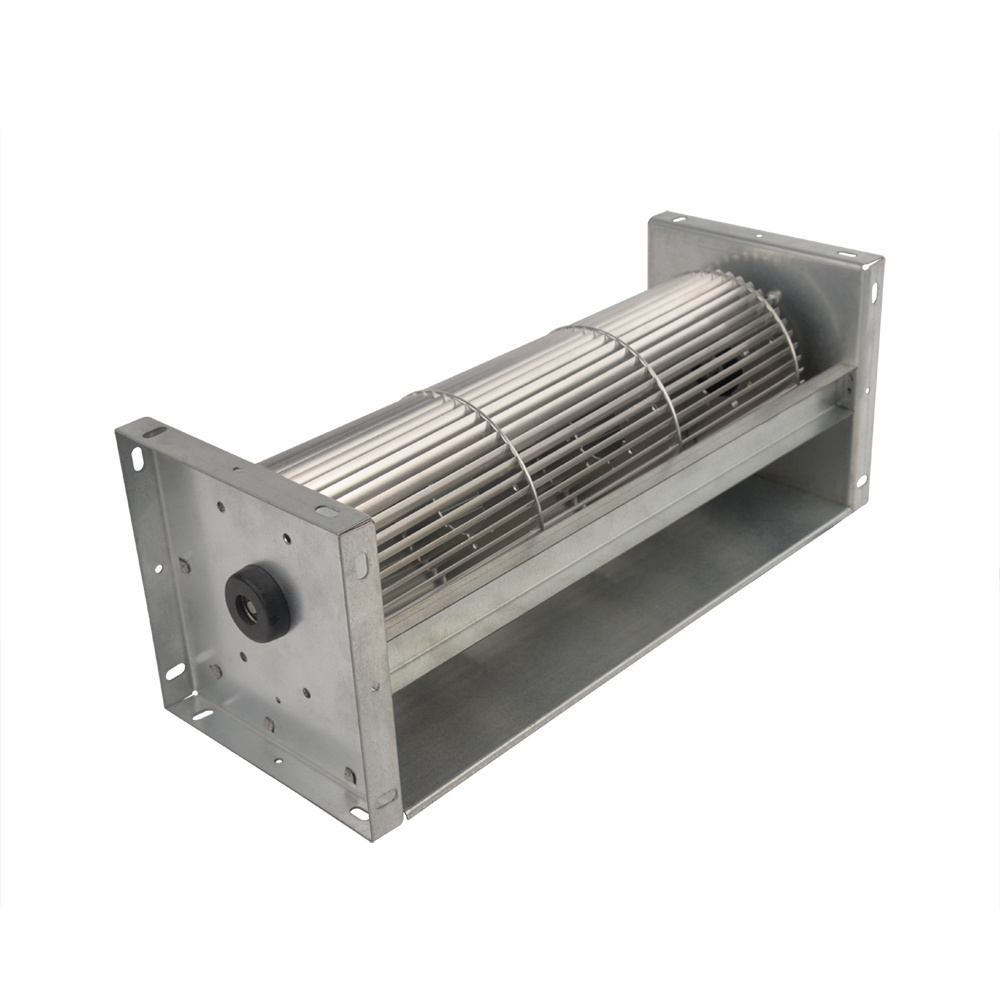

120mm AC Cross Flow Heat Exchanger Fan Tangential Fan for Convector, Air Ventilation, and Cooling System
|
|
Voltage Ranges :
|
230V
|
|
Frequency :
|
50/60 Hz
|
|
Diamter :
|
120mm ( impeller diameters )
|
|
Motor Types :
|
BLEC External Rotor Motor
|
|
Speed Control :
|
0-10V Signal / PWM / RS485(Optional)
|
|
Max.ambient Temp:
|
-25℃～ +60℃
|
|
Certificating :
|
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
|
|
Protection Level:
|
IP44 ,IP54,IP55
|
|
Electronic Protection:
|
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
|
|
Working & Storage
|
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
|
|
Balancing
|
According to JB/T 9101-1999 requirements G6.3
|
|
Product Standards :
|
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
|
|
Mainly Applications
|
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
|
