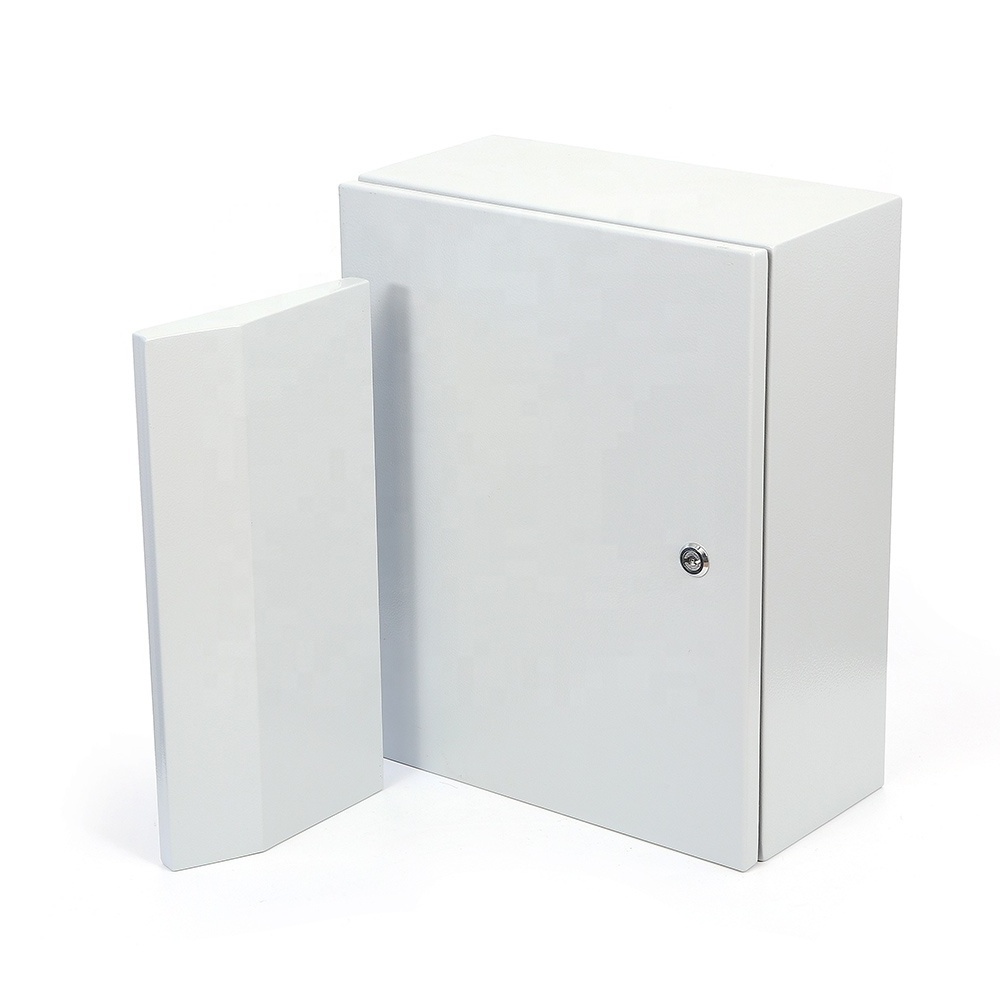

Smart Metal Enclosure for Medical Oxygen Valve Control Box IP66

Smart Metal Enclosure for Medical Oxygen Valve Control Box IP66

FOB Reference Price: Get Latest Price

≥10 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CHANGLI

Model Number:: JXF 1-8060/20C

External Size:: 800*600*200mm

Material:: Cold Rolled Steel

Color:: RAL 7032

Certificate:: CCC CE

Finish:: Standard Cycle Thermosetting Epoxypolyester Powder Coating

Impact Resistant Level:: IK10

Protection degree:: GB4208-1993 IP55

Function:: Waterproof Dustproof

Customization:: Accept Enclosure Customized

Usage:: Distribution Terminal

Thickness:: 1.0/1.0/1.0mm

Quick Details

Protection Level:: IP66

Type:: DISTRIBUTION BOX

Place of Origin:: Zhejiang, China

Brand Name:: CHANGLI

Model Number:: JXF 1-8060/20C

External Size:: 800*600*200mm

Material:: Cold Rolled Steel

Color:: RAL 7032

Certificate:: CCC CE

Finish:: Standard Cycle Thermosetting Epoxypolyester Powder Coating

Impact Resistant Level:: IK10

Protection degree:: GB4208-1993 IP55

Function:: Waterproof Dustproof

Customization:: Accept Enclosure Customized

Usage:: Distribution Terminal

Thickness:: 1.0/1.0/1.0mm

Product Description

JXF 1-8060/20C Foundation Metal Distribution Box

Main Material: Cold Rolled Steel

Fixing Board Material：Galvanized Sheet or Cold-rolled Steel Plate (Color: Orange)

Size: H800*W600*D200mm

Body/Mounting Plate/Door Thickness: 1.0/1.0/1.0mm

Technology: One-time Proceeded by CNC Automatic Production Line; Standard Cycle Thermosetting Epoxypolyester Powder Coating; Casted by Automatic Sealing Strip Casting Machine; Removable Hinge Connected with Locking Nuts;

Advantage: Dust-proof, Water-proof, Good Appearance and Durable Usage, Flexible Rotation;

JXF series foundation distribution box (for export) has 30 kinds of specifications, using cold rolled steel totally, made by advanced technology and CNC automatic production line which increases its compressive strength and productivity and reduces welding process. The finish is treated by cycle thermosetting epoxy polyester electrostatic spraying and powder coating, nice and durable. The door board of the box is casted by automatic sealing strip casting machine, with the advantages of dust-proof and water-proof. There are outlet holes in the bottom of the box with sealing strip cover, which has IP55 protection level. In the box, there is a mounting board, which enable to fix variety electric equipments and components. The door board can open flexibly more than 90 degrees, normally even under extrusion, changeable from left to right mutually with high strength. It can not be out of welding and broken. JXF distribution boxes are widely used in the field of electrical equipment and supplies. Our market is all over the world, such as Middle Asia, South Asia, Middle East, Africa, South America, etc., and gains definite approval and favorable comments from customers.

Detailed Images

Sealing Strip

One-time Casted by Automatic Sealing Strip Casting Machine

Advantages: casted once, crusted by own, water-proof, fire-proof, high temperature resistance, high intensity and fine appearance compared with traditional pasted sealing strip

Hinges

Removable Hinge Connected with Locking Nuts

Advantages: normally open even under extrusion, changeable from left to right mutually with fine appearance, high strength, un-welding and un-broken compared with traditional welding hinges.

Box Body

Processed by CNC Automatic Production Line

Advantages: special curling process, increases the compressive strength of the box, and reduces the welding steps which highly increase more than 20 times productivity than traditional production methods.

The Components of the Products:

Enclosure Body /

Mounting Board /

Lock /

Inlet and Outlet Knockouts /

Inlet and Outlet Hole Sealing Plate /

Seals /

Mounting Fasteners

Packing & Delivery

Packing:

With Well Protective Plastic Film or Bubble Bag Packed into Standard Double-layer Corrugated Carton for Export. I Piece Seperated into 1 Carton or according to Customer's Requirements.
