Quick Details
-
Country of Origin:
-
Guangdong, China
-
Brand:
-
Minew
-
Frequency:
-
2400 to 2483 MHz
-
Max. Output power:
-
+4dBm
-
GPIO Quantity:
-
6
-
Module size:
-
15.8*12*2mm
-
Antenna Type:
-
PCB
-
Operating temperature range:
-
-40~+85°C
-
Transmitt Range:
-
10-60 Meters
-
Metal Shield Cover:
-
Yes
-
Certification:
-
BQB FCC CE RoHs Reach
Quick Details
-
Model Number:
-
MS46SF11
-
Chipset:
-
nRF52805, nRF52805
-
Application:
-
Internet of Things, Smart Sensor, Medical Device
-
Country of Origin:
-
Guangdong, China
-
Brand:
-
Minew
-
Frequency:
-
2400 to 2483 MHz
-
Max. Output power:
-
+4dBm
-
GPIO Quantity:
-
6
-
Module size:
-
15.8*12*2mm
-
Antenna Type:
-
PCB
-
Operating temperature range:
-
-40~+85°C
-
Transmitt Range:
-
10-60 Meters
-
Metal Shield Cover:
-
Yes
-
Certification:
-
BQB FCC CE RoHs Reach
Certification
Minew module can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000!
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000!
Products Description
Smallest size module: 15.8*12*2mm
Optional Master/Slave UART supported
Preloading cutomers' firmware before shipment allowed
Preloading cutomers' firmware before shipment allowed
BLE Mesh, ANT
+
, NFC function supported

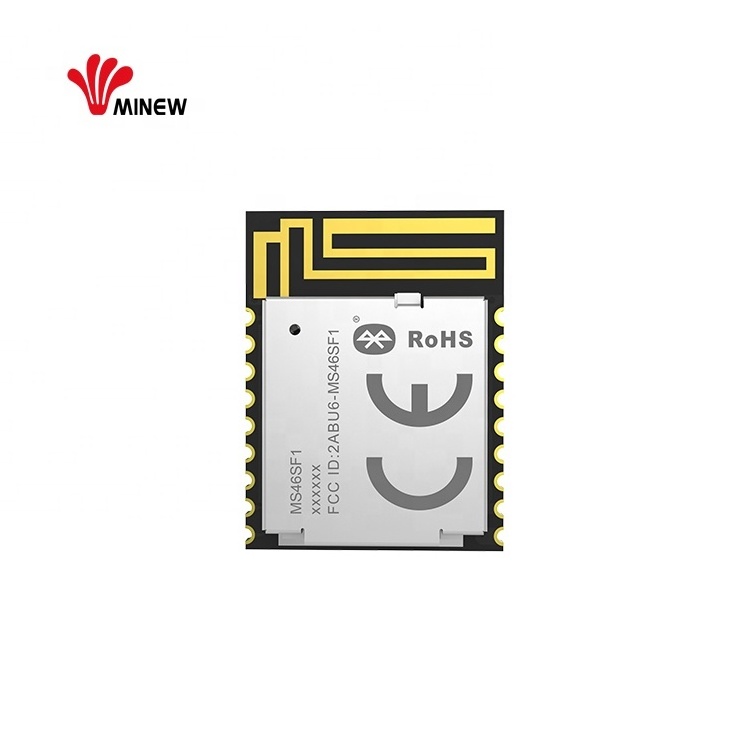

MS46SF11 is a ultra small size, highly flexible, ultra-low power wireless BLE 5.0 Module based on nRF52805 SoCs; Its powerful 32-bit ARM Cortex TM M4 CPU, a 192KB flash memory, a 24KB RAM and integrating a 2.4GHz transceiver can offer the perfect solution for Bluetooth connectivity.
MS46SF11 can meet the most demanding applications, it allows faster time to market with high performance,low power management and reduced development cost. Also, its range is estimated up to 60 meters in open space.
MS46SF11 is a ultra small size, highly flexible, ultra-low power wireless BLE 5.0 Module based on nRF52805 SoCs; Its powerful 32-bit ARM Cortex TM M4 CPU, a 192KB flash memory, a 24KB RAM and integrating a 2.4GHz transceiver can offer the perfect solution for Bluetooth connectivity.
MS46SF11 can meet the most demanding applications, it allows faster time to market with high performance,low power management and reduced development cost. Also, its range is estimated up to 60 meters in open space.
Feature
High Quality Components and Manufacturing
|
Frequency:
|
|
2400 to 2483 MHz
|
|
|
|||
|
Max. Output power:
|
|
-20~+4dBm
|
|
|
|||
|
Single power supply:
|
|
1.7-3.6V
|
|
|
|||
|
Transmitt Range:
|
|
10-60 Meters
|
|
|
|||
|
Chipset:
|
|
Nordic nRF52805
|
|
|
|||
|
GPIO Quantity:
|
|
6
|
|
|
|||
|
Module size:
|
|
15.8*12*2mm
|
|
|
|||
|
Operating temperature range:
|
|
-40 to 85 degree Celsius
|
|
|
|||
|
Flash and RAM:
|
|
192KB Flash and 24KB RAM
|
|
|
|||
|
Processor:
|
|
ARM Cortex-M4F processor
|
|
|
|||
|
Cover:
|
|
Metal shielding with marking
|
|
|
|||
|
Antenna Type:
|
|
PCB antenna
|
|
|
|||
|
Additional Functions:
|
|
BLE ANT
+
|
|
|
|||
|
32.768K Crystal Oscillator
|
|
Built inside
|
|
|
|||
Module Size
Pin Definition
Application
Company Profie
SHENZHEN MINEW TECHNOLOGIES CO LTD
MINEW has been focusing on developing and manufacturing iBeacon, BLE module and other RF technology-based creative products and technical services.
As a professional factory, Minew has got the ISO9001&ISO14001 certification with the growing R&D platform.
All of products have been approved by CE, FCC, RoHS and Bluetooth QDID/EPL certifications.
Minew can meet your requirements based on strong R&D capability and production capability, such as OEM, ODM and Special needs.
MINEW has been focusing on developing and manufacturing iBeacon, BLE module and other RF technology-based creative products and technical services.
As a professional factory, Minew has got the ISO9001&ISO14001 certification with the growing R&D platform.
All of products have been approved by CE, FCC, RoHS and Bluetooth QDID/EPL certifications.
Minew can meet your requirements based on strong R&D capability and production capability, such as OEM, ODM and Special needs.
