Quick Details
-
Network:
-
wired
-
Output:
-
Switching Transducer
-
Product name:
-
ceiling mounted adjustable PIR motion sensor light switch
-
Detection angle:
-
360°
-
Time Delay:
-
10sec to 7min(adjustable)
-
Detection Range:
-
max.6m (<24℃)
-
Installation height:
-
2.2-4m
-
Rated Loading:
-
Max.800W (110-130V/AC), 1200W(220V-240VAC)
-
Input voltage:
-
110-130V/AC, 220-240V/AC
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
ASK-S05
-
Network:
-
wired
-
Output:
-
Switching Transducer
-
Product name:
-
ceiling mounted adjustable PIR motion sensor light switch
-
Detection angle:
-
360°
-
Time Delay:
-
10sec to 7min(adjustable)
-
Detection Range:
-
max.6m (<24℃)
-
Installation height:
-
2.2-4m
-
Rated Loading:
-
Max.800W (110-130V/AC), 1200W(220V-240VAC)
-
Input voltage:
-
110-130V/AC, 220-240V/AC

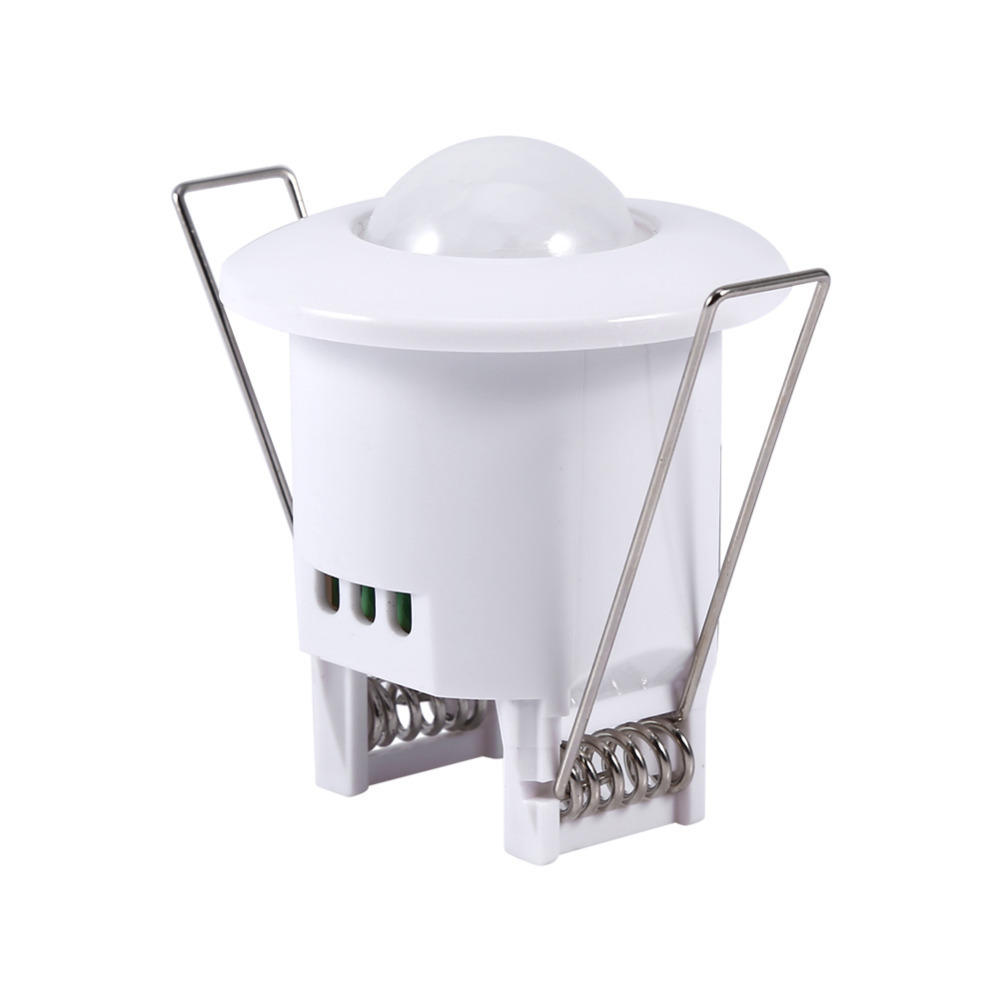

Recessed surface ceiling mounted adjustable PIR motion sensor light switch
1) This PIR sensor can be installed in the ceiling
2) High sensitivity
1) The motion sensor identify day and night automatically
2) Detection distance can be set according to installation position and detection field
3) The detection show
4) Time-delay is added continually, during the interval of itwo short detect signal, the light remains on
| Item No. | ASK-S05 |
| Input voltage | 110-130V/AC, 220-240V/AC |
| Rated Loading | Max.800W (110-130V/AC),1200W (220-240V/AC) |
| Light Control | 3-2000LUX(adjustable) |
| Detect Distance (radii.) | max.6m (<24℃) |
| Time delay | 10sec to 7min(adjustable) |
| Installation height | 2.2-4m |
| Detection angle | 360° |
| Working humidity | <93%RH |
| Standby power | 0.45W(static 0.1W) |
| Working temperature | -10-+40°C |
Payment Term:
1.T/T:30% deposit bu T/T,70% balance by T/T before shipment.
2.Western union
3.L/C at sight
Packing details:
Neutral packing: Color box with export standard carton
ODM packing as your requests
Delivery time:
4-6 weeks work day after the silkprint confirmation.
