Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEIJIANG
-
Voltage:
-
380V/415V/220V
-
Power:
-
23.35
-
Dimension(L*W*H):
-
7620*1100*2800mm
-
Weight:
-
3600 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Glass Straight Line Edge Polishing Machine
-
Function:
-
Glass Grinder Edging Polishing
-
Application:
-
Glass Industry
-
Voltage/frequency:
-
380V/220V/415V, 50Hz/60Hz as required
-
Number of Spindles:
-
9pcs
-
Min. Glass:
-
40*40(mm)
-
Max. Glass:
-
3000*3000(mm)
-
Max. Grinding amount:
-
3mm
-
Arris angle:
-
45 degree
-
Arris width:
-
2.5mm
Quick Details
-
Machine Type:
-
Glass Edging Machine
-
Glass Thickness:
-
3~25mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEIJIANG
-
Voltage:
-
380V/415V/220V
-
Power:
-
23.35
-
Dimension(L*W*H):
-
7620*1100*2800mm
-
Weight:
-
3600 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Glass Straight Line Edge Polishing Machine
-
Function:
-
Glass Grinder Edging Polishing
-
Application:
-
Glass Industry
-
Voltage/frequency:
-
380V/220V/415V, 50Hz/60Hz as required
-
Number of Spindles:
-
9pcs
-
Min. Glass:
-
40*40(mm)
-
Max. Glass:
-
3000*3000(mm)
-
Max. Grinding amount:
-
3mm
-
Arris angle:
-
45 degree
-
Arris width:
-
2.5mm

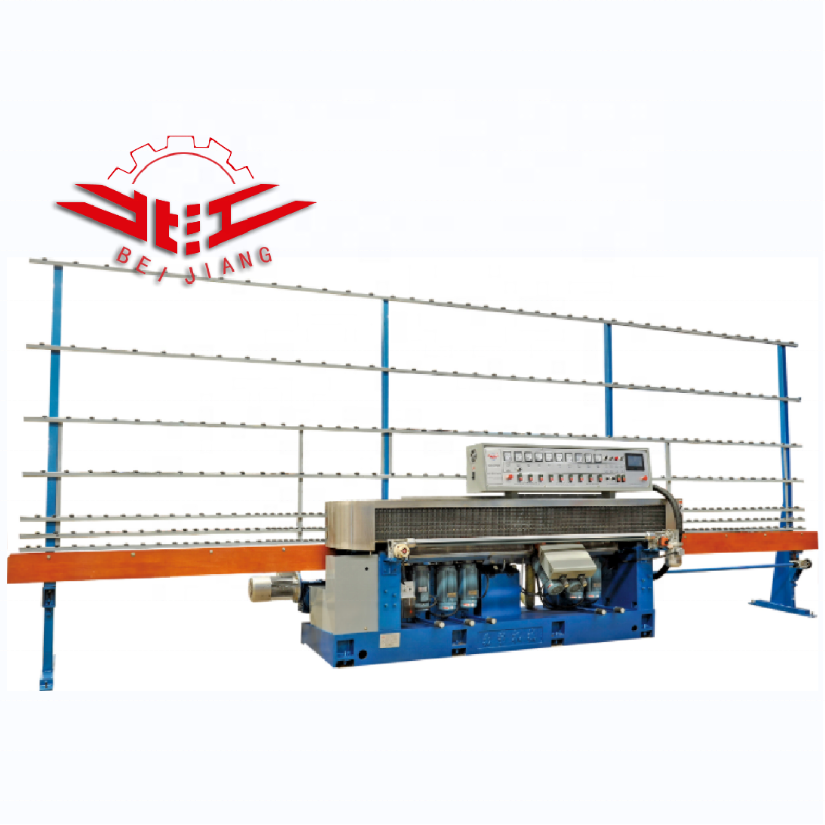

Glass edging machine BZM9.325PW
1. Suitable for glass or mirror in different size and thickness.
2. Use variable frequency motor and twin turbo reducer as main drive, with frequency converters to adjust the feeding speed.
3. Finish coarse grinding, fine grinding and polishing in one process.
4. Human machine interface screen control, manual/ automatic available, PLC screens shows current value of each spindles.
5. High efficiency, easy opearation. especially for porcessing large quantities of glass.
6. Ball bearing as conveyor, more stable on carrying the galss, and can be uesd for longer time.
SPECIFICATIONS OF GLASS EDGING MACHINE BZM9.325PW
| Voltage/frequency | 380V/220V/415V, 50Hz/60Hz as required |
| Number of Spindles | 9pcs |
| Working speed | 0.5-5(m/min) |
| Min. Glass | 40*40(mm) |
| Max. Glass | 3000*3000(mm) |
| Thickness | 3-25(mm) |
| Max. Grinding amount | 3mm |
| Arris angle | 45 degree |
| Arris width | 2.5mm |
| Total power | 23.35kw |
| Weight | 3600kg |
| Height of worktable | 830mm |
| Dimension | 7620× 1100× 2800(mm) |
Main Feature
1) Simple structure, manual operation, easy in installation and maintation.
2) Adopting advanced components in electric parts(CHINT).
3) Electronic control the front conveyer for grinding different thickness glass.
4) Good quality wheels to grind glass.
5) Stepless reduction for glass feeding speed.
Don't hesitate to share your idea with us by clicking here.
Straight Line Edging Machine
BZM9.325PW
You Need One-Stop Glass Edging Machine Solutions? Click Here to Learn More.
1. With the use of cast steel machine basement
2. Famous and durable Chinese motors or ABB motor for option
3. High quality conveyor belt
4.With feeding rail height adjustment, automatic lubrication pump and other function for option
5. Bearing structure edging machine for option.
6 .High quality and durable pads
7 .PLC touch screen control system or Manual control for option
Share your project with us to learn more.
| Packaging | |
| Size | 4000 (L) * 1250 (W) * 1750(D) |
| Weight | 3600kg |
| Packaging Details | The normal package is plywood box(Size: L*W*H). If export to european countries, there is no need to fumigate. If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
