Quick Details
-
Brand Name:
-
HIRP
-
Model Number:
-
RP5D-400
-
Rated Current:
-
400
-
Product name:
-
Dual Power Transfer Switch
-
Standard Control voltage:
-
220V
-
Frequency:
-
50/60Hz
-
Non-Standard Control voltage:
-
110V or 120V customized
-
Function:
-
Give auto Start generator siginal
-
Transfer Time:
-
less than 4 seconds
-
Working State:
-
3 position:I-O-II
-
Warranty:
-
1.5 Years
-
Max. Voltage:
-
400V
-
Max. Current:
-
3200A
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HIRP
-
Model Number:
-
RP5D-400
-
Rated Current:
-
400
-
Product name:
-
Dual Power Transfer Switch
-
Standard Control voltage:
-
220V
-
Frequency:
-
50/60Hz
-
Non-Standard Control voltage:
-
110V or 120V customized
-
Function:
-
Give auto Start generator siginal
-
Transfer Time:
-
less than 4 seconds
-
Working State:
-
3 position:I-O-II
-
Warranty:
-
1.5 Years
-
Max. Voltage:
-
400V
-
Max. Current:
-
3200A
Product Description

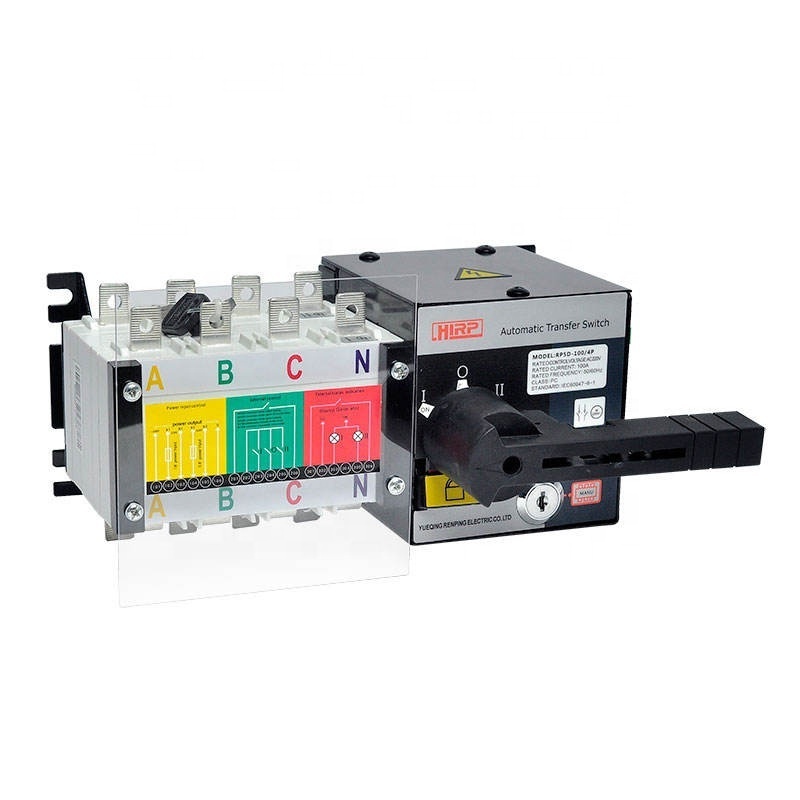

RP5D Series ats controller ats switch ats panel (PC type)
RP5D ats controller ats switch ats panel is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory “0”, remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function
The switch can achieve full-automatic, compulsory “0”, remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function
Our RP5D ats switch is divided into two types: Basic type and Fire control type
Basic type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power
automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting
automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.Meanwhile send out closing signal of generator, thus closed generator.
Fire control type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power
automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting
automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.
***** Remote control: i.e. operation and control at long distance. Push button “Ⅰ”, normal power will work; push button “Ⅱ”, then reserve power will work.
***** Lack phase examination and protection: exam and protect breaking of any phase of normal power and reserve power.
Instruct piece: Has three state
Ⅰmeans switch Ⅰ is on.
Ⅱmeans switch Ⅱ is on.
“0” means switch Ⅰ,Ⅱ are all off.
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power
automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting
automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.Meanwhile send out closing signal of generator, thus closed generator.
Fire control type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power
automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting
automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.
***** Remote control: i.e. operation and control at long distance. Push button “Ⅰ”, normal power will work; push button “Ⅱ”, then reserve power will work.
***** Lack phase examination and protection: exam and protect breaking of any phase of normal power and reserve power.
Instruct piece: Has three state
Ⅰmeans switch Ⅰ is on.
Ⅱmeans switch Ⅱ is on.
“0” means switch Ⅰ,Ⅱ are all off.
Kindly note: we normally make fire control type. If you need basic type, please kindy inform us or make notes when placing order.
Specification
|
Item Model
|
|
RP5D-400
|
|
|
Poles number
|
|
3 poles, 4 poles optional (If customer don't have special inquiry of 3 poles, we usually make and supply 4 poles)
|
|
|
Conventional Heating Current
|
|
400A
|
|
|
Rated Insulation Voltage Ui
|
|
800V
|
|
|
Rated Impaction Withstand Voltage Uimp
|
|
8KV
|
|
|
Rated Working Voltage Ue
|
|
AC440V
|
|
|
Rated Working Current Ie
|
AC-32B
|
400A
|
|
|
Rated Making Capacity
|
|
25.2kA
|
|
|
Rated Limiting Short-Circuit Current
|
|
20kA
|
|
|
Rated Short Time Withstand Current
|
|
12.6kA
|
|
|
Change-Over Time
|
|
2's
|
|
|
Voltage of Control Power Supply
|
|
AC220V
|
|
|
Energy Consumption of the Motor
|
Start
|
355W
|
|
|
|
Normal
|
74W
|
|
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
1,Q:Why your quotation is higher than some other suppliers?
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost dual power automatic transfer switch which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable dual power automatic transfer switch!
..............................................................................................................................................................
2,Q:Your dual power automatic transfer switch control voltage is 220V/230V or 110V/120V ?
A:Our ATS control voltage is normally 220V(230V),50Hz,if your Control voltage is 110V(120V) 60Hz,then you must tell us about this,it is important for us to make correct dual power automatic transfer switch for you.
..............................................................................................................................................................
3,Q:Should I choose 2Poles,3Poles or 4Poles dual power automatic transfer switch?
A:If your two power supply are single phase(L-N),then you can choose 2Poles or 4Poles ATS.
If your two power supply are three phases three wires(L-L-L),then you can choose 3Poles ATS.
If your two power supply are three phases four wires(L-L-L-N),then you can choose 4Poles ATS.
..............................................................................................................................................................
4,Q:In our country,voltage is very unstable,Your dual power automatic transfer switch will be easy to be damaged?
A: As we said we use the best quality key parts for dual power automatic transfer switch,such as Relays in dual power automatic transfer switch,We use silver contact relays which is famous chinese brand.
For motor in the dual power automatic transfer switch,we use copper coil quality. So all of these will assure it quality better
and stable than some other suppliers.
..............................................................................................................................................................
5,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.
6,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
7,Q: What’s the delivery time?
A: It usually takes about 2-5 working days for small sample order and 10-35 days for big order.
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost dual power automatic transfer switch which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable dual power automatic transfer switch!
..............................................................................................................................................................
2,Q:Your dual power automatic transfer switch control voltage is 220V/230V or 110V/120V ?
A:Our ATS control voltage is normally 220V(230V),50Hz,if your Control voltage is 110V(120V) 60Hz,then you must tell us about this,it is important for us to make correct dual power automatic transfer switch for you.
..............................................................................................................................................................
3,Q:Should I choose 2Poles,3Poles or 4Poles dual power automatic transfer switch?
A:If your two power supply are single phase(L-N),then you can choose 2Poles or 4Poles ATS.
If your two power supply are three phases three wires(L-L-L),then you can choose 3Poles ATS.
If your two power supply are three phases four wires(L-L-L-N),then you can choose 4Poles ATS.
..............................................................................................................................................................
4,Q:In our country,voltage is very unstable,Your dual power automatic transfer switch will be easy to be damaged?
A: As we said we use the best quality key parts for dual power automatic transfer switch,such as Relays in dual power automatic transfer switch,We use silver contact relays which is famous chinese brand.
For motor in the dual power automatic transfer switch,we use copper coil quality. So all of these will assure it quality better
and stable than some other suppliers.
..............................................................................................................................................................
5,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.
6,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
7,Q: What’s the delivery time?
A: It usually takes about 2-5 working days for small sample order and 10-35 days for big order.
