10.1' 15' 15.6' android panel pc waterProof rugged tablet pc android Linux all in one touch screen embedded industrial computer

10.1' 15' 15.6' android panel pc waterProof rugged tablet pc android Linux all in one touch screen embedded industrial computer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $87.93

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

LCD Size:: 10.1 inch

CPU:: Quad-core Cortex-A7 architecture

Memory:: 1GB DDR3

Flash:: 8GB EMMC

Resolution:: 800*1280

Touch Screen:: Capacitive touch screen

Defend degree:: IP65

Operating System:: Android 4.4.2 / Android 6.0

Application Area:: industrial automation ;industrial control

Certification:: FCC,CE

Quick Details

Type:: Embedded Computer

Brand Name:: WQ

Place of Origin:: Guangdong, China

LCD Size:: 10.1 inch

CPU:: Quad-core Cortex-A7 architecture

Memory:: 1GB DDR3

Flash:: 8GB EMMC

Resolution:: 800*1280

Touch Screen:: Capacitive touch screen

Defend degree:: IP65

Operating System:: Android 4.4.2 / Android 6.0

Application Area:: industrial automation ;industrial control

Certification:: FCC,CE

Product Description

10.1' 15' 15.6' android panel pc waterProof rugged tablet pc android Linux all in one touch screen embedded industrial computer

Product Paramenters

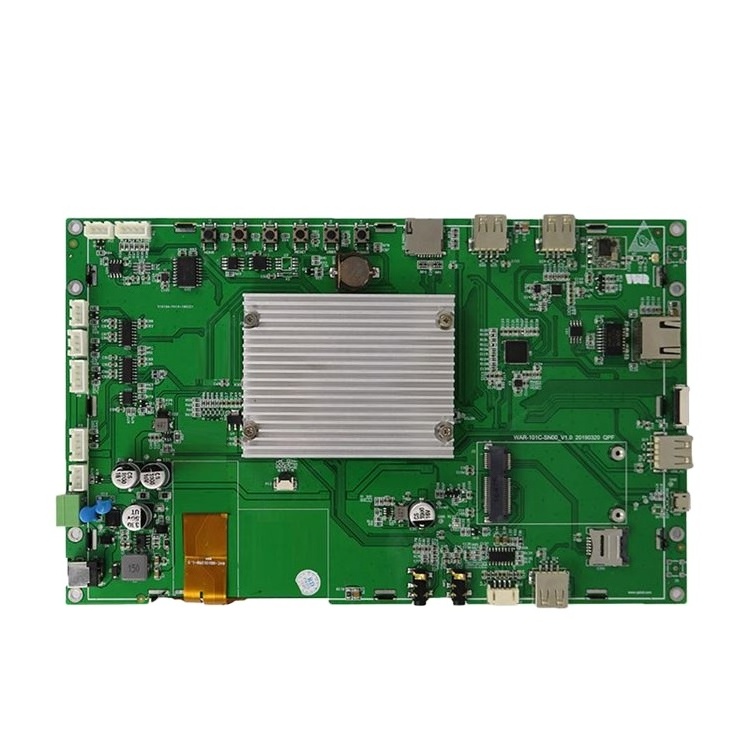

Product model	WAR-101C-SN00
Basic parameters	CPU ：Quad-core Cortex®-A7 architecture ; Frequency 1.2GHz Memory：1GB DDR3 EMMC：8GB
Display screen	Size：10.1 inch Resolution：800×1280 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hour
Touch screen	Capacitance touch screen (Hardness: 1H)
Hardware interface	4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4）(2.54mm interface) 1 channel RS-485（COM4）interface, multiplexing as RS-232 ( COM4 ) (2.54mm interface) 1 channel USB device interface, support ADB connect to PC to exchange data and debug application. 4 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot, support MMC/TF card. 1 channel 3.5mm audio MIC interface. 1 channel 3.5mm audio HPC interface. 1 channel power amplifier interface (8Ω/3w). 1 channel SIM card interface . Six buttons: (1x Power, 1x Home, 2x Volume,1x User , 1x Reset ). 3 channel IO input interface.（optional） 1 channel CAN interface.（optional） 1 channel 4G module . （optional） 1 channel WIFI module .（optional） 1 channel Bluetooth .（optional） 1 channel EDG3.5-3P or Round hole DC 5.5*2.1mm DC12V~24V. Power Input interface.
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Android 4.4.2 / Android 6.0
Defend degree	/
Working Environment	power：DC 12V-24V （24V as recommendation) working temperature：0~50℃ storage temperature：-10~70℃ working humidity：10～90%RH
Size	No shell Size：249x154x23.5（mm）
Application area	industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
Software support	Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc . Easy change the user-defined splash screen.
