Quick Details
-
Application:
-
construction
-
Span:
-
60 M
-
Place of Origin:
-
China
-
Brand Name:
-
Famous Brand
-
Weight (KG):
-
10000 kg
-
Model:
-
XGTT100cii
-
Max height:
-
216M
-
Max load:
-
6T
-
Section material Angle:
-
steel/Folding
-
Basic height:
-
45 m
-
Section size:
-
1600*1600*3000
-
Travelling:
-
0-24m/min
-
Payment:
-
TT/ LC
-
Certification:
-
CE/ISO
Quick Details
-
Rated Loading Capacity:
-
6 TON
-
Max. Lifting Height:
-
216m
-
Marketing Type:
-
New Product 2022
-
Application:
-
construction
-
Span:
-
60 M
-
Place of Origin:
-
China
-
Brand Name:
-
Famous Brand
-
Weight (KG):
-
10000 kg
-
Model:
-
XGTT100cii
-
Max height:
-
216M
-
Max load:
-
6T
-
Section material Angle:
-
steel/Folding
-
Basic height:
-
45 m
-
Section size:
-
1600*1600*3000
-
Travelling:
-
0-24m/min
-
Payment:
-
TT/ LC
-
Certification:
-
CE/ISO
Contact Way
Murphy Yang (Ms.)
Website:
www.cruking.com
WhatsApp/Skype/ Mobile No.:
+86 15960573112
Wechat:
wxid_r19l8082nszz12
E-mail:
murphy@cruking.com
Product Overview

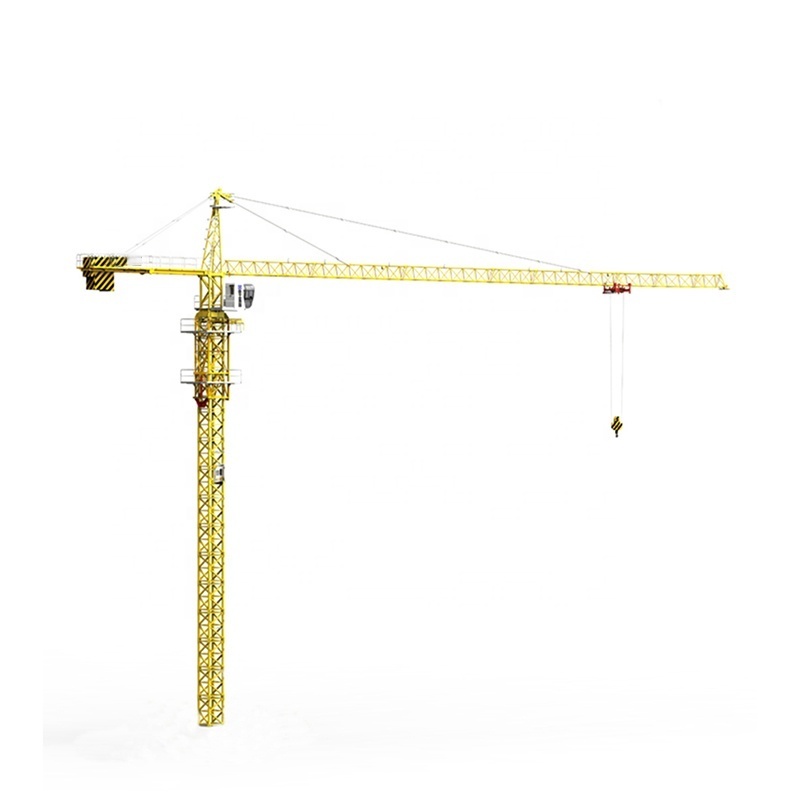

Hydraulic tower crane XGTT100cii 6 ton mobile mini rc tower crane
Tower crane XGTT100CII (6013-8), which is characterized by its horizontal boom, trolley-slewing and upper-slewing mechanisms, and which is a multi-purpose self-elevating crane with following features:
1. Its performance parameters and technical indicators are domestically advanced, with the maximum working radius of 60mand the maximum lifting height of 180m respectively.
2. This crane can operate in independent-stationary, under-frame-stationary, attached or travelling modes which apply to various constructing objects.
3. The appearance of this crane is internationally fashionable and beautiful, therefore popular with customers both at home and abroad.
4. The crane is characterized by its high operating speed, sound speed control performance as well as stable and reliable
operation.
5. The electrical system is equipped with French components, featuring long service life, small failure rate and simple
maintenance. Also, it works steadily.
6. The safety devices equipped, which are mechanical or mechanical-electrical integrated products, can help to ensure the reliable work of tower crane.
1. Its performance parameters and technical indicators are domestically advanced, with the maximum working radius of 60mand the maximum lifting height of 180m respectively.
2. This crane can operate in independent-stationary, under-frame-stationary, attached or travelling modes which apply to various constructing objects.
3. The appearance of this crane is internationally fashionable and beautiful, therefore popular with customers both at home and abroad.
4. The crane is characterized by its high operating speed, sound speed control performance as well as stable and reliable
operation.
5. The electrical system is equipped with French components, featuring long service life, small failure rate and simple
maintenance. Also, it works steadily.
6. The safety devices equipped, which are mechanical or mechanical-electrical integrated products, can help to ensure the reliable work of tower crane.
Product Paramenters
|
Type
|
XGTT100CII(6013-8)
|
|
|
|
Basic height
|
45M
|
|
|
|
Max height
|
216M
|
|
|
|
Length
|
60/55/50/45/40/35/30
|
|
|
|
Max load
|
8t
|
|
|
|
Tip load
|
1.3/1.6/1.85/2.15/2.6/3.1/3.8
|
|
|
|
Section size
|
1600*1600*3000
|
|
|
|
Section material
|
Angle steel/Folding
|
|
|
|
Items
|
Mechanism
|
Speed(m/min)
|
|
|
Hoist mechanism
|
30QP20T
|
0-80
|
|
|
|
|
0-40
|
|
|
Trolleying mechanism
|
40BP65
|
0-50m/min
|
|
|
Slewing mechanism
|
40HP100
|
0-0.6r/min
|
|
|
Travelling
|
RT
|
0-24m/min
|
|
|
Main Supply
|
380V(±10%)/50Hz*
|
|
|
