The thermal insulation properties of the insulating glass are mainly its thermal insulation of the gas interlayer, so that the temperature difference between the two sides is close to or even exceeds 10 °C. This is because the gas in the interlayer is in a closed space, the gas does not convect, thus, convective heat transfer and conduction heat transfer account for only a small proportion of the energy transfer of the hollow glass.
- Product Details
- {{item.text}}
Quick Details
-
Thickness:
-
5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
-
Technology:
-
insulated
-
Type:
-
clear/tinted/Reflective/Tempered/Laminated/Argon/Low-E, Insulated Glss
-
Glass Types:
-
Float Glass, Pattern Glass
-
Size:
-
max. 3300*15,000mm, could be produced as per request.
-
Delivery Time:
-
In four weeks after order confirmation.
-
Technique:
-
Clear Glass, Coated Glass,Tempered Glass, Clear Glass, Laminated Glass, Tempered Glass, Tinted Glass
-
Product name:
-
Insulated Low-e Glass
-
Model Number:
-
Insulated glass
Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REXI
-
Thickness:
-
5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
-
Technology:
-
insulated
-
Type:
-
clear/tinted/Reflective/Tempered/Laminated/Argon/Low-E, Insulated Glss
-
Glass Types:
-
Float Glass, Pattern Glass
-
Size:
-
max. 3300*15,000mm, could be produced as per request.
-
Delivery Time:
-
In four weeks after order confirmation.
-
Technique:
-
Clear Glass, Coated Glass,Tempered Glass, Clear Glass, Laminated Glass, Tempered Glass, Tinted Glass
-
Product name:
-
Insulated Low-e Glass
-
Model Number:
-
Insulated glass
PRODUCT DESCRIPTION
SINGLE DOUBLE TRIPLE SILVER LOW-E INSULATED GLASS DOUBLE GLAZING INSULATING GLAZED UNITS HOLLOW IGU DGU
REXI
Insulated Glass
is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.
Any type of insulated glass consists of the following components:
(1) The float glass constitute the insulated glass. These glasses can be ordinary laminated glass, solar control glass (including Low-E glass), and etc.
(2) Gas interlayers and gases. In the interlayer of the insulated glass, firstly to ensure the performance of the insulated glass, the interlayer gas must be dry, including dry air, argon or other special gases. Generally, depending on the requirements, the thickness of the insulated glass interlayer and the internal gas are also different.
(3) Edge sealing system. There are two types of recognized insulated glass edge sealing systems: one is the traditional cold edge sealing system (slot aluminum), and the other is a warm edge sealing system (composite strip type) represented by American Swiggle strip. Since the traditional aluminum trough insulated glass products have been used internationally and domestically for a long time, they have been recognized by many people, and the warm-side system has been promoted in China in April 1997, and the products have not been widely recognized. However, since this product has been improved on the basis of the conventional method, the heat insulating and sound insulating properties of the insulating glass are greatly improved, and thus it has been accepted more and more popular.
PRODUCT FEATURES
Insulation
Heat preservation
Insulation of insulated glass means reducing indoor heat through its outdoor area during the winter, and the smaller the thermal resistance, the better the thermal insulation performance. If the glass is coated with a low-emission film, the radiation emissivity can be reduced to 0.1, and in winter, the heat radiated from the room will be reduced to provide better insulation.
Anti-condensation & Reducing Cold Radiation
Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises. This is the biggest difference between insulated glass and double glass.
PRODUCT SPECIFICATION
|
Product Name
|
Insulated Glass
|
|
Spacer Thickness
|
6mm, 9mm, 12mm, 16mm, 19mm(1/4'',11/32'',1/2'',9/16'',19/32'',5/8'')etc.
|
|
Glass Option
|
Clear Glass, Low Iron Glass, Tinted Glass, Ceramic Fritted Glass
|
|
Low-E Option
|
Single silver, Double silver, Triple silver
|
|
Gas Filling
|
Dry air, Argon
|
|
Size
|
Max. Size: 12000*3300mm/Min.Size:300*300mm
|

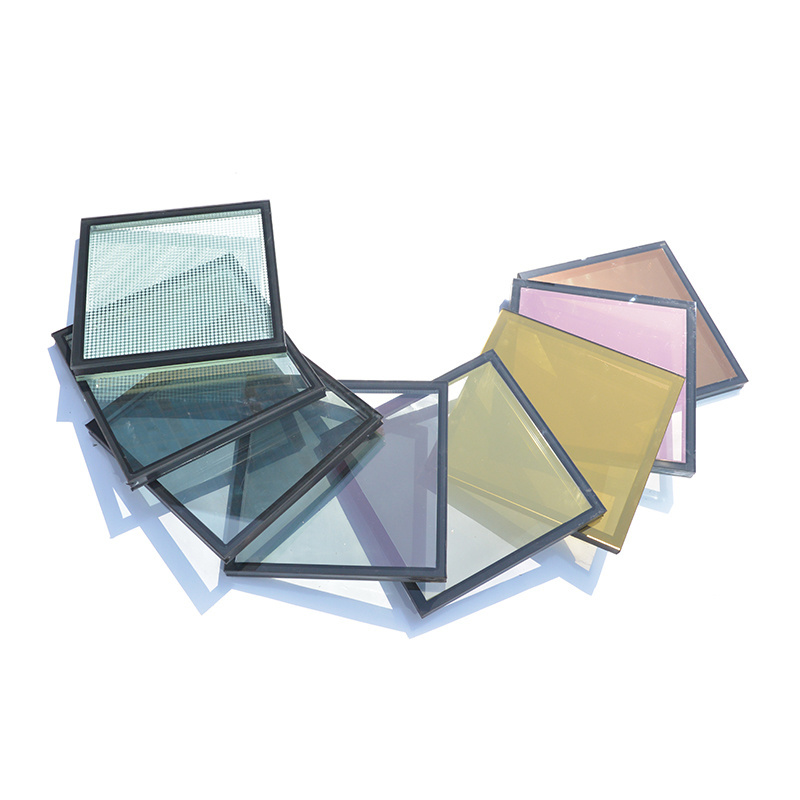

PRODUCT REAL SHOT
REXI Glass comply with China GB11944-ccc;
Europe EN1279-CE; America ASTM E2190-IGCC; AustraliaAS/NZS4666-CSI
APPLICATION
China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass!
The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.
PROJECTS
ASSIMA MALL and TOWER
Kuwait
New landmark of Kuwait. A large multi-functional shopping mall
Area: 66,000 sqm
Na Lu Wan Hotel
Qingdao.China
Area: 60,000sqm
Emmy Monash Aged Care
Melbourne.Australia
Area: 4,000 sqm
Shangri-La Hotel
Qingdao.China
Area: 34,000 sqm
Hengyu International Center
Suzhou.China
Area: 22,000 sqm
Marina Square
Sydney.Australia
Area: 65,000 sqm
Area: 65,000 sqm
PACKING & LOADING
In Three weeks after order confirmation.
COMPANY PROFILE
REXI Industries is a professional glass manufacturer, and glass & aluminum solution provider in China. The company was established in 2005. Now we can supply a comprehensive range of products including tempered glass, laminated glass, insulated glass, float glass, mirror glass, aluminum windows & doors and curtain wall etc. to satisfy the advanced design and engineering technical requirements of modern building envelops.
OUR FACTORY
REXI Industries factory covers an area of 80,000 m² with 110,000 m² floor space of building and have an annual processing capacity of 1,500,000 m². The main equipment was imported from world-famous processed equipment manufacturers, such as Tamglass, Lisec, Bystronic, Intermac and Bottero etc. We already got Europe CE, USA SGCC, IGCC, UK BSI, France Cekal and Australia CSI certificates for our glass and aluminum products.
REXI EXHIBITIONS
FAQ
1.Who is REXI Industries?
REXI Industries is professional glass manufacturer, and glass & aluminum solution provider.
2.Why choose REXI?
REXI Industries is the biggest glass exporter in China and top 3 glass manufacturer in China. Top quality is guaranteed.
3.How long is your delivery time?
Generally within 3 weeks. If the goods are in stock, it can be 1 week.
4.What's the MOQ?
MOQ is one 20 feet container. Products of different sizes and specifications could be mixed in one container.
5.How about sample fees?
Samples are free, can be ready in 1-4 weeks.
6.How is the warranty?
Five years warranty for Laminated Glass, and 10 years warranty for Tempered Glass, Insulated Glass, Windows & Doors and Curtain Wall etc.
7.How to get a quotation?
We need the information of glass composition, thickness, sizes, quantity and processing etc.
