Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Piezo Switch
-
Mounting Hole Size:
-
12mm
-
Operation Type:
-
Momentary
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Flat Head
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
300mm Long 26AWG
-
Life Expectancy:
-
50 Million cycles
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Piezo Switch
-
Mounting Hole Size:
-
12mm
-
Operation Type:
-
Momentary
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Flat Head
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
300mm Long 26AWG
-
Life Expectancy:
-
50 Million cycles
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring

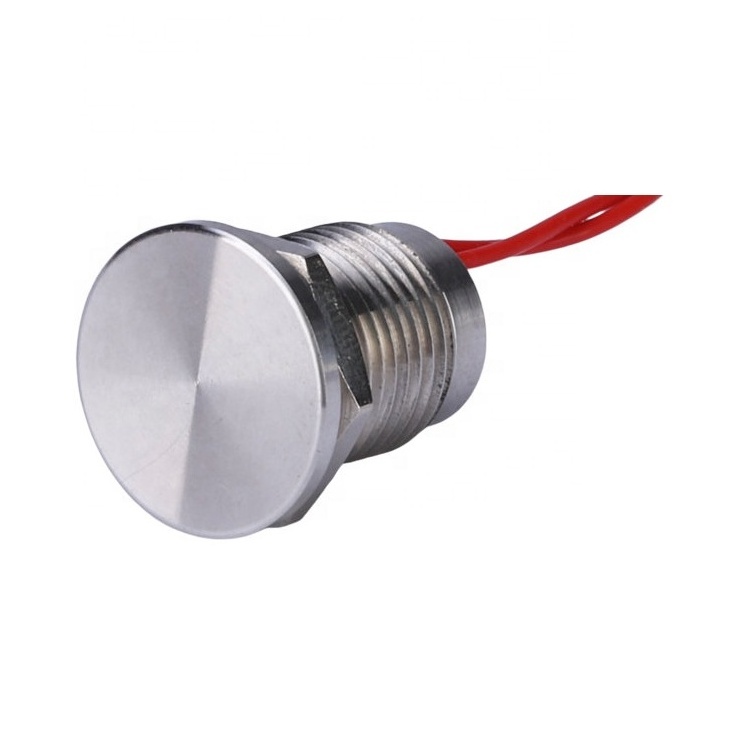

Micro Mini IP68 Waterproof Push Button Stainless Steel 12mm Momentary Piezo Switch With 2 Wires For Car
Product description
Electrical Function
Contact Arrangement : SPST N.O.
Voltage:3 – 24V AC/DC
Switching Current: 2A
Illuminated Option: NON-Illuminated
Mechanical Properties
Material: Stainless Steel or Aluminum
IP Protection IP68
Anodize Colors Natural
Operating Temperature -40°C to 75°C (Momentary Only)
Note: If you need Customized actuator color, please inform us by mail, thanks!
|
Product Name |
IP68 Waterproof Piezo Switch |
|
Model |
PS12B-PNOF/S |
|
Mounting Hole |
12mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round Head |
|
Cable Length |
300mm long |
|
Current |
2A |
|
Enclosure Material |
Stainless Steel 316L (or Silver Aluminum oxidized) |
|
Operating Force |
6 to 15N |
|
Life Expectancy |
50 Million cycles |
|
Waterproof Degree |
IP68 |
|
Operating Temperature |
-40°C ~+75°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
What You Get |
1X Piezo Switch: 12mm, Momentary, Stainless steel |
