PL-350
fiber laser marking machine
as an advanced industrial laser marking machine has been applied to a variety of different industrial
scenes. Due to its good stability and durability, it can be applied to different kinds of product manufacturers. PL-350
fiber laser marking machine
can be applied to the packaging of metal products and non-metal products, such as production date, serial number,text, two-dimensional code, etc
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Brand Name:
-
WEIHONG
-
Weight (KG):
-
80 KG
-
Core Components:
-
Other
-
Laser power:
-
20W\30W/50W
-
Marking line width:
-
0.09mm
-
Minimum character:
-
0.15mm
-
Marking speed:
-
12000mm/s
-
Marking depth:
-
0.01-2mm
-
Repeatability:
-
±0.002m
-
Maximum speed:
-
900 characters/second
-
Beam quality:
-
<2(M2)
-
Cooling system:
-
Built-in air cooling
-
Laser type:
-
pulsed or continuous
Quick Details
-
Working Accuracy:
-
0.002mm
-
Graphic Format Supported:
-
AI, BMP, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Brand Name:
-
WEIHONG
-
Weight (KG):
-
80 KG
-
Core Components:
-
Other
-
Laser power:
-
20W\30W/50W
-
Marking line width:
-
0.09mm
-
Minimum character:
-
0.15mm
-
Marking speed:
-
12000mm/s
-
Marking depth:
-
0.01-2mm
-
Repeatability:
-
±0.002m
-
Maximum speed:
-
900 characters/second
-
Beam quality:
-
<2(M2)
-
Cooling system:
-
Built-in air cooling
-
Laser type:
-
pulsed or continuous
Certificates
Production description

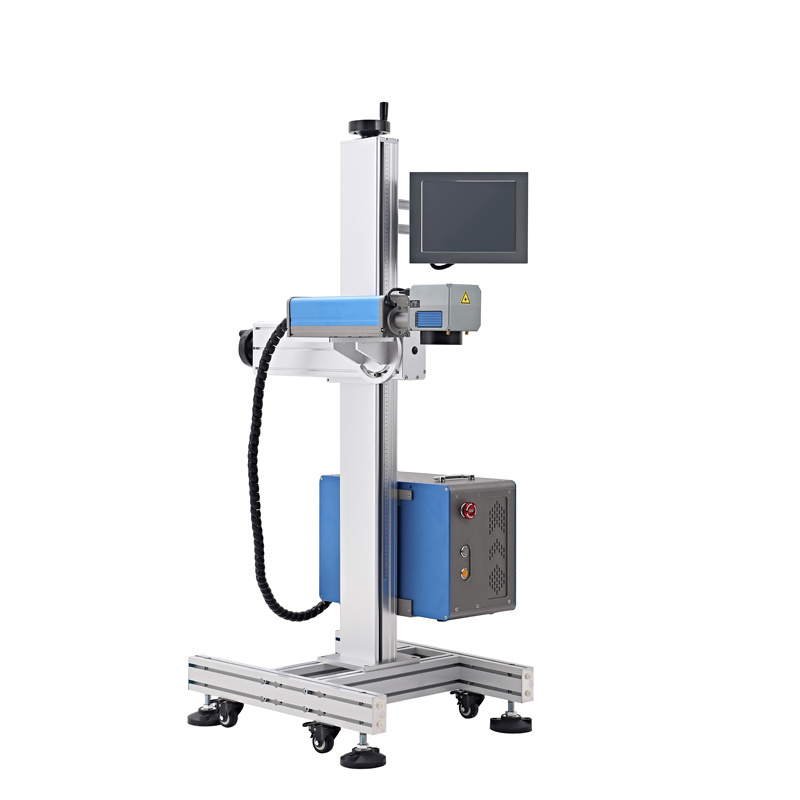

PL-350 flying laser marking machine
PL-350 details
PL-350 fiber laser marking machine
is different from the previous printers of the same type. The PL-350 marking machine adopts an extremely light body, which weighs only 80 kg and can meet the high-quality needs of industrial production.
Clefine touch control system
Optional 8 inch or 10 inch control screen
Independent power control box
MEAN WELL industrial DC switching power supply
Three-dimensional lifting bracket
Multi-angle flexible operation of the machine
Sino-Galvo scanning galvanometer.
Select Sinogalva High Speed Digital Galvanometer
Singapore Wavelength field lens
Select Singapore Wavelength Field Mirror
Top fiber laser
Optional imported or domestic lasers, such as IPG, Raycus, Max
Double red light focus function
No any trouble caused by dust clogging
No any consumables, maintenance-free
Greatly reduces the difficulty of workers' operation.
Large storage space
With the ability to store 500 messages.
Multiple tasks can be completely easily: repeated inspections, historical files, data acquisition from existing systems or code readers, etc.
Built-in software linux system
Linux system makes the mark unlimited possibilities.
WYSIWYG color touch screen.
Support multi-language operation, straight line, diagonal line, arc marking.
Manage your marking process, from workshop to automated production line.
No pollution,maintenance free
No any trouble caused by dust clogging
No any consumables, maintenance-free
Greatly reduces the difficulty of workers' operation.
The details of products
|
Laser power
|
20W/30w/50w
|
|
Marking line width
|
0.09mm
|
|
Minimum character
|
0.15mm
|
|
Marking speed
|
14000mm/s
|
|
Marking depth
|
0.01-2mm
|
|
Repeatability
|
±0.002m
|
|
Maximum speed
|
900 characters/second
|
|
Beam quality
|
<2(M2)
|
|
Cooling system
|
Built-in air cooling
|
|
Laser type
|
pulsed or continuous
|
|
Laser safety level
|
1P54 safety index: level IV
|
|
Operating system
|
Embedded Linux system kernel, anti-virus
|
|
Operating language
|
English, French, Spanish, German, Chinese, Russian, Arabic, etc. and corresponding input methods
|
|
Management rights
|
multi-user rights management
|
|
Photoelectric type
|
Support NPN or PNP signal input 15V
|
|
Communication interface
|
network port or serial port and host computer interactive data transmission
|
|
Coding mode
|
static coding, analog speed coding, encoder speed coding
|
|
Reserved signal
|
marking start, marking status, markiing completion, fault alarm
|
|
Marking fonts
|
support SHX and TTF fonts and CSF fonts independently developed by our company
|
|
Variable type mark
|
serial code, time code, TXT file import, scan gun read code
|
Marking Samples
PL-350 Laser marking machine can print a wide range of materials and patterns with high definition and the pattern text is not easy to be corroded
DIFFERENT OPTIONS
CAN MEET ANY PRODUCTION NEEDS
Text,date,graphics,LOGO,QR Code,bar code,batch number
Company introduction
Shenyang Faith Technology Co., Ltd.
is a high-tech enterprise, which integrates independent research and development,
production,sales and service. It specializes in providing laser marking machine technology and traceable system solutions. The
company was
founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early
2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
Our factory
Packing & Delivery
|
Packing list
|
|
|
|
Name of single accessory attached to the machine
|
Quantity
|
|
|
Optical fiver laser machine cabinet
|
1
|
|
|
Laser
|
1
|
|
|
Scanning galanometer
|
1
|
|
|
General Control power box
|
1
|
|
|
3D lifting bracket
|
1
|
|
|
15 inch LCD display
|
1
|
|
|
Professional data line
|
1
|
|
|
Foot switch
|
1
|
|
|
Power supply 220v 50hz
|
|
|
FAQ
Q1.What are the primary products of your company?
A1 .Our primary products include laser marking machine, inkjet printer machine，paging machine.
A1 .Our primary products include laser marking machine, inkjet printer machine，paging machine.
A2.Of course,
PL-350
has a very convenient operating system, easy to use!
Q3.
What material can
PL-350
be engraved with?
A3.
can mark plastic, rubber, leather and many kinds of metal materials.
Q4.
What if the machine is damaged or faulty?
A4.
We have a two-year warranty period, so that customers can rest assured that,there is no worry about using!
Q5.Is there any staff to guide the use？
A5.
We have professional engineers to guide customers to use products 24
hours a day!
Q6.Which countries are your laser machinery sold to?
A6.Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,Turkey, India, Italy, and other countries.
Q7.How long is the delivery time?
A7.The products will be delivered to you within one week after the order is confirmed.
A7.The products will be delivered to you within one week after the order is confirmed.
Q
8.Where is your laser marking machine applied to?
A8.Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components,
stamp,etc
A8.Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components,
stamp,etc
Q9.What certificate has your company got?
A9.All of our product with CE, ISO
A9.All of our product with CE, ISO
