Quick Details
-
Brand Name:
-
Hard
-
Color:
-
White/Ivory/Black
-
Shape:
-
Customized
-
Dimension:
-
Customized
-
Feature:
-
High hardness, high strength, high temperacture
-
Gas permeability:
-
0
-
Water Absorption:
-
0
-
MONS' Hardness:
-
9 Grade
-
MOQ:
-
1 pcs
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Al2O3 080
-
Brand Name:
-
Hard
-
Color:
-
White/Ivory/Black
-
Shape:
-
Customized
-
Dimension:
-
Customized
-
Feature:
-
High hardness, high strength, high temperacture
-
Gas permeability:
-
0
-
Water Absorption:
-
0
-
MONS' Hardness:
-
9 Grade
-
MOQ:
-
1 pcs

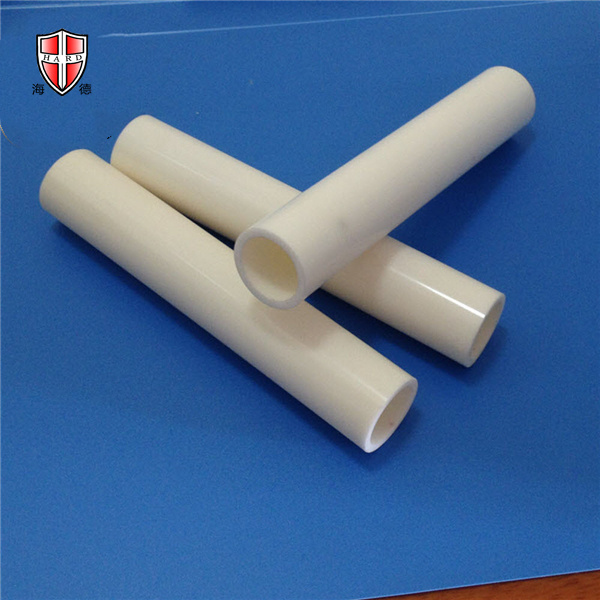

alumina Al2O3 zirconia ZrO2 Si3N4 ceramic tube pipe bush
Reputation depends on quality, quality comes from Hard!
Alumina Ceramic :
Alumina ceramics are ceramic materials based on alumina (Al2O3) for thick film integrated circuits. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required. Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.
Data Sheet↓
|
Alumina Ceramic Properties |
96 Alumina Ceramic | 99 Alumina Ceramic | |
| Item | Unit | Typical Values | |
| Physical Properties | |||
| Color | White | Ivory | |
| Density | g/cm3 | 3.7 | 3.85 |
| Alumina Content | % | 96% | 99% |
| Gas permeability | 0 | 0 | |
| Water Absorption | 0 | 0 | |
| Mechanical Properties | |||
| MONS’ Hardness | 82 | ||
| Vickers Hardness (Hv50) | Gpa(Kg/mm²) | 15.7(1600) | 15.7(1600) |
| Flexural Strength(20°C) | Mpa | 300 | 330 |
| Compressive Strength(20°C) | Mpa | 2000 | 2000 |
| Modulus of Elasticity (20°C) | Gpa | 275 | |
| Poisson's Ratio (20°C) | 0.22-0.23 | ||
| Fracture Toughness(20°C) | MPam1/2 | 3.5 | 4 |
| Thermal Properties | |||
| Thermal Conductivity(20°C-400°C) | W(m.K) | 25 | 27.5 |
| Thermal Expansion Coefficient | 10-6/°C | 6.5-7.5 | 7.6 |
| Thermal Shock Resistance | T°C | 200 | 200 |
| Maximum Use Temperature | °C | 1600 | 1650 |
| Electronic Properties | |||
| Dielectric Strength | KV/mm | >12 | >10 |
| Dielectric Constant | Er | 9-10 | 9.1 |
| Dielectric Loss Angle(1MHz) | 0.0002 | 0.0002-0.0003 | |
| Volume Resistivity(20°C) | Ω.cm | >1014 | >1014 |
Application industry: Machinery, fiber optic, knife, medical, food, petroleum etc.
Specific application: plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.
