Quick Details
-
Production Capacity:
-
40-230bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
China
-
Brand Name:
-
QIBO
-
Dimension(L*W*H):
-
(L)3770x(W)670x(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control:
-
by dual frequency conversion
-
packing speed:
-
up to 230bags/min
-
bag length:
-
can be variable by screen setting
-
bag width:
-
can be adjustable in define range
-
conveying:
-
by chain
-
packing materials:
-
heat sealing film, such as bopp/cpp
-
packing products:
-
various food products, daily commodities
-
Certification:
-
CE
Quick Details
-
Function:
-
Sealing, Wrapping
-
Packaging Type:
-
Bags, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Metal, Paper, Plastic
-
Production Capacity:
-
40-230bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
China
-
Brand Name:
-
QIBO
-
Dimension(L*W*H):
-
(L)3770x(W)670x(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control:
-
by dual frequency conversion
-
packing speed:
-
up to 230bags/min
-
bag length:
-
can be variable by screen setting
-
bag width:
-
can be adjustable in define range
-
conveying:
-
by chain
-
packing materials:
-
heat sealing film, such as bopp/cpp
-
packing products:
-
various food products, daily commodities
-
Certification:
-
CE
Product Description

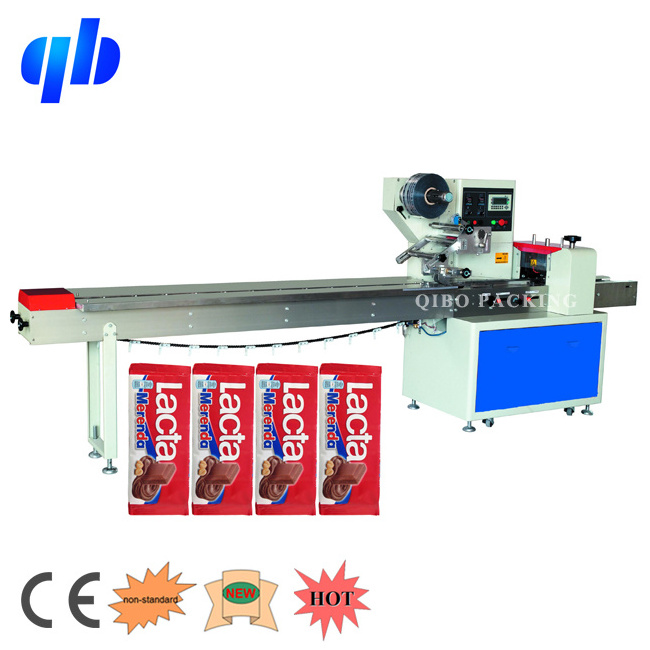

Machine Features
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
Technical Parameters
| M achine type | QB-250B | QB-250D |
| Film width | Max 300mm | Max 320mm |
| Bag length | 65-190mm or 120-280mm | 90-220mm |
| Bag width | 30-110mm | 30-110mm |
| Product height | Max 40mm | Max 55mm |
| Film roll diameter | Max 320mm | Max 320mm |
| Packing speed | 40-230bag/min | 40-230bag/min |
| Power | 220V 50/60Hz 2.4Kw | 220V 50/60Hz 2.4Kw |
| Machine size(mm) | L 3770 x W670 x H 1450 | L 3770 x W670x H 1450 |
| Machine weight | 500kg | 500kg |
Applications
Packaging various kinds of regular objects like biscuits, pies, chocolates, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates etc.
More Machine Details Photos
Packing Way
1. Packing by exported standard wooden cases. Which adopts export special wooden case; it is suitable for long distance transport, damp proofing, and rust prevention, shockproof and so on. And also it suitable for sea, land transport and entirety lifting.2. O ne set of machine will have two wooden cases, one is for main machine, another is for conveyor.
Company Profile
Welcome To Visit Our Factory
Guangzhou Qibo Packing Equipment Co., Ltd is located in Guangzhou city, a professional company engaged in packing machines of research and development, design, production, sale and trading. Products are widely used in food, chemical, pharmaceutic, hardware, daily commodities etc industry. In these fields packing machine could fulfill automatic measurement, feeding, filling, packing, date printing, counting and conveying procedure .
With the foresighted, scientific thoughts, we put more efforts on the consideration to customers' request and guarantee high quality machine with more effective, we successful design and manufacture packing machine as per Customer’s request, such as high speed auto sealing machine for fly adhisive glue , automatic measuring machine, shisha tobacco automatic packing machine, automatic filling equipment, screw automatic counting and packing machine and so on. We have more than ten years experience in the development and production of non standard packing equipment. Up to now, we export to more than thirty countries, such as United States, Russia, Romania, Brazil, Peru, Thailand and so on. We are willing to collect your precious suggestions, with the guideline of idea from users, we will trive to explore constantly and create new products. We sincerely hope to establish the long-term cooperation with you!
Why Choose Us
1. Our company idea is quality first, customer first, service first , good business credit first.
2. We are custom packing machine producer , have more than 15years production experience.
3. Our packing machine widely use for food, medicine, daily commodities, hotel supplies,hardware, agricultural, chemical etc industries.
4. We can manufacture special non-standard packing machine as per clients' design and requirement.
5. Our packing machine not only sold well in various industries in domestic , now also mainly export to Southeast Asia,Europe,Africa,Middle East etc overseas countries,with reliable product quality , honest reputation and excellent after-sales service.
O ur service
1. New products investment provides to coincide with the market needs.
2. Sample for free test before confirm the order.
3. Warrantee time:One year warrantee after we sold out the machine and provide lifelong service.
4. Training service : machine instruction manual , machine installation video will offer after order. We prefer to customer or staff come to our factory to train it if customer without any experience in the machine operation .
5.Certification: we provide the relative certificates to customers freely according to the request of customers.
6.Maintenance service: we promise that we will reply within 48hours if any malfunction happened and helped needed.
To make an exact quotation for the products, it would be better if you could provide us information with following:
1. what kind of product you want to pack?
2. what is the size of the product? Product long, wide and height size?
3. how many pieces in one bag?
4. what is the bag size?
5. detailed photos for reference are highly appreciated.
Dear friends, Thanks for visit our website. If you have anything for help in packing machine, please feel free to contact with Ms Fenny.
