Infrared Pyrometer for Continuous Casting , industrial temperature measurement instrument

Infrared Pyrometer for Continuous Casting , industrial temperature measurement instrument

FOB Reference Price: Get Latest Price

≥1 Pieces

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Black

Application:: forging, heat treating, smelting, wire mills, tubes and pipes,

Accuracy:: 0.5%

Power supply:: 24VDC

Emissivity:: 0.1-1.0 Adjustable

Size:: 186mm * 50 mm

Model:: IT8-DIKAI Infrared Pyrometer

Temperature Range:: -25~3000℃

Quick Details

Place of Origin:: Hubei, China

Product name:: Infrared Temperature Infrared Pyrometer for Continuous Casting

Type:: Industrial Temperature measuring instrument

Color:: Black

Application:: forging, heat treating, smelting, wire mills, tubes and pipes,

Accuracy:: 0.5%

Power supply:: 24VDC

Emissivity:: 0.1-1.0 Adjustable

Size:: 186mm * 50 mm

Model:: IT8-DIKAI Infrared Pyrometer

Temperature Range:: -25~3000℃

Product Description

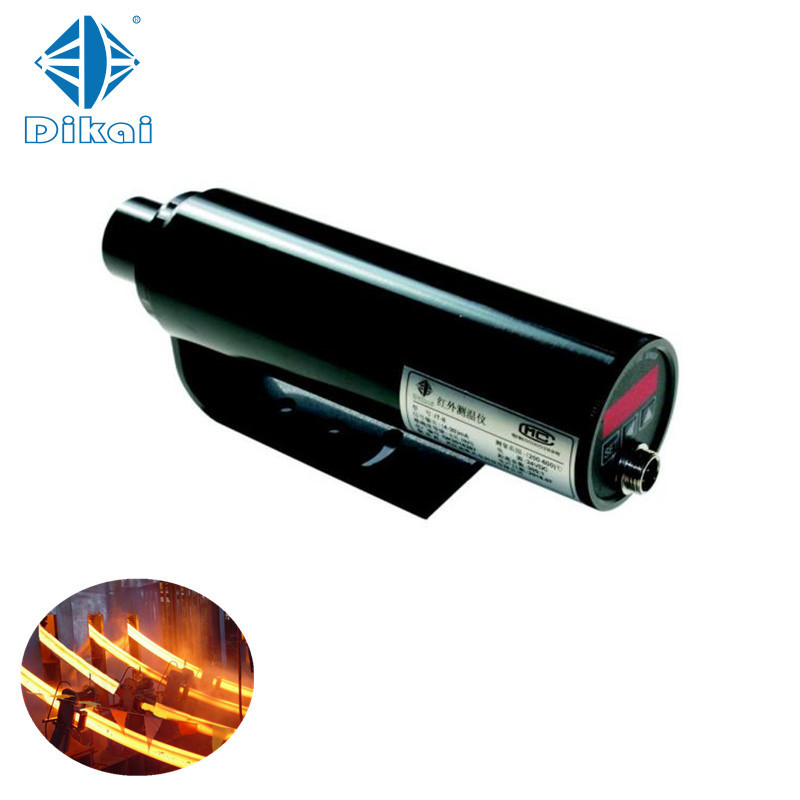

Infrared Pyrometer for Continuous Casting , industrial temperature measurement instrument

IT-8 Infrared Pyromters provides the advantages of infrared temperature measurement in a powerful, compact, integrated sensor. It measures target temperatures ranging from 200℃ to 3000℃ with four models. The unit's onboard electronics are protected by an aluminium housing, allowing the sensor to function in ambient temperatures to 60℃ without cooling.

LED display provides a convenient on-line indicator of the thermometer's operating status. The sensor features coaxial laser sighting. The optical resolution is 300:1 and the smallest spot size is 2mm. Standard features include adjustable emissivity which is 0.10 to 1.00 in 0.01 increments.

IT-8 infrared thermometer can be equipped with a compact, value-priced monitor that configures the functions via the front panel. It also includes optional bidirectional RS485 serial communications between the thermometer on the factory floor and a personal computer in the control room. This enables remote setup, monitoring and maintenance, especially valuable for installation in hard-to-reach locations.

IT-8 infrared thermometer is designed for forging, heat treating, smelting, wire mills, tubes and pipes, and so on.

Model	IT-8L1	IT-8L2	IT-8H1	IT-8H2	IT-8H3	IT-8H4
Temperature range (can be adjusted as customer required)	-25-800℃	50-500℃	200-800℃	300-1400℃	800-2600℃	1000-2600℃
Detector	Thermopile 8~14µm	Thermopile 8~14µm	InGaAs 2-3.1µm	InGaAs 1-1.7µm	Si 0.4-1.1µm	Si 0.4-1.1µm
Accuracy	±1%(FS)	±1%(FS)	±1%(FS)	±0.5%(FS)	±0.5%(FS)	±0.5%(FS)
Repeatability	0.2%
Temperature Resolution	0.5℃
Response time	≤10ms
Emissivity	0.1~1.0 (Adjustable)
Distance Coefficient	300:1
Minimum Object	2mm
Electrical Specification
Analog Output	0-20mA /4-20mA ,0-5V
Digital	RS485
Powder Supply	24VDC ±10% 200mA
Anti Disturbance	JB/T9233.11-1999
Thermal Shock	GB/T 2423.1,GB/T2423.2

Detail Images
