Quick Details
-
Lift Speed:
-
8M/MIn
-
Weight (KG):
-
300 kg
-
item:
-
electric crane winch motor electronic hoist 1 ton to 5 ton
-
lifting weight:
-
1 ton
-
lifting height:
-
6M to 30M
-
lifting speed:
-
8M/Min
-
warranty:
-
one year
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUGO
-
Lift Speed:
-
8M/MIn
-
Weight (KG):
-
300 kg
-
item:
-
electric crane winch motor electronic hoist 1 ton to 5 ton
-
lifting weight:
-
1 ton
-
lifting height:
-
6M to 30M
-
lifting speed:
-
8M/Min
-
warranty:
-
one year

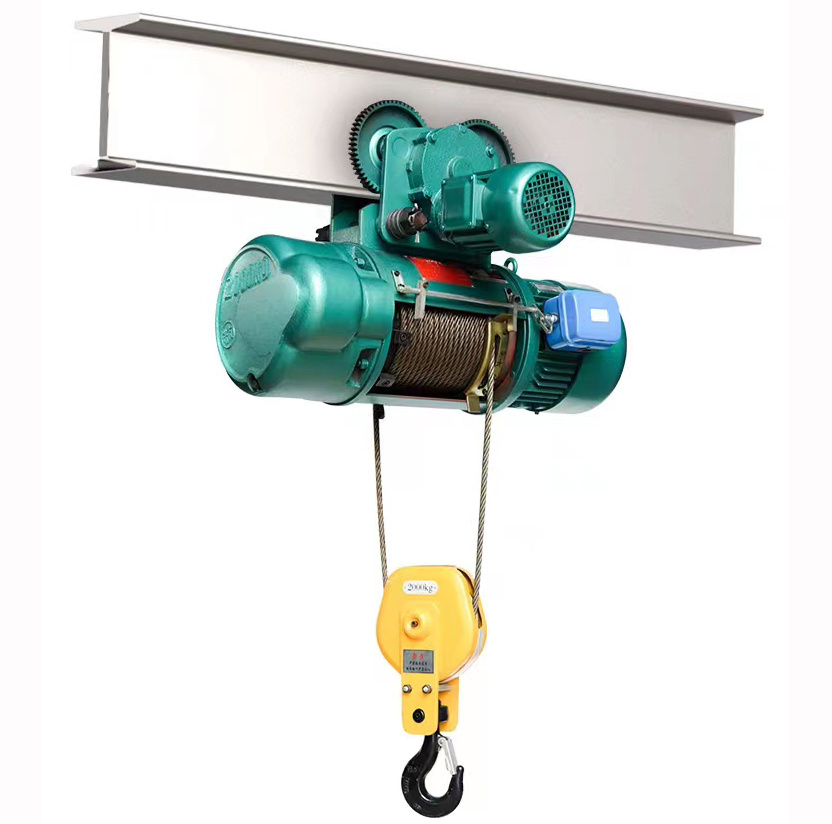

CD1 electric crane winch motor electronic hoist 1 ton to 5 ton
CD1-Electric hoist Introduction
CD1 wire-rope electric hoist is a kind of small-lifting equipment, it can be mounted on single beam overhead crane ,gantry cranes, electric hoist as only one normal speed which can satisfy normal application, It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.
CD1-Electric hoist Parameter
|
Model |
0.25TON |
0.5TON |
1TON |
2TON |
3TON |
5TON |
10TON |
|
|
Capacity ton |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
|
Standard lift m |
3-9 |
6-12 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
|
|
Lifting Height m/min |
8 |
8 |
8 |
8 |
8 |
8 |
7 |
|
|
Running Speed m/min |
20/30 |
|||||||
|
Wire Rope type |
6*19-3.6 |
6*37-4.8-180 |
6*37-7.4-180 |
6*37-11-155 |
6*37-13-170 |
6*37-15-200 |
6*37-15-200 |
|
|
I beam track type |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
25a-63c |
28a-63c |
|
|
Loop track minimum Radius m |
0.8 |
1.5 |
1.5-4 |
2-4 |
2-4 |
2.5-5 |
3.5-9 |
|
|
Voltage V |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|
|
Frequency HZ |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
Phase |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
CD1-Electric hoist feature and advantage
Reducer
Use level 3 fixed axis helical gear transmission mechanism, gear and gear axle has been made from heat treated alloy steel. box, box cover is made from high quality cast iron, sealing is good. Reducer, loading and unloading is very convenient.
Control box
adopted to cut off the main circuit in case of an emergency, with up and down stroke protection fire stop device. Ensure the safe operation of electric hoist electrical components life is long, use only reliable.
Steel wire rope
The GB1102-74 type (6 * 37 + 1) hoisting wire rope, it ensures the durable.
Cone type motor
Hoisting machine adopts prototype is longer than the starting torque rotor asynchronous motor, without additional brake. Motor load duration rate was 25%, the use of class B or class F insulation, electrical protection grade IP44 - IP54.
Push button switch
Hand type is light and agile, have a rope and the wireless remote control operation in two ways.
CD1-Electric hoist working condition
Model CD1 Electric Wire rope Hoist has only one normal speed,which can satisfy normal application.Model MD1 Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools,etc.
