Quick Details
-
Brand Name:
-
CATCH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1100*1000*2200
-
Weight (KG):
-
650
-
Product name:
-

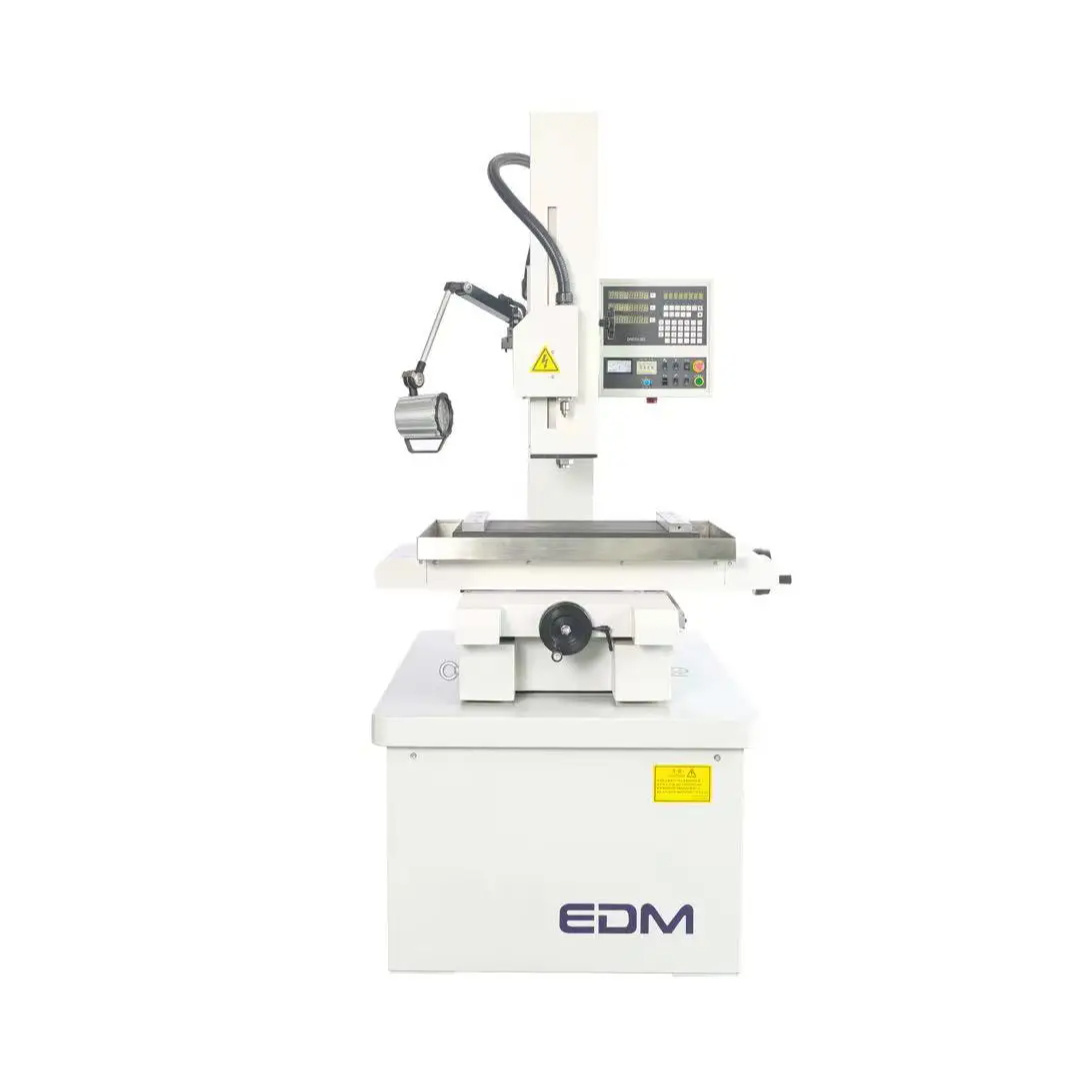

EDM Drilling Machine
-
Application:
-
Drilling deep and small holes
-
Function:
-
Metal Drilling
-
Worktable Dimension:
-
550*360
-
Travels X*Y*Z:
-
400*300*(380+250)
-
Max Load on Work table:
-
150kg
-
Max Pressure of Working Water:
-
8MPa
-
Flume dimension:
-
700*480mm
-
Max Work Current:
-
30A
-
Electrode Diameter:
-
0.3-3.0mm
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2023
-
Brand Name:
-
CATCH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1100*1000*2200
-
Weight (KG):
-
650
-
Product name:
-
EDM Drilling Machine
-
Application:
-
Drilling deep and small holes
-
Function:
-
Metal Drilling
-
Worktable Dimension:
-
550*360
-
Travels X*Y*Z:
-
400*300*(380+250)
-
Max Load on Work table:
-
150kg
-
Max Pressure of Working Water:
-
8MPa
-
Flume dimension:
-
700*480mm
-
Max Work Current:
-
30A
-
Electrode Diameter:
-
0.3-3.0mm
Product Description
Features
Ø Process deep holes of diameter from Ф0.3-Ф3mm rapidly.
Ø Servo control system realizes speedy motion.
Ø High accuracy movement by linear guides of Z/W axis.
Ø X/Y/Z /W four axes adopt high accuracy ball screws for fast and agile movement.
Ø Guide Travels linear guide
Ø Fast approaching, quickly out of machining
Ø Three axes DRO with linear scales, auto depth control helps blind holes process.
Ø One touch, one hole made. (optional)
Ø Servo control system realizes speedy motion.
Ø High accuracy movement by linear guides of Z/W axis.
Ø X/Y/Z /W four axes adopt high accuracy ball screws for fast and agile movement.
Ø Guide Travels linear guide
Ø Fast approaching, quickly out of machining
Ø Three axes DRO with linear scales, auto depth control helps blind holes process.
Ø One touch, one hole made. (optional)
Specification
|
item
|
value
|
|
CNC or Not
|
Normal
|
|
Condition
|
New
|
|
Machine Type
|
Drill EDM
|
|
Brand Name
|
CATCH
|
|
Voltage
|
380V
|
|
Dimension(L*W*H)
|
1100*1000*2200
|
|
Weight (KG)
|
650
|
|
Showroom Location
|
None
|
|
Product name
|
EDM Drilling Machine
|
|
Application
|
Drilling deep and small holes
|
|
Function
|
Metal Perforating
|
|
Worktable Dimension
|
550*360
|
|
Travels X*Y*Z
|
400*300*(380+250)
|
|
Max Load on Work table
|
150kg
|
|
Max Pressure of Working Water
|
8MPa
|
|
Flume dimension
|
700*480mm
|
|
Max Work Current
|
30A
|
|
Electrode Diameter
|
Φ0.3-Φ3.0mm
|
|
Max Process Deep
|
30-60mm/min（Φ1.0）
|
|
Max Processing Speed
|
260mm
|
|
Max Diameter to Deep Ratio
|
≥300
|
|
Workpiece Material
|
Steel/Aluminum/Copper/Carbide and Various of Conductors
|
|
Working Medium
|
Tap water/Ion free water
|
Packing & Delivery
|
Packaging Details
|
The package of High-speed Small Hole Drilling EDM / CNC EDM Super Drill Machine for Metal Perforating is plywood case.
|
|
Port
|
Shanghai
|
Carton
