IDEC IP69K 12mm Apem IP67 sealed waterproof pushbutton switch

IDEC IP69K 12mm Apem IP67 sealed waterproof pushbutton switch
The IX series combines the high qualities of the IP and IA series with a backlit switch,
a 12 mm diameter compact bushing and a flexible elastomer membrane actuator.
IX series is recommended for harsh environments and all key markets of APEM: material handling, agriculture machinery, defense, …
·Pushbutton for harsh environment
· Illuminated or non-illuminated
·Compact (12 mm bushing)
·Tactile effect
·Sealing : IP67, IP69K
·Marking on request
Electrical specifications
· Max. current/voltage rating with resistive load:
- Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles
- Silver contact (1): 2 A 28 VDC, 100,000 cycles
· Initial contact resistance : 100 mΩ max.
· Insulation resistance : 1 GΩ min. at 500 VDC
· Dielectric strength : 1,500 Vrms
· Contact bounce : 10 ms
General specification
· Panel thickness : 1.5 to 6 mm
PANEL cutting: 12.3
· Total travel : 2 mm (.078) ± 0.3 mm
· Typical operating force : 7 N ± 2 N
· Low level/mech. life : 1,000,000 cycles
· Torque : 0.5 Nm (0.6 Nm max.) applied to nut
· Soldering : 320 °C (608 °F) max. for 3 sec.
Environmental specifications
· Operating and storage temperature : -40 °C to +85 °C (-40 °F to +185 °F)
· Front panel sealing : IP67 according to IEC 60529, IP69K according to DIN 40050-9
· Shock resistance: 100 g according to IEC 512-4, test 6c
· Salt spray: IEC 512-6, test 11f
Materials
· Case : thermoplastic UL94-V0
· Actuator : silicone
· Bushing : ABS UL94 HB
· Contacts :
0 : brass, gold plated
1 : silver
· Output wires : AWG24, section 0.23 mm2 - 500 mm
· Terminal seal : epoxy

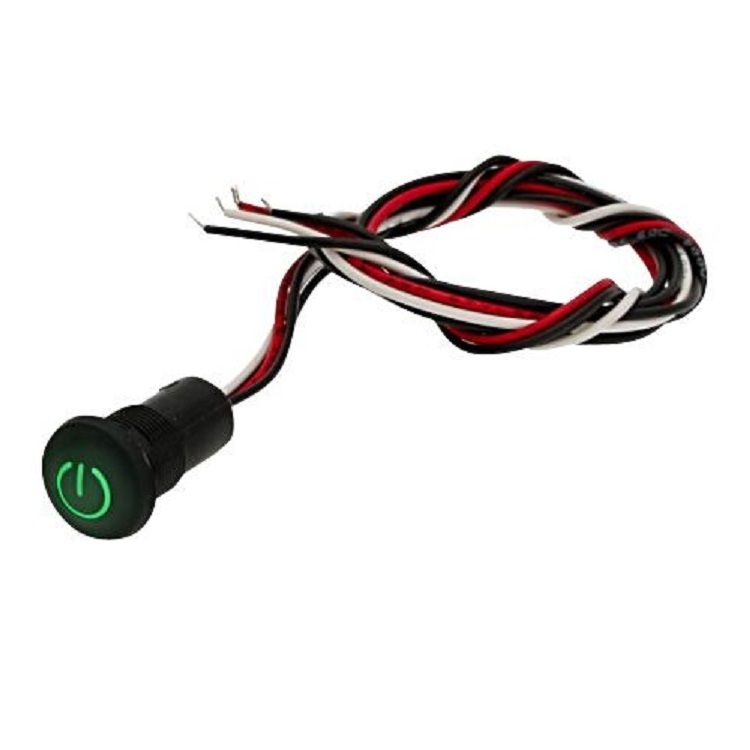

IXP3W02GRXN9 NO 500 mm gold contact black cap; ILLUMINATED green LED switch icon
Green LED voltage: 4V
IXP5W02GRXN9 1NO + 1NC
IXP3S02GRXN9 NO ; Without wire; Welding terminal; Gold contact; Black cap; Green LED Switch MARKING
IXP3W02BRXCD gold contact black hat blue LED dot MARKING
IXP3W11W silver contact blue cap white LED
IXP3W12F silver contact black cap red/green LED
IXP3W12G black cap green LED
IXP3W12M black cap button switch without LED
IXP3W13M green cap without LED
IXP3W16M red cap
IXP3W19M orange cap button switch without LED
IXP3W12R black cap red LED
IXP3W12Y black cap yellow LED
Without wire, welding terminal model:
IXP3S02BRXCD
IXP3S11W
IXP3S12F
IXP3S12G
IXP3S12M
IXP3S13M
IXP3S16M
IXP3S19M
IXP3S12R
IXP3S12Y

IXP3W02F with wire, gold-plated contacts, black cap, red/green LED
IXP3W02G gold-plated contacts; black cap; green LED ILLUMINATED
IXP3W02M black cap button switch NON-ILLUMINATED
IXP3W03M green cap UNILLUMINATED
IXP3W06M red cap
IXP3W09M orange cap button switch NON-ILLUMINATED
