Quick Details
-
Power:
-
36kw
-
Min. Lifting Height:
-
16-47m
-
Table Size:
-
1830mm*760mm
-
Weight:
-
7500 kg
-
Product name:
-
Articulating Boom Lift
-
Type:
-
boom lift
-
Load capacity:
-
230kg
-
Lifting height:
-
16-47 Meter
-
Drive speed stowed:
-
4.2km/h
-
Gradeability:
-
40%-45%
-
Drive & steer mode:
-
4X4X2
-
Engine Power(kw):
-
36kw
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EVER STAR
-
Power:
-
36kw
-
Min. Lifting Height:
-
16-47m
-
Table Size:
-
1830mm*760mm
-
Weight:
-
7500 kg
-
Product name:
-
Articulating Boom Lift
-
Type:
-
boom lift
-
Load capacity:
-
230kg
-
Lifting height:
-
16-47 Meter
-
Drive speed stowed:
-
4.2km/h
-
Gradeability:
-
40%-45%
-
Drive & steer mode:
-
4X4X2
-
Engine Power(kw):
-
36kw
Products Introduction

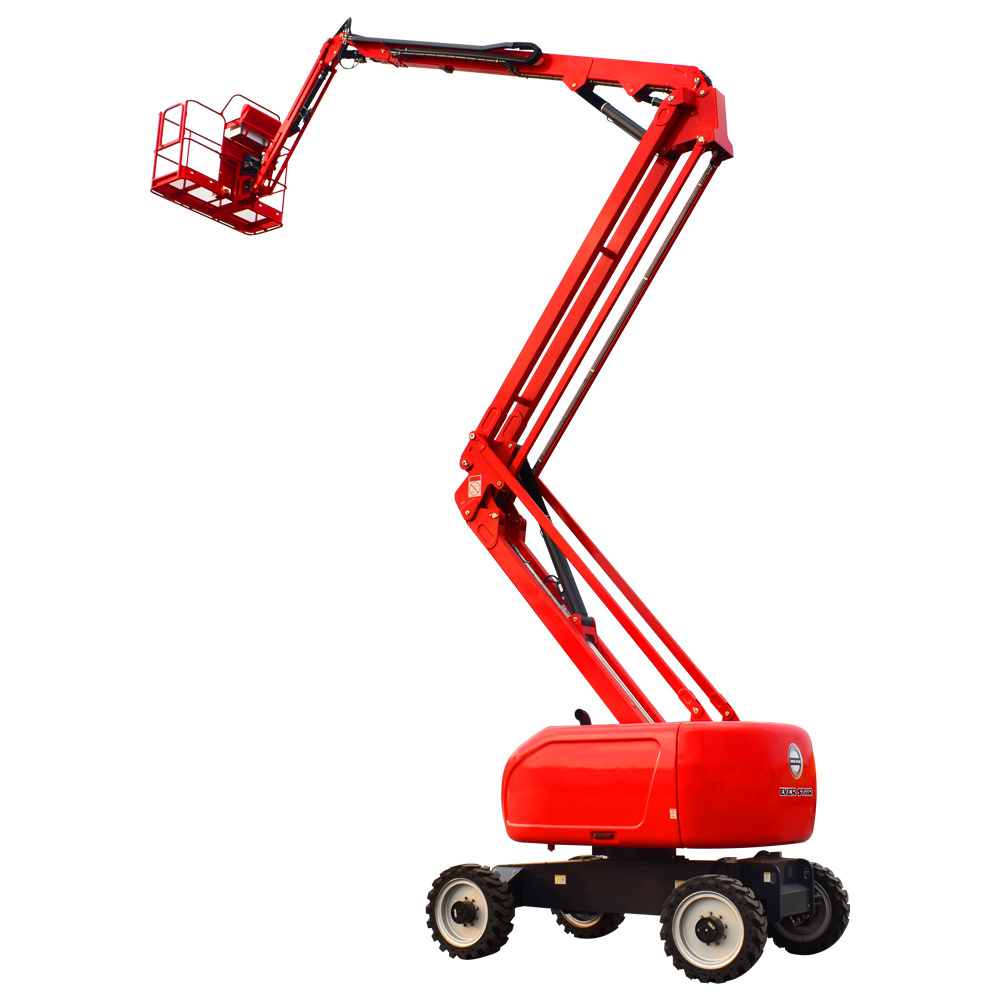

Factory direct supply of 16-47m diesel articulating boom lifts
Product Specifications
Factory direct
supply of
16-47m
diesel
articulating boom lifts
There are many product models,
please
send an inquiry
for specific prices.
16-28m Diesel Articulating Boom Lifts
|
Model
|
EAB16J
|
EAB18J
|
EAB20J
|
EAB22J
|
EAB26J
|
EAB28J
|
||||
|
Max. Working Height(m)
|
16.7
|
18
|
20.2
|
22
|
26.2
|
28
|
||||
|
Max. Platform Height(m)
|
14.7
|
16
|
18.2
|
20
|
24.2
|
26
|
||||
|
Max. Lift Capacity(kg)
|
230
|
230
|
230
|
230
|
230
|
230
|
||||
|
Max. Horizontal Outreach(m)
|
8.1
|
9.55
|
11.6
|
12
|
15.4
|
17.28
|
||||
|
Stowed Length(m)
|
6.72
|
7.26
|
8.23
|
8.54
|
10.65
|
11.7
|
||||
|
Stowed Width(m)
|
2.28
|
2.28
|
2.38
|
2.38
|
2.48
|
2.58
|
||||
|
Stowed Height(m)
|
2.47
|
2.4
|
2.5
|
2.55
|
2.85
|
2.97
|
||||
|
Platform Size
|
1.83×0.76
|
1.83×0.76
|
1.83×0.76
|
1.83×0.76
|
2.44×0.91
|
2.44×0.91
|
||||
|
Wheel base
|
2.4
|
2.4
|
2.4
|
2.4
|
3
|
3
|
||||
|
Drive speed stowed(km/h)
|
4.2
|
4.2
|
4.2
|
4.2
|
4.2
|
4.2
|
||||
|
Gradea bility
|
45%
|
45%
|
45%
|
45%
|
45%
|
40%
|
||||
|
Engine Power(kw)
|
≈36kw@2400rpm
|
|
|
|
|
≈36kw@2500rpm
|
||||
|
Fuel tank capacity(L)
|
100
|
100
|
100
|
100
|
100
|
110
|
||||
|
Weight(kg)
|
7500
|
7800
|
8800
|
9380
|
15870
|
17000
|
||||
32-47m Diesel Articulating Boom Lifts
|
Model
|
EAB32J
|
EAB40J
|
EAB47J
|
|
Max. Working Height(m)
|
32
|
40.1
|
47.5
|
|
Max. Platform Height(m)
|
30
|
38.1
|
45.5
|
|
Max. Lift Capacity(kg)
|
480
|
480
|
480
|
|
Max. Horizontal Outreach(m)
|
20.2
|
21.6
|
23
|
|
Platform Size
|
2.44×0.91
|
2.44×0.91
|
2.44×0.91
|
|
Wheel base
|
3.66
|
3.96
|
5.6
|
|
Drive speed stowed(km/h)
|
4.4
|
4.4
|
4.4
|
|
Gradea bility
|
40%
|
40%
|
40%
|
|
Engine Power(kw)
|
≈54kw@2400rpm
|
≈54kw@2400rpm
|
≈81kw@2400rpm
|
|
Fuel tank capacity(L)
|
151
|
151
|
200
|
|
Weight(kg)
|
18000
|
24500
|
26500
|
