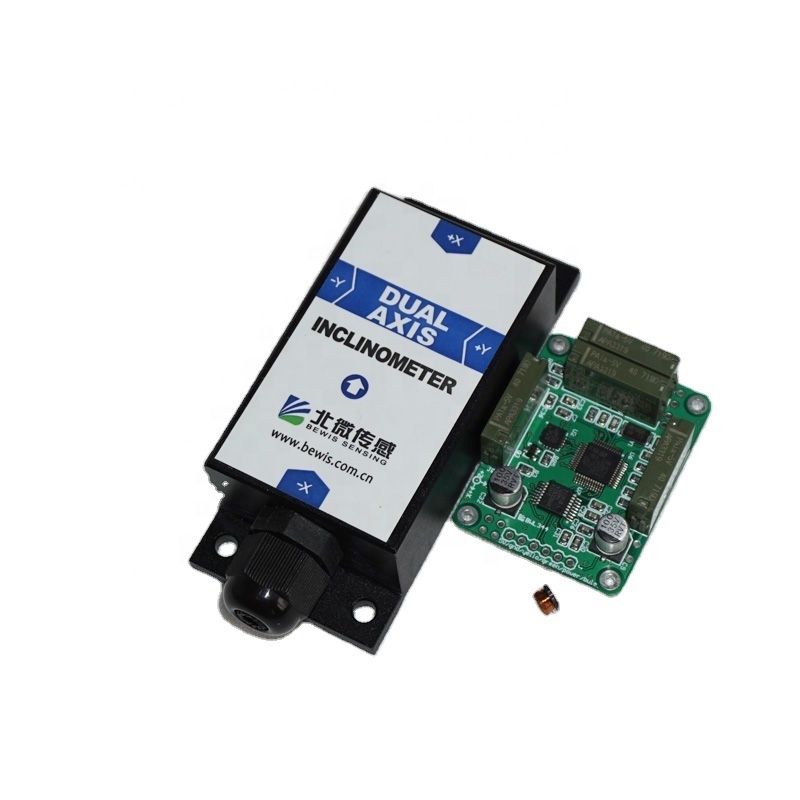

LIS341 Dual-Axis Inclination Switch
-
Resolution:
-
0.01°
-
Accuracy:
-
0.1°
-
Measurement range:
-
±90
-
Wide temperature:
-
-40℃~+85℃
-
Wide voltage input:
-
9~35V
-
Output interface:
-
RS232/TTL optional , voltage switch output
-
Shockproof:
-
>2000 gravity
-
Small size:
-
91x40x26mm customizable
-
Enclosure:
-
Full Metal Jacket, IP67 protection
Quick Details
-
Usage:
-
Position Sensor
-
Model Number:
-
LIS341
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BWSENSING
-
Name:
-
LIS341 Dual-Axis Inclination Switch
-
Resolution:
-
0.01°
-
Accuracy:
-
0.1°
-
Measurement range:
-
±90
-
Wide temperature:
-
-40℃~+85℃
-
Wide voltage input:
-
9~35V
-
Output interface:
-
RS232/TTL optional , voltage switch output
-
Shockproof:
-
>2000 gravity
-
Small size:
-
91x40x26mm customizable
-
Enclosure:
-
Full Metal Jacket, IP67 protection
Designed by Wuxi Bewis Sensing Technology LLC,
LIS341
is a Dual-Axis Inclination Switch .
Applications:
1. Hydraulic elevator platform
2. High-altitude working vehicle
3. High-voltage tower detection
4. Pan-tilt leveling
5. Direction measurement based on inclinat
| Electrical | |
| Voltage | 9~35V |
| Current consumption | 80mA(12V) |
| Operating temperature | -40℃~85℃ |
| Store temperature | -55℃~100℃ |
| Shock |
2000g, 3times/axis
|
| Performance | |||
| Parameters | Conditions | LIS341 | Units |
| Measuring range | ±90 | ° | |
| Measuring axis | X-Y | ||
|
Alarm axis |
X-Y | ||
|
Zero temperature drift |
-40~85° | ±0.01 | °/℃ |
|
Frequency response |
100 |
Hz
|
|
| Accuracy | <0.1 |
°
|
|
| Crossed sensitivity | MAX | 2 | % |
| Shockproof | 2000 gravity, 3 times/axis | ||
| Net weight | 150g | ||
| Electrical interface | |||||||||
|
Line color function |
Red |
Blu e |
Black | Green | Yellow | Brown | Orange | White | Purple |
| LIS341 |
VC C |
NC | GND |
RS232
|
RS232
|
Y
|
NC |
X
|
NC |
1. Blue and gray cables are used for factory debugging. Users are forbidden to connect them.
2. In case interface RS232 is used, the green and yellow cables represent serial ports TXD and RXD respectively;
in case interface 485 is chosen, the green and yellow cables represent 485- and 485+.
3. In case two-cable output is chosen, either brown and orange cables or white and purple cables may be
connected to external driving voltage. In case the relay is closed upon alarm, the other group of cables will
output external driving voltage. If single-cable output is chosen and the relay if closed upon the alarm in a
circuit, the voltage output on the cables will be the same as that of power supply.
