Quick Details
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
METO
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*800*1400mm
-
Hollow part volume:
-
5L
-
Power (kW):
-
12
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
Automatic:
-
Yes
-
Product name:
-
Blow Molding Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Cavity:
-
2
-
Capacity:
-
1100-1500BPH
-
Package:
-
Wooden case, Film
-
Delivery:
-
15days after drawing confirmed
-
Shipping:
-
by sea
-
Production Capacity (BPH):
-
1000
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE
Quick Details
-
Neck Diameter(mm):
-
80 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
350 mm
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
METO
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*800*1400mm
-
Hollow part volume:
-
5L
-
Power (kW):
-
12
-
Weight (KG):
-
680 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
Automatic:
-
Yes
-
Product name:
-
Blow Molding Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Cavity:
-
2
-
Capacity:
-
1100-1500BPH
-
Package:
-
Wooden case, Film
-
Delivery:
-
15days after drawing confirmed
-
Shipping:
-
by sea
-
Production Capacity (BPH):
-
1000
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE
semi auto 2cavity pet bottle blowing machine
automatic small bottled water manufacturing machine

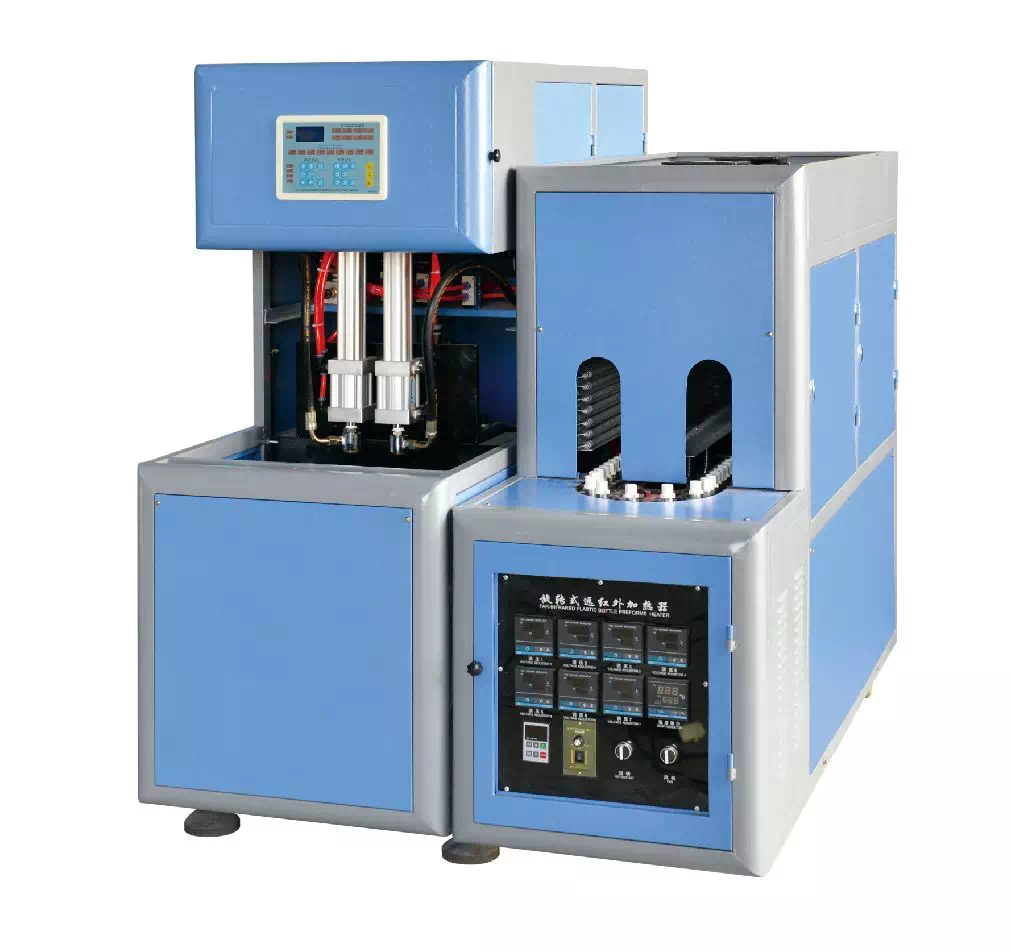

Semi-Automatic PET Bottle Machine / Blowing Machine / Blower
Summary
MT-A series Semi Automatic Stretch Blow Molding Machine , including one blower and one heater , used for the series kinds of PET bottle, such as the edible oil bottle, medicinal bottle, drinking bottle , cosmetic jars, Wild-mouth bottle and so on.
Now we have several models as below,
Technical Parameter :
|
Spec |
MT - A1 |
MT - A2 |
MT-A3 |
||
|
Bottle |
Max. Bottle volume |
ml |
2L |
5 L |
10L |
|
mm |
130 |
200 |
0 |
||
|
Max.neck outer diameter |
mm |
8 0 |
8 0 |
150 |
|
|
Max.body diameter |
mm |
120 |
1 8 0 |
400 |
|
|
Max.bottle Height |
mm |
280 |
45 0 |
580 |
|
|
Cavity No. |
|
2 |
2 |
1 |
|
|
Output |
BPH |
11 00- 15 00 |
6 00- 8 00 |
200-400 |
|
|
Kw |
12 |
18 |
25 |
||
|
Mpa |
0.8 |
0. 8 |
0.8 |
||
|
Blowing pressure |
Mpa |
3.0 |
3. 0 |
3.0 |
|
|
Chiller |
Pressure |
Mpa |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
|
Temperature |
℃ |
12-18 |
1 2 -1 8 |
1 2 -1 8 |
|
|
Flow |
L/min |
30 |
30 |
30 |
|
|
Machine |
dimension(L*W*H) |
m |
2. 0 X 0.8 X1. 4 |
2. 6 X 1.2 X1. 7 0 |
2. 9 X 1.0 X1. 7 0 |
|
Weight |
Kg |
1. 0 t |
1. 8 t |
1. 8 t |
|
(Note: for reference only, it is based on the actual work.)
Mould
KEMO Use CAD-CAM design mould, completely anticorrosive processing, process by high precision CNC machine, to achieve accurate, smooth lines capacity, the size and the design is the same as original. We also provide the free design of the mould drawing.
