Quick Details
-
Coupling:
-
AC, DC
-
Bandwidth:
-
25MHz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Model Number:
-
EM125/K-125
-
Coupling:
-
AC, DC
-
Bandwidth:
-
25MHz

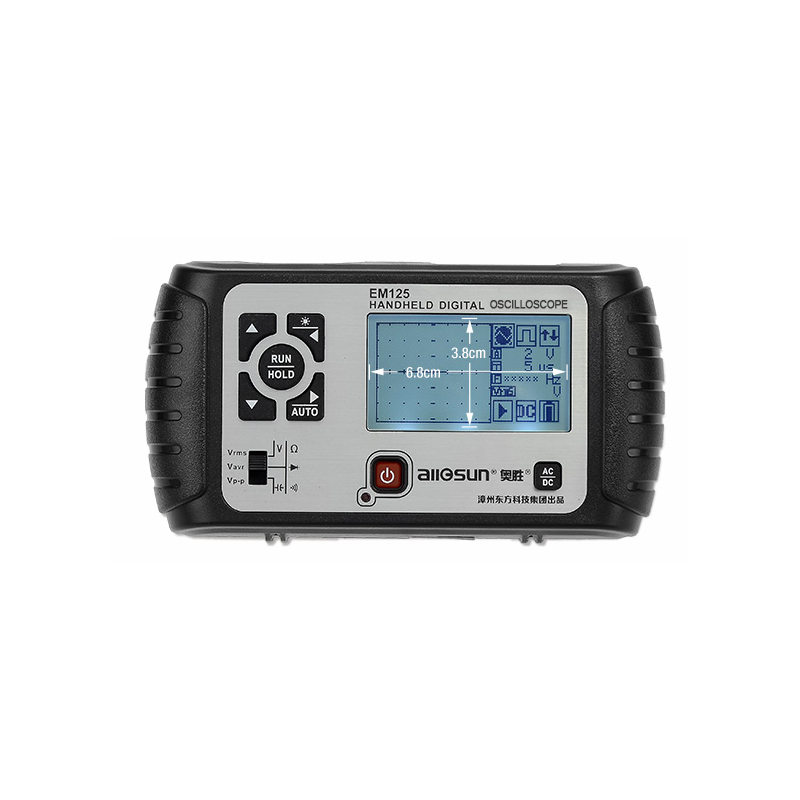

EM125/K-125 Mini Oscilloscope Handheld Digital Scopemeter
Basic information
Screen size-128(horizontal)×64(vertical);backlight:LED
Battery-3.7V Lithium battery 1200mAH
Charger- Input:100VAC-240VAC
Output:5V±10%DC 1000mA
Size-174*92*40mm
Specification of scopemeter:
|
Bandwidth(-3dB) |
25MHz |
||
|
Sample rate |
Max sample rate:100MSa/S |
||
|
Channel |
1 |
||
|
Coupling |
AC, DC |
||
|
Rising time |
< 17.5 nS |
||
|
Input independence |
1MΩ,≤20pF |
||
|
Max input voltage |
1x CAT III 300 VAC 10x, 100x CAT III 600 VAC |
||
|
Vertical resolution |
8bit |
||
|
Vertical sensitive |
50mV/div-20V/div |
||
|
Horizontal resolution |
10nS/div |
||
|
Horizontal sensitive |
10nS/div -5S/div |
||
|
Depth-sampling |
0.1K/Channel |
||
|
Trigger mode |
AUTO, Rising edge, falling edge |
||
|
Measure count |
6000 |
||
|
Input |
Max input voltage :600 Vrms CAT II, 300 Vrms CAT III |
||
|
On resistance |
25Ω(at the range of 600Ω), if less it beep |
||
|
Diode measure |
>2V shows OL(overload) <0.25 beep |
||
|
Capacity measure |
6.000nF- 6mF 7range |
||
|
Resistance measure |
600.0Ω- 60.00MΩ 6range |
||
|
Voltage measure |
6V- 600V 3 range |
||
|
DC Voltage |
6.000 V |
0.5 +8 |
|
|
AC Voltage |
6.000 V – 600.0 V |
40 Hz – 400Hz |
1.0 +10 |
|
|
|
400Hz – 2 kHz |
3.0 +10 |
|
AC+DC Voltage |
6.000 V – 600.0 V |
40 Hz – 400Hz |
1.0 +10 |
|
|
|
400Hz – 2 kHz |
3.0 +10 |
|
|
|
||
Resistance
600.0Ω 1.0 + 5
6.000 KΩ 1.0 + 5
60.00 kΩ 1.0 + 5
600.0 kΩ 1.0 + 5
6.000 MΩ 1.0 + 5
60.00 MΩ 2.0 + 5
Capacitance
6.000 nF 3.0 +8
60.00 nF 3.0 +8
600.0 nF 3.0 +8
6000 nF 3.0 +8
60.00 uF 3.0 +8
600.0 uF 3.0 +8
6.000 mF 3.0 +8
Package
1*K-125 Oscilloscope
1*Probe
1*Charger
2*Text Probe
1*User manual
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Sale a and after-sale Service:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
