Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
280 KG
-
Product name:
-

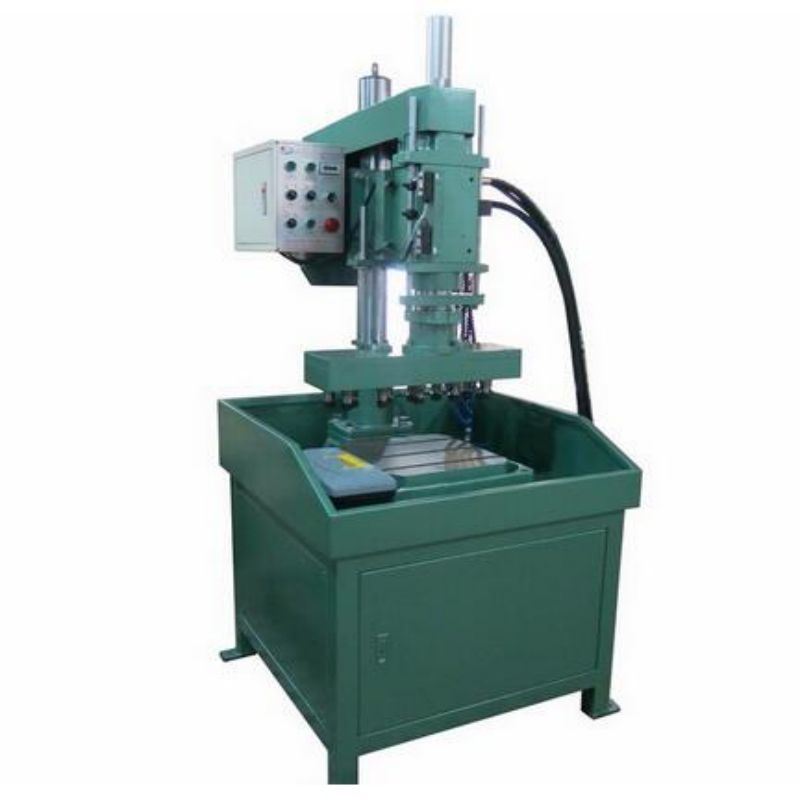

Hydraulic Type Multi Small Holes Drilling Machine on Metal Cx-15035
-
Keyword:
-
Holes Drilling Machine
-
Key word:
-
Drilling Machine on Metal Cx-15035
Quick Details
-
type:
-
EDM Drilling Machine
-
Max. Drilling Dia. (mm):
-
3 mm
-
Range of Spindle Speed(r.p.m):
-
800 - 2000 r.p.m
-
Place of Origin:
-
China
-
Weight (KG):
-
280 KG
-
Product name:
-
Hydraulic Type Multi Small Holes Drilling Machine on Metal Cx-15035
-
Keyword:
-
Holes Drilling Machine
-
Key word:
-
Drilling Machine on Metal Cx-15035
Product Description
CX-15035 is a hydrauliic drilling machine automatic, easy controled and high efficient. .It can be vertical type or horizontal type . It can be equipted with multi axis to drill multi holes at the same time. Adopt the highest standard fittings and parts,Ensuring machinery durable and anti-abrasive.We have innovative, professional and dedicated work team. Our machinery quality is reliable and after-sales service is complete.
| SPECIFICATIONS FOR DRILLING MACHINE CX-15035 | |||
| Model | CX-15035 | ||
| Max Drilling Diameter | 35mm | ||
| Spindle Travel | 150mm | ||
| Distance from Spindle Center to Column | 230mm | ||
| Distance from Spindle Nose to Working Table | 425mm | ||
| Spindle Taper | MT4 inner cone or slotted drives | ||
| Spindle Rotation Range | 800(r/min)/1400(r/min)/2000(r/min) | ||
| Working Pressure | 25-30kg | ||
| Base Size | 420*600mm | ||
| Headstock Travel | 260mm | ||
| Total Height | 1050mm/1850mm | ||
| Motor Power | 2.2kw | ||
| Cooling Pump Motor Power | 45-90w | ||
| Weight | 280-320kg | ||
