Quick Details
-
Model Number:
-
SF50706-1-3P-BB
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000
-
Input:
-
DC 20A@12V, DC 10A@24V
-
Led Color:
-
Red/ Green/ Blue/ Orange/ White
-
Function:
-
ON-OFF, (ON)-OFF, ON-OFF-ON, ON-ON-OFF, (ON)-ON-OFF, ON-ON-ON
-
Cover choice:
-
No cover, A2, A3, A8, AF, AL, BL, BW, BX
-
Switch type:
-
SPST/ SPDT/ DPST/ DPDT/ DPTT
-
Switch color:
-
Black/ customized
-
Pins:
-
3P/ 4P/ 5P/ 6P/ 8P
-
Application:
-
Marine, car, bus, Auto
-
Net weight:
-
0.016KG
-
Certification:
-
no
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNFINE
-
Model Number:
-
SF50706-1-3P-BB
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000
-
Input:
-
DC 20A@12V, DC 10A@24V
-
Led Color:
-
Red/ Green/ Blue/ Orange/ White
-
Function:
-
ON-OFF, (ON)-OFF, ON-OFF-ON, ON-ON-OFF, (ON)-ON-OFF, ON-ON-ON
-
Cover choice:
-
No cover, A2, A3, A8, AF, AL, BL, BW, BX
-
Switch type:
-
SPST/ SPDT/ DPST/ DPDT/ DPTT
-
Switch color:
-
Black/ customized
-
Pins:
-
3P/ 4P/ 5P/ 6P/ 8P
-
Application:
-
Marine, car, bus, Auto
-
Net weight:
-
0.016KG
-
Certification:
-
no
waterproof Marine accessories SPST 1 LED 12V 24V rocker switch
Product Description

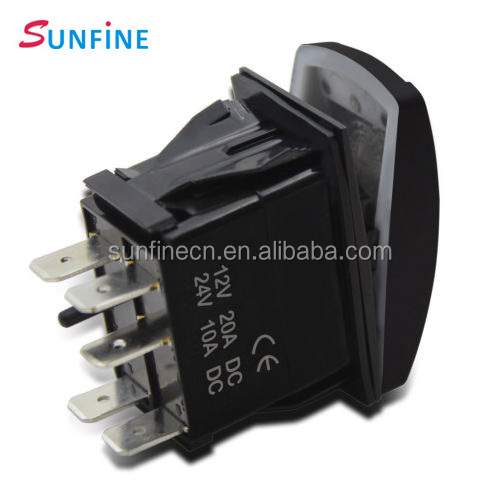

Rocker Switch with 1 LED, DC 20A@12V, DC 10A@24V
| Item No. | Item No. | Function | Type | Pin | Other Cover for option | |
| No cover, with Blue LED( BB) | with A3 cover, with Bule LED( BB) |
Normal cover (suitable for extra printing) |
Laser etch cover (suitable for laser etch printing) |
|||
| SF50706-1-3P-BB | SF50706-1 - 3P-A3BB | ON-OFF | SPST | 3 |
A2 / A3 / A8 / AF ie:SF50706-1-3P-A8BR |
AL / BL / BW / BX ie: SF50706-1-3P-ALBW |
| SF50706-1-4P-BB | SF50706-1 - 4P-A3BB | ON-OFF | SPST | 4 | ||
| SF50706-2-3P-BB | SF50706-2 - 3P-A3BB | (ON)-OFF | SPST | 3 | ||
| SF50706-2-4P-BB | SF50706-2 - 4P-A3BB | (ON)-OFF | SPST | 4 | ||
| SF50706-3-4P-BB | SF50706-3 - 4P-A3BB | ON-OFF-ON | SPDT | 4 | ||
| SF50706-3-5P-BB | SF50706-3 - 5P-A3BB | ON-OFF-ON | SPDT | 5 | ||
| SF50708-1-5P-BB | SF50708-1-5P-A3BB | ON-OFF | DPST | 5 | ||
| SF50708-1-6P-BB | SF50708-1-6P-A3BB | ON-OFF | DPST | 6 | ||
| SF50708-2-5P-BB | SF50708-2-5P-A3BB | (ON)-OFF | DPST | 5 | ||
| SF50708-2-6P-BB | SF50708-2-6P-A3BB | (ON)-OFF | DPST | 6 | ||
| SF50708-4-BB | SF50708-4-A3BB | ON-ON-OFF | DPDT | 6 | ||
| SF50708-5-BB | SF50708-5-A3BB | (ON)-ON-OFF | DPDT | 6 | ||
| SF50708-6-BB | SF50708-6-A3BB | ON-ON-ON | DPTT | 8 | ||
| SF50708-7-BB | SF50708-7-A3BB | (ON)-ON-ON | DPTT | 8 | ||
