Quick Details
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
/
-
Fork Width:
-
/
-
Overall Dimensions:
-
1620x760x2000mm
-
Weight (KG):
-
680 kg
-
Type:
-
Order Picking Truck
-
Product Name:
-
300kg Aerial Order Picker
-
Loading Capacity:
-
300kg
-
Max. Platform Height:
-
2700-4500mm
-
Platform Size:
-
600x700
-
Drive Motor:
-
2x 24V/0.4KW
-
Lift Motor:
-
24V/1.6KW
-
Battery:
-
2x 12V/120Ah
-
After-sales Service:
-
Free Spare Parts
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product
Quick Details
-
Min. Lifting Height:
-
2700-4500mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
/
-
Fork Width:
-
/
-
Overall Dimensions:
-
1620x760x2000mm
-
Weight (KG):
-
680 kg
-
Type:
-
Order Picking Truck
-
Product Name:
-
300kg Aerial Order Picker
-
Loading Capacity:
-
300kg
-
Max. Platform Height:
-
2700-4500mm
-
Platform Size:
-
600x700
-
Drive Motor:
-
2x 24V/0.4KW
-
Lift Motor:
-
24V/1.6KW
-
Battery:
-
2x 12V/120Ah
-
After-sales Service:
-
Free Spare Parts
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product

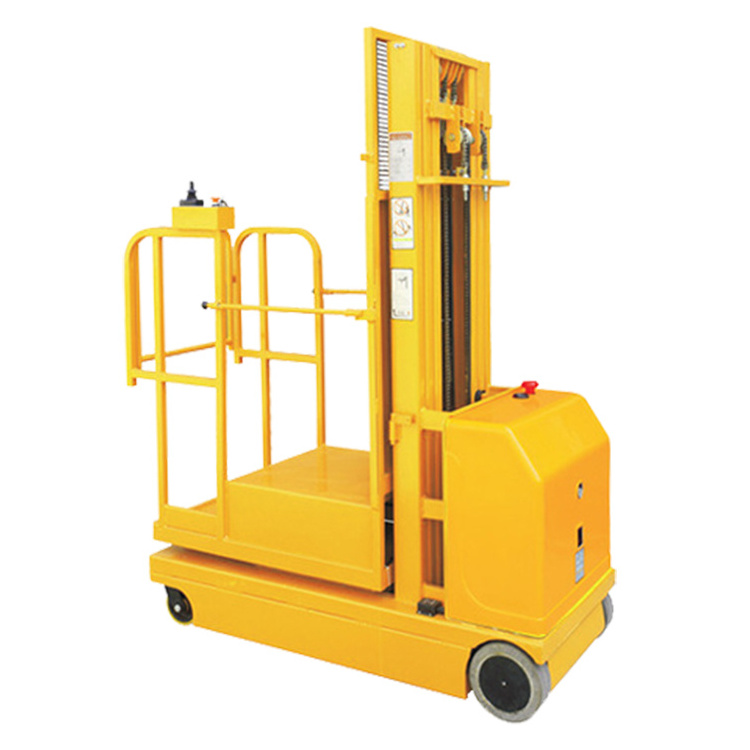

Equipmax economical type aerial order picker with both manual mobile type and self-propelled type, they are all come with high efficiency battery power.
The products with ergonomic design, compacted structure, flexible operation and safety operation advantages to ensure the excellent quality performance.
The self-propelled aerial order picker with maximum platform height from 2700mm to 4500mm which is suitable for picking up and stacking cargoes in the narrow aisle and high working condition warehouse like supermarket. The manual mobile aerial order picker is an economical option with much lower price.
Main Features
- Large cargo platform with wide applicability.
- Tilt protection system with high safety standard.
- Standard fork pocket for easy transportation.
- 0 degree turning radius with flexible operation
| 1 | Brand | EQUIPMAX | EQUIPMAX | EQUIPMAX | EQUIPMAX | |
| 2 | Model | FSEP3-2.7 | FSEP3-3.3 | FSEP3-4.0 | FSEP3-4.5 | |
| 3 | Rated Lift Capacity | kg | 300 | 300 | 300 | 300 |
| 4 | Max Platform Height | mm | 2700 | 3300 | 4000 | 4500 |
| 5 | Max Machine Height | mm | 4020 | 4900 | 5310 | 6000 |
| 6 | Ground Clearance | mm | 40 | 40 | 40 | 40 |
| 7 | Platform Size | mm | 600x700 | 600x700 | 600x700 | 600x700 |
| 8 | Max Drive Speed (Stowed) | km/h | 4 | 4 | 4 | 4 |
| 9 | Max Drive Speed (Elevated) | km/h | 1.6 | 1.6 | 1.6 | 1.6 |
| 10 | Min Turning Radius | mm | 1600 | 1600 | 1600 | 1600 |
| 11 | Max Gradeability | % | 15-20 | 15-20 | 15-20 | 15-20 |
| 12 | Driving Motor | kw | 2x0.4 | 2x0.4 | 2x0.4 | 2x0.4 |
| 13 | Lifting Motor | kw | 1.6 | 1.6 | 1.6 | 1.6 |
| 14 | Battery | V/AH | 2x12V 100AH | 2x12V 100AH | 2x12V 100AH | 2x12V 100AH |
| 15 | Charger | V/A | 24V 15A | 24V 15A | 24V 15A | 24V 15A |
| 16 | Overall Length | mm | 1530 | 1530 | 1620 | 1620 |
| 17 | Overall Width | mm | 760 | 760 | 760 | 760 |
| 18 | Overall Height | mm | 1830 | 2130 | 1840 | 2000 |
| 19 | Net Weight | kg | 430 | 450 | 660 | 680 |
