Quick Details
-
Model Number:
-
NP7
-
Specification:
-
110mm-800mm
-
Length:
-
4 meters or 6 meters, 6m
-
Thickness:
-
2.3mm-57.3mm
-
Standard:
-
ISO9001
-
Color:
-
Black
-
Usage:
-
Drain water
-
Certification:
-
ISO9001
-
Application:
-
Water Drainage
-
Size:
-
Custom Size Accepted
-
Connection:
-
socket, flange, butt fusion
-
Reinforcement:
-
High Strength
-
Lifespan:
-
50 Years Underground
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
NETE
-
Model Number:
-
NP7
-
Specification:
-
110mm-800mm
-
Length:
-
4 meters or 6 meters, 6m
-
Thickness:
-
2.3mm-57.3mm
-
Standard:
-
ISO9001
-
Color:
-
Black
-
Usage:
-
Drain water
-
Certification:
-
ISO9001
-
Application:
-
Water Drainage
-
Size:
-
Custom Size Accepted
-
Connection:
-
socket, flange, butt fusion
-
Reinforcement:
-
High Strength
-
Lifespan:
-
50 Years Underground
Product Description

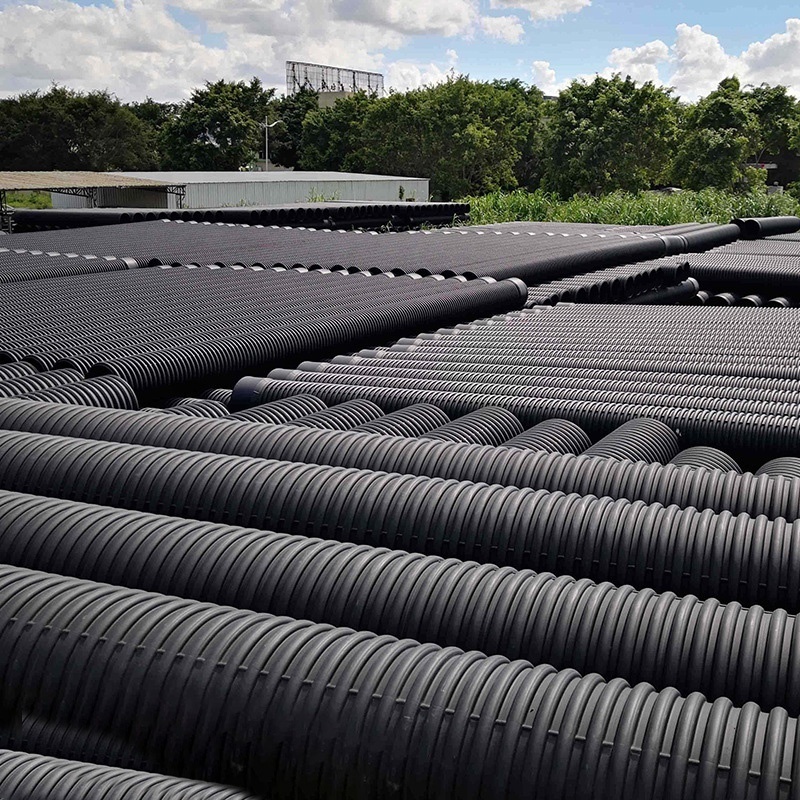

hdpe double wall corrugated PE drainage pipe dwc hdpe plastic culvert pipe
HDPE corrugated pipe with double wall is mainly made of HDPE extruded from inner and outer shaping disposable, smooth inner wall, trapezoid corrugate, there is hollow plastic pipe between walls. The product has many advantages of stiffness, high strength, light weight, sound insulation, damping, higher stability, long time work life, well bend, high strength of pressurization. It can be put in the uneven road, good tightness, shortcut construction.
hdpe double wall corrugated PE drainage pipe dwc hdpe plastic culvert pipe
Applications: widely used in highway,railway basement,subway project, landfill,tunnel, Green belt stadium and other drainage area in slope protection for high water content.
Specification : inner/outer D￠90/104mm,￠93/104mm,￠95/110mm,￠100/110mm,￠125/135mm.
Advantages of
hdpe double wall corrugated PE drainage pipe dwc hdpe plastic culvert pipe
:
1. High density, good compression resistance and good impact resistance;
2. Good resistance of asymmetrical bedding, available being buried in the mollisol and quicksand;
3. Rubber ring connection, easy but no leakage in the joint;
4. Smooth interior wall and low friction, high flow capacity;
5. Good corrosion resistance and no environment pollution;
6. Light weight, easily transport and install, low construction cost;
7. Application: municipal sewage; rainwater discharge; floodwaters drainage; irrigation; ventilation for mine and buildings; industrial waste discharge.
Details Images
Specification
|
Pipe Physical and mechanical properties
|
|
|
||
|
Item
|
|
Request
|
||
|
Central stiffness
（KN/㎡）
|
SN2
|
≥2
|
||
|
|
SN4
|
≥4
|
||
|
|
SN6.3
|
≥6.3
|
||
|
|
SN8
|
≥8
|
||
|
|
SN12.5
|
≥12.5
|
||
|
Impact performance（TIR）%
|
|
Smooth,no bending,cracking and separation of the two walls
|
||
|
Flexible ring index
|
|
No bubble,no separation and cracking
|
||
|
Oven test
|
|
≤4
|
||
|
Creepage rate
|
|
|
||
